Tractor · 2016Unverified

Massey Ferguson 2605H

Name: Massey Ferguson 2605H
Brand: Massey Ferguson

Massey Ferguson 2605H — Utility tractor · 55 hp. Reference specifications; pending source verification.

The Massey Ferguson 2605H is a compact tractor with a rated output of 55 hp. Introduced in 2016, it features a 3-cylinder turbocharged intercooled diesel liquid-cooled engine, which powers four-wheel drive through an 8-speed gearbox. The tractor's listed weight ranges from 4894 to 5394 pounds, and it is suitable for tasks covering areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

55 hp

Weight

4894 to 5394 pounds

Catalogue coverage

Variants represented

Richest spec table

63 rows

Recorded power

55 hp

Recorded weight

2219 kg

Transmissions

8-speed gear

Production years

2016

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Utility tractorReference

Original price was $20,336 in 2017Reference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Simpson 2.6L 3-cyl dieselReference

Fuel tank54.9 LReference

Engine (gross)41.0 kWReference

SimpsonReference

turbocharged intercooled dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement2.6 LReference

Bore/Stroke93 x 127 mmReference

EmissionsTier IVReference

Emission controlexhaust gas recirculation with diesel oxidation catalyst (DOC) (EGR)Reference

Power (gross)41.0 kWReference

Fuel systemelectronic high-pressure common railReference

Rated RPM2000Reference

StarterelectricReference

Starter volts12Reference

Transmission

8-speed gearReference

8-speed sync shuttleReference

TypegearReference

Gears8 forward and 2 reverseReference

Typesync shuttleReference

Gears8 forward and reverseReference

PTO & Hydraulics

PTO (claimed)34.3 kWReference

Typeopen centerReference

Valves1Reference

Pump flow40.1 lpmReference

Total flow59.4 lpmReference

Rear TypeII/IReference

Rear lift (at 24"/610mm)1249 kgReference

2WD Rear PTOliveReference

4WD Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Dimensions

2WD Wheelbase204 cmReference

4WD Wheelbase207 cmReference

Weight4894 to 5394 poundsReference

Front tire6.00x16Reference

2WD Rear tire13.6x28Reference

2WD Standard tires (ag)Front: 6.00x16. Rear: 13.6x28Reference

4WD Standard tires (ag)Front: 9.5x24. Rear: 14.9x28Reference

2WD Optional tires (ag)Front: 7.5x16. Rear: 16.6x28Reference

4WD Industrial front10.5/80-18Reference

4WD Industrial rear14.9x24Reference

4WD Industrial front12.5/80-18Reference

4WD Industrial rear16.9x24Reference

2WD Length350 cmReference

4WD Length353 cmReference

Width168 cmReference

Height231 cmReference

2WD Weight2219 kgReference

4WD Weight2446 kgReference

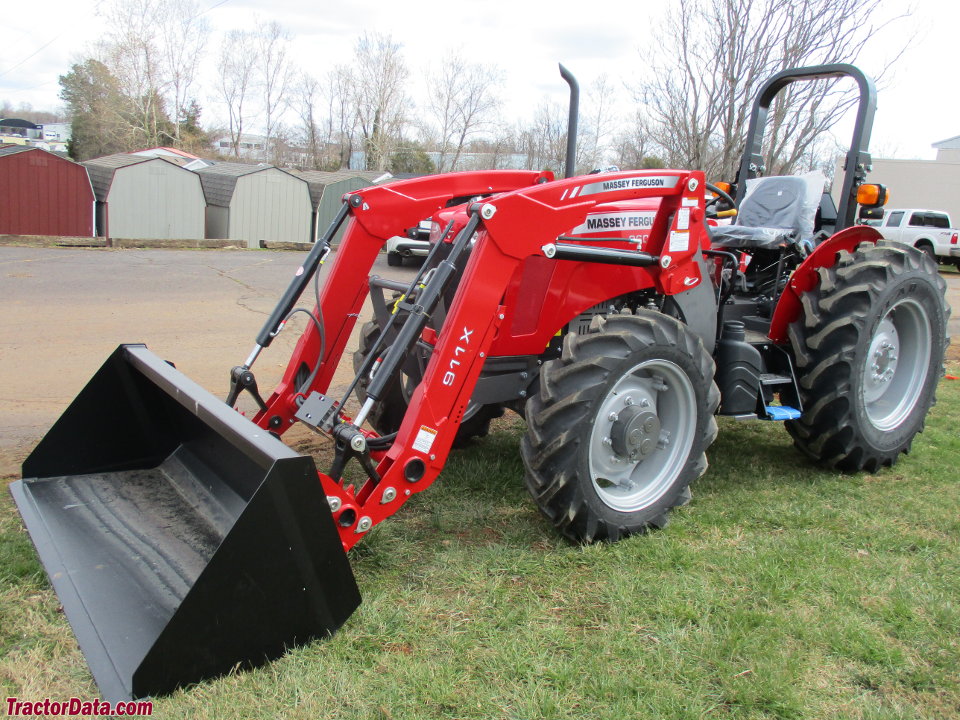

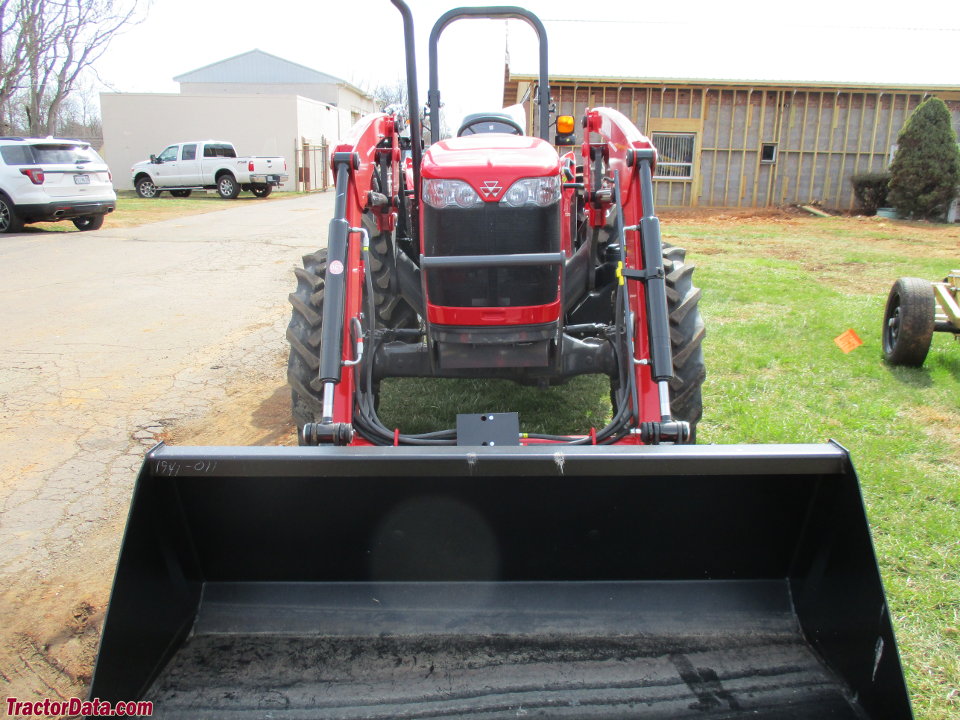

Massey Ferguson 2605H attachments

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

Massey Ferguson L135E loaderReference

Massey Ferguson 911X loaderReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
