Tractor · 2007Unverified

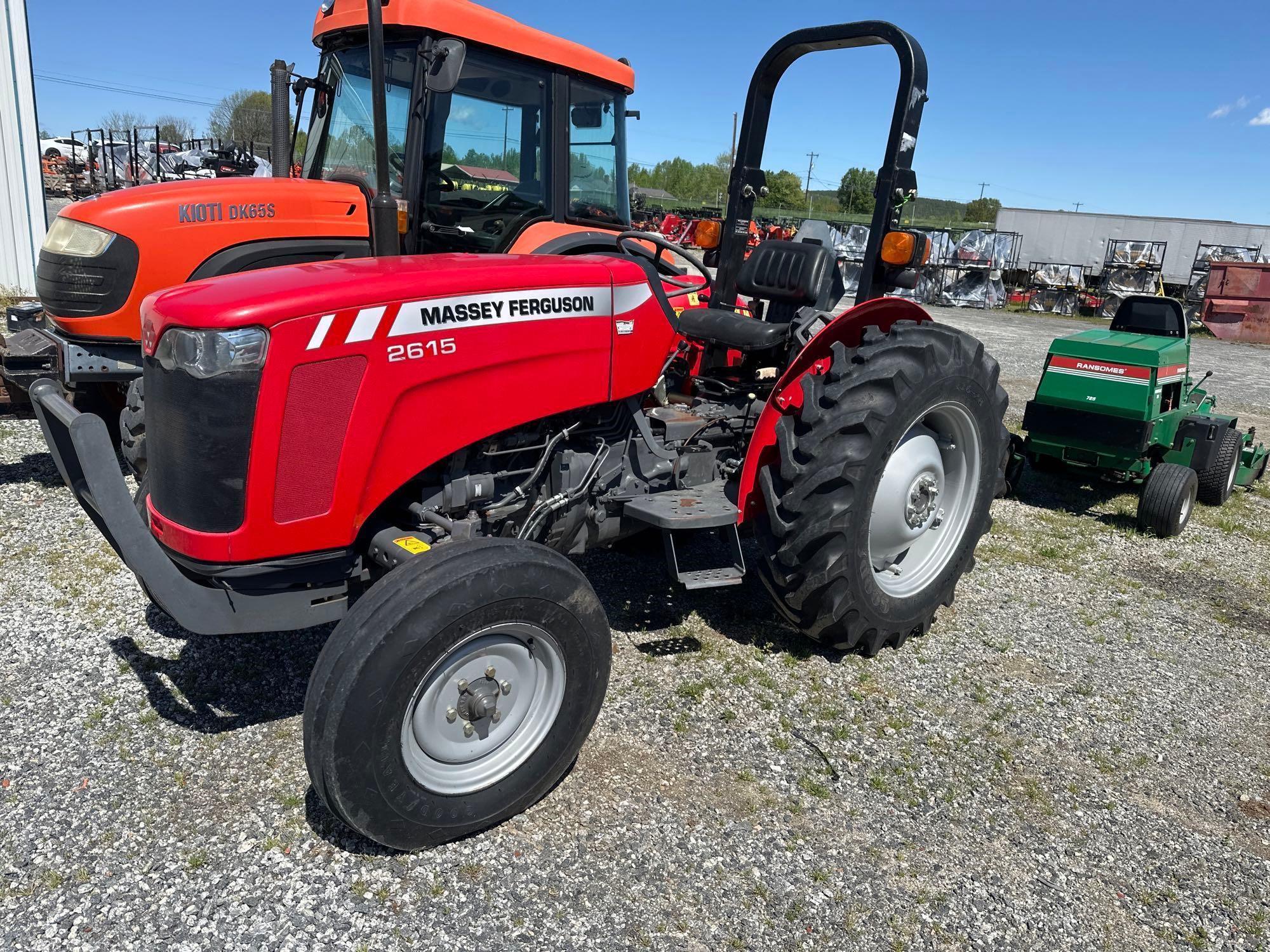

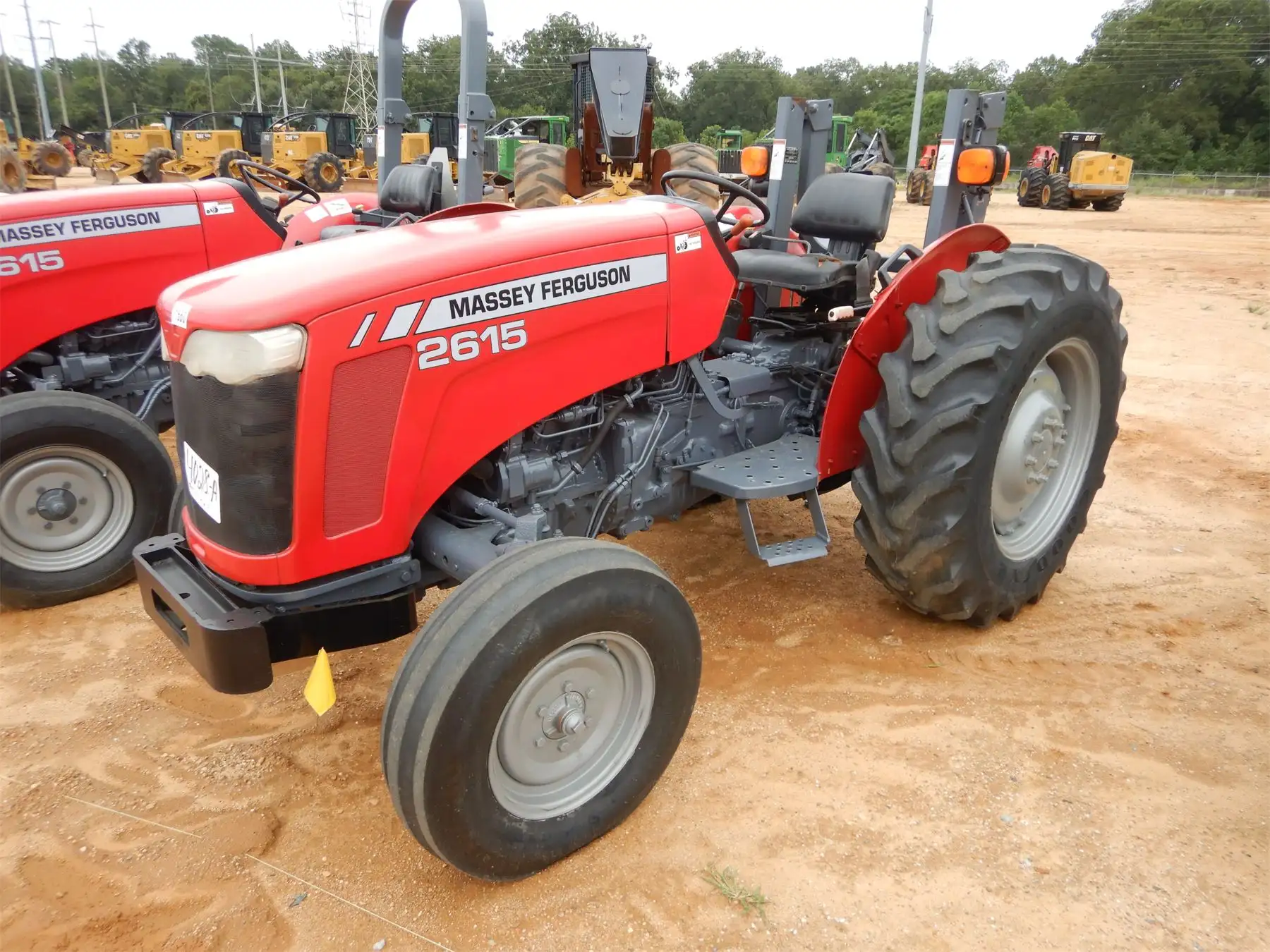

Massey Ferguson 2615
Massey Ferguson 2615 — Utility tractor · 49 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
49 hp
Weight
4365 to 4820 pounds
Hover a source tag to verify
Overview
DistributorMassey Ferguson (a part of AGCO)Reference
ManufacturerTAFEReference
Utility tractorReference
Original price was $14,368 in 2009Reference
Two- or four-wheel driveReference
Final drivesdirect drive (8x2)Reference
Final drivesoutboard planetary (shuttle)Reference
Power steeringReference
Wet disc brakesReference
Open platform with two-post folding ROPS.Reference
Engine
Simpson 2.7L 3-cyl dieselReference
Fuel tank42.0 LReference
Engine (gross)36.5 kWReference
Simpson SJ327EReference
dieselReference
3-cylinderReference
liquid-cooledReference
In certain markets the 2615 was advertised with the S325 2.5L engine. In North America, the tractor was sold with the 2.7L engine.Reference
Displacement2.7 LReference
Bore/Stroke95 x 127 mmReference
EmissionsTier IIReference
Power (gross)36.5 kWReference
Pre-heatingthermostartReference
Rated RPM2250Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
TransmissionCenterShiftReference
Gears8 forward and 2 reverseReference
Four gears, plus reverse, with high and low rangesReference
TransmissionSynchroShuttleReference
Gears8 forward and reverseReference
Four synchronized gears in two ranges with synchronized shuttle.Reference
PTO & Hydraulics
PTO (claimed)31.3 kWReference
PTO (claimed)29.8 kWReference
Typeopen centerReference
Valves0 to 2Reference
Pump flow17.8 lpmReference
Pump flow41.6 lpmReference
Total flow84.8 lpmReference
Steering flow25.4 lpmReference
Rear TypeII/IReference
Controlposition and top-link draft controlReference
Rear lift (at ends)1449 kgReference
Rear Armsextendable lower links optionalReference
Rear PTOliveReference
Rear PTOindependentReference
Clutchdual stage dry (live)Reference
Clutchelectro-hydraulic wet disc (independent)Reference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1790Reference
Dimensions
2WD Wheelbase193 cmReference
4WD Wheelbase195 cmReference
Weight4365 to 4820 poundsReference
Front tire7.5-16Reference
2WD Rear tire13.6-28Reference
2WD Standard tires (ag)Front: 7.5-16. Rear: 13.6-28Reference
4WD Standard tires (ag)Front: 10.5/80-18. Rear: 13.6-28Reference
2WD Optional tires (ag)Front: 7.5-16. Rear: 14.9-28Reference
4WD Optional tires (ag)Front: 9.5-24. Rear: 14.9-28Reference
Industrial front11L15Reference
Industrial front10.5/80-18Reference
Industrial front12.5/80-18Reference
Industrial rear14.9-24Reference
Industrial rear16.9-24Reference
2WD Length327 cmReference
4WD Length330 cmReference
Height (ROPS)233 cmReference
2WD Shipping weight1979 kgReference
4WD Shipping weight2186 kgReference
Clearance (drawbar)25 cmReference
Massey Ferguson 2615 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps36Reference
Battery CCA622Reference
Battery volts12Reference
Attachment overview
Massey Ferguson L200 loaderReference
Massey Ferguson L210 loaderReference
Massey Ferguson DL250 loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
