Tractor · 2010Unverified

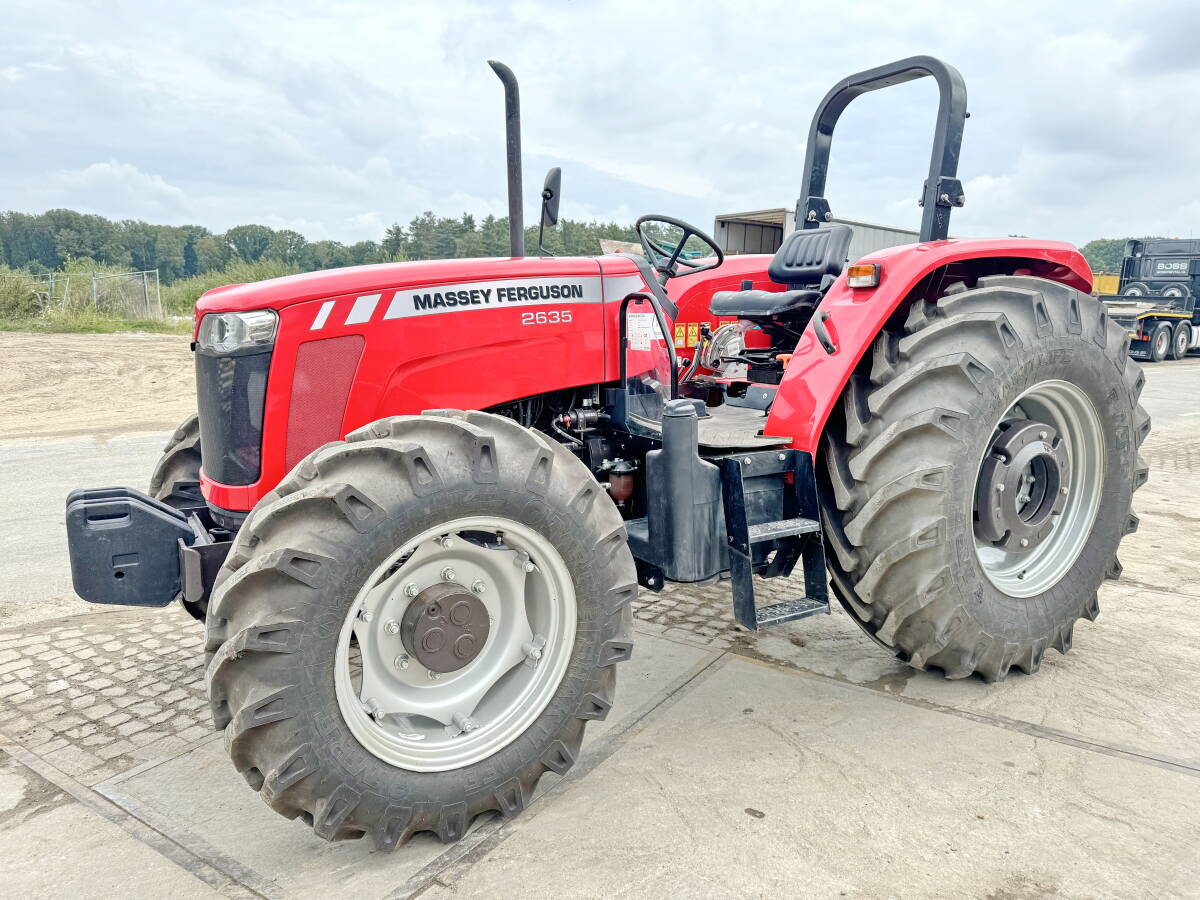

Massey Ferguson 2635

Name: Massey Ferguson 2635
Brand: Massey Ferguson

Massey Ferguson 2635 — Utility tractor · 74 hp. Reference specifications; pending source verification.

The Massey Ferguson 2635 is a tractor with a rated output of 74 hp, positioning it in the middle of its class for power. This model was manufactured from 2010 to 2018. It features a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with a hydrostatic transmission and four-wheel drive. Its listed operating weight ranges from 5357 to 5798 pounds, and is designed for use on areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

74 hp

Max power

74 hp

Weight

5357 to 5798 pounds

Catalogue coverage

Variants represented

Richest spec table

101 rows

Recorded power

74 hp

Recorded weight

2429 kg

Transmissions

8-speed

Production years

2010-2018

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorMassey Ferguson (a part of AGCO)Reference

ManufacturerTAFEReference

Utility tractorReference

Two- or four-wheel driveReference

Final drivesoutboard planetaryReference

Differential lockfoot operatedReference

Steeringhydrostatic powerReference

Wet discs brakesReference

Two-post ROPS.Reference

Engine

Simpson 3.6L 4-cyl dieselReference

Fuel tank67.0 LReference

Engine (gross)55.2 kWReference

Simpson TSJ436EReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.6 LReference

Bore/Stroke95 x 127 mmReference

EmissionsTier IIIReference

Power (gross)55.2 kWReference

Pre-heatingglow plugsReference

Rated RPM2200Reference

Fuel TypedieselReference

No of Cylinders4 CylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceTier IIIReference

Bore and stroke3.74x5.00 inchesReference

Cooling systemliquid-cooledReference

Transmission

8-speedReference

8-speed SynchroShuttleReference

TransmissionCenterShiftReference

Gears8 forward and 2 reverseReference

Clutch305mm dry discReference

Four gears, plus reverse, with high and low rangesReference

TypeSynchroShuttleReference

Gears8 forward and reverseReference

Four synchronized gears in two ranges with synchronized shuttle.Reference

Transmission TypeSync ShuttleReference

forward and reverse optionsCenterShift - 8F and 2R | SynchroShuttle - 8F and 8RReference

Wheel Drive4WDReference

Rear Axle Drive Typeoutboard planetaryReference

PTO & Hydraulics

PTO (claimed)46.2 kWReference

PTO (claimed)44.7 kWReference

Typeopen centerReference

Valves0 to 2Reference

Pump flow17.8 lpmReference

Pump flow41.6 lpmReference

Total flow86.3 lpmReference

Steering flow26.1 lpmReference

Rear TypeII/IReference

Controlposition and top-link draft controlReference

Rear lift (at ends)2050 kgReference

Rear Armsextendable lower links optionalReference

Rear PTOliveReference

Rear PTOindependent optionalReference

Clutchdual stage dry (live)Reference

Clutchelectro-hydraulic wet disc (independent)Reference

Rear PTO Type540Reference

Engine RPM540@1790Reference

Dimensions

Wheelbase205 cmReference

Weight5357 to 5798 poundsReference

Length350 cmReference

Length353 cmReference

Width185 cmReference

Height (ROPS)241 cmReference

Shipping weight2429 kgReference

Shipping weight2629 kgReference

Clearance (drawbar)34 cmReference

Massey Ferguson 2635 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps45Reference

Battery CCA622Reference

Battery volts12Reference

Total cold cranking amps622 CCAReference

Attachment overview

Massey Ferguson L200 loaderReference

Massey Ferguson L210 loaderReference

Massey Ferguson L250 loaderReference

The L200 and quick-connect L210 loaders are compatible with 2WD models. The L250 is compatible with 4WD models.Reference

General

Make & ModelTAFEReference

Rollover protective structureTwo-post ROPS.Reference

Capacities

Capacity220 ciReference

Power

Max Power74 hpReference

PTO

PTO Power62 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed540@1,790 RPMReference

Steering & brakes

Brakeswet discsReference

Steering typehydrostatic powerReference

Hydraulics

Pump Rated Output (total)22.8 gpmReference

Hydraulics Typeopen centerReference

Remote Valves0 to 2 ValvesReference

Steering & Implements flow6.9 gpm (11 gpm)Reference

Rear Hitch category (SAE designation)Category II/IReference

Rear Hitch maximum lift capacity2,050.2 kgReference

Rear Hitch Sensing Typeposition and top-link draft controlReference

Dimensions & weight

Height Over ROPS241.3 cmReference

Overall Length353.1 cmReference

Drawbar clearance34.3 cmReference

Overall weight2,629.9 kgReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
