Tractor · 1975Unverified

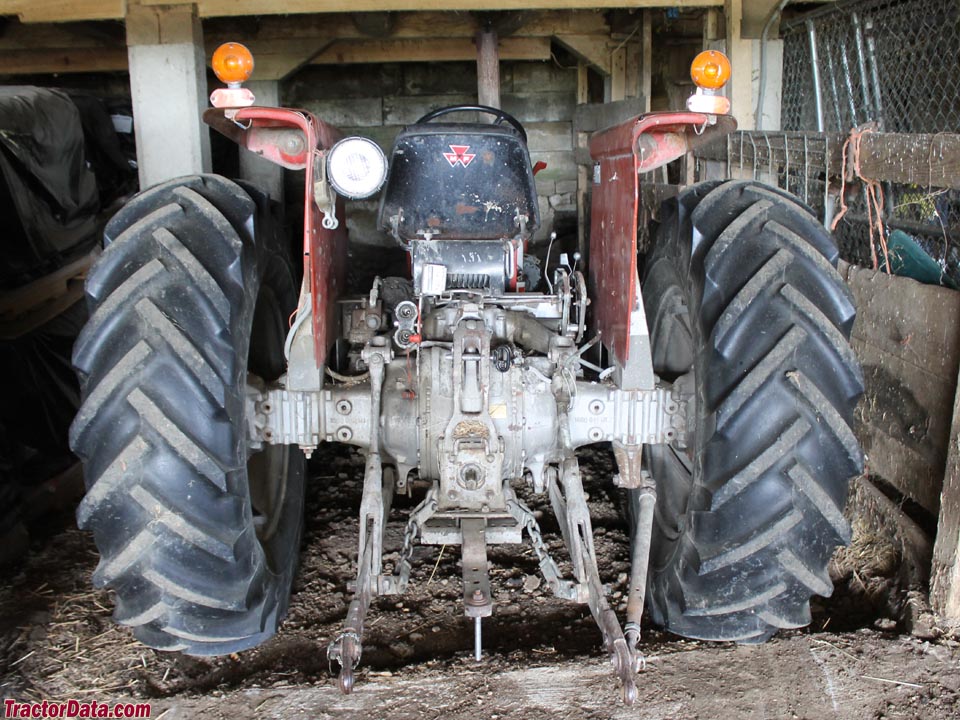

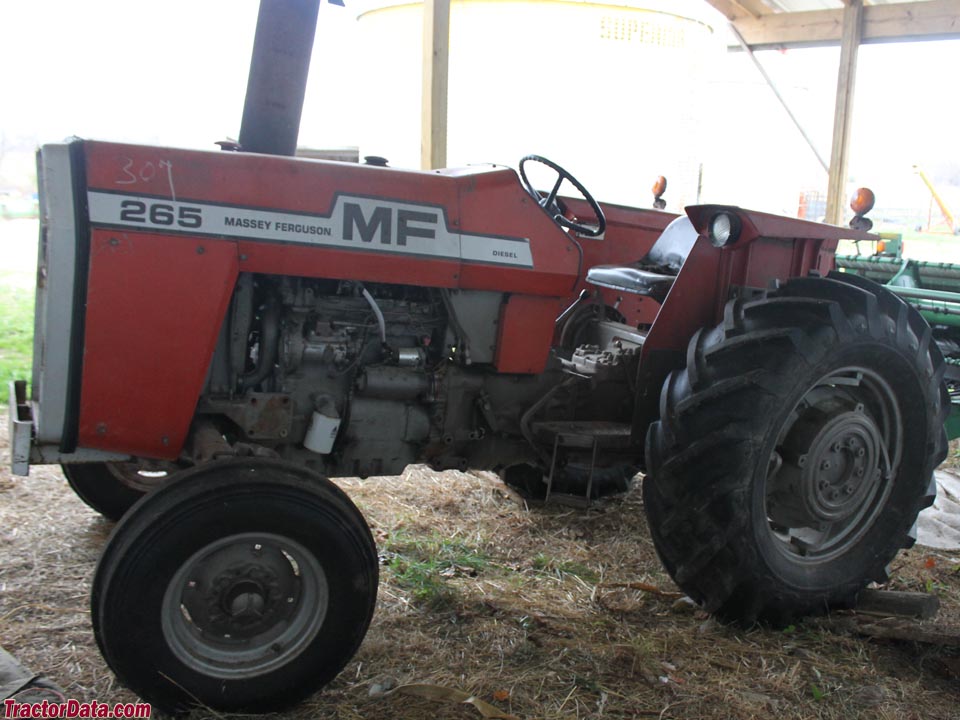

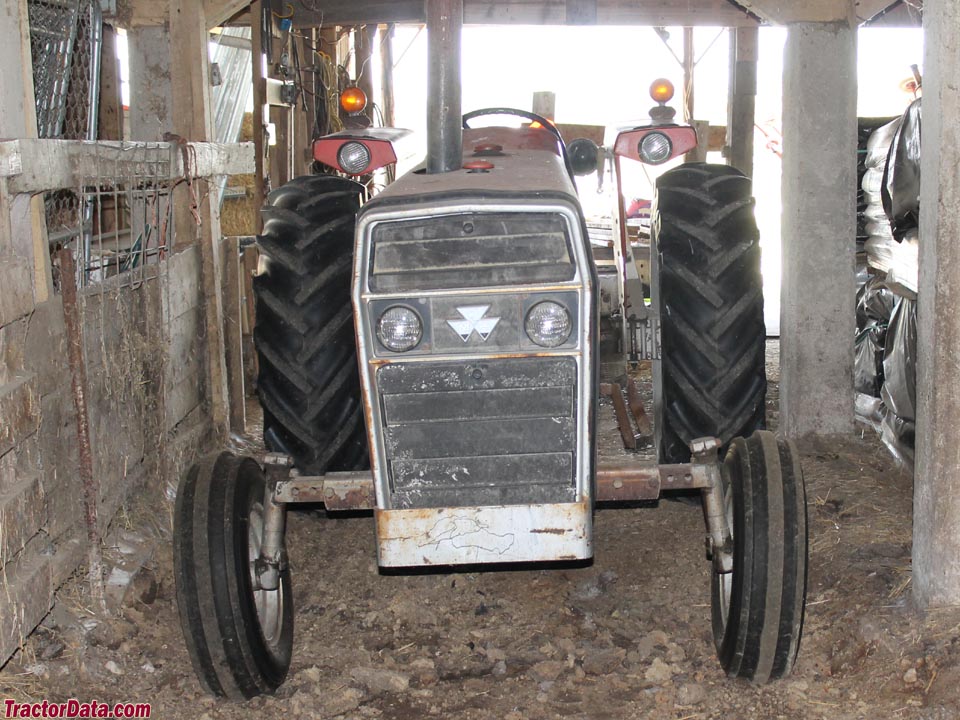

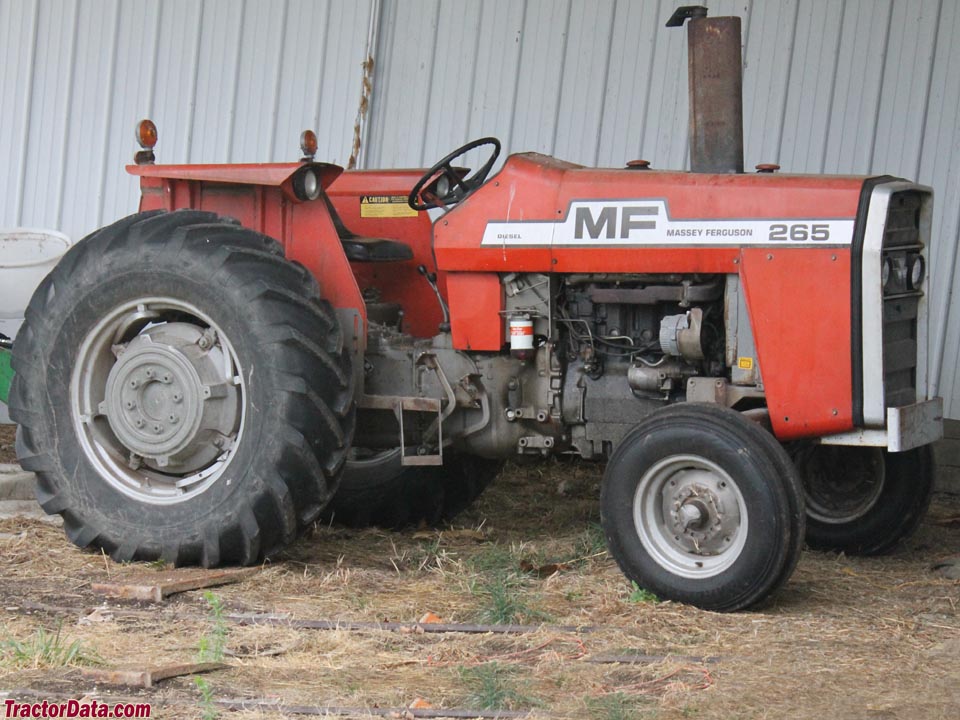

Massey Ferguson 265

Name: Massey Ferguson 265
Brand: Massey Ferguson

Massey Ferguson 265 — 200 Series · 61 hp. Reference specifications; pending source verification.

The Massey Ferguson 265 is a compact tractor with an engine rating of 61 hp. Manufactured from 1975 to 1983, it features a 4-cylinder diesel liquid-cooled engine coupled with a powershift transmission for two-wheel drive. The listed weight range for this model is 6100 to 6385 pounds. It is suited for land areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

61 hp

Max power

37.6 kW

Weight

6100 to 6385 pounds

Catalogue coverage

Variants represented

Richest spec table

150 rows

Recorded power

61 hp

Transmissions

8-speed gear

Production years

1975-1983

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Built in Detroit, Michigan, USAReference

Original price was $22,500 in 1983Reference

Two-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Differential mechanical dry disc brakesReference

Open operator station. Two-post ROPS optional. Cab optional.Reference

Engine

Perkins 3.9L 4-cyl dieselReference

Perkins 3.9L 4-cyl gasolineReference

Drawbar (claimed)37.3 kWReference

Drawbar (tested)37.6 kWReference

Perkins AD4.236Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.9 LReference

Bore/Stroke98 x 127 mmReference

Fuel use14.5 l/hourReference

Air cleanerdual dry elementsReference

Compression16:1Reference

Rated RPM2000Reference

Starter volts12Reference

Oil capacity7.6 LReference

Coolant capacity10.4 LReference

Perkins AG4.236Reference

gasolineReference

Power at rated engine speed45.3 kWReference

Max power37.6 kWReference

Fuel TypeOption 1: Diesel\\nOption 2: GasolineReference

No of CylindersOption 1: 4 cylinder\\nOption 2: 4-cylinderReference

Rated engine speedOption 1: 2,000 RPM\\nOption 2: 2,000Reference

Bore and stroke3.875x5.00 inchesReference

Compression ratio16:1Reference

Cooling systemliquid-cooledReference

Transmission

8-speed gearReference

12-speed partial power shiftReference

TypegearReference

Gears8 forward and 2 reverseReference

Four speeds, plus reverse, with high and low ranges.Reference

TransmissionMulti-PowerReference

Typepartial power shiftReference

Gears12 forward and 4 reverseReference

Three speeds in two ranges plus two-speed power shift.Reference

Transmission TypeGearReference

forward and reverse optionsGear: 8 F and 2 R\\nPartial Power Shift: 12 F and 4 RReference

PTO & Hydraulics

PTO (claimed)44.7 kWReference

PTO (tested)45.3 kWReference

Hydraulic system30.3 LReference

Capacity30.3 LReference

Pressure158.6 barReference

Valves0 to 2Reference

Pump flow37.9 lpmReference

Pump flow17.0 lpmReference

Total flow73.8 lpmReference

Steering flow18.9 lpmReference

Rear TypeII/IReference

Rear lift1859 kgReference

Rear PTOlive (two-stage clutch)Reference

Rear PTOindependent (optional)Reference

Rear PTO Type540 (1.375)Reference

Engine RPM540@1683Reference

Power at rated PTO speed40.8 kWReference

Capacities

Fuel70.0 LReference

Fuel tank70 LReference

Crankcase oil volume8 qtsReference

Dimensions

Wheelbase208 cmReference

Weight6100 to 6385 poundsReference

Front tire6.00-16Reference

Rear tire16.9-24Reference

Ag front6.00-16Reference

Ag front6.50-16Reference

Ag front7.5L-15Reference

Ag rear16.9-24Reference

Ag rear16.9-28Reference

Ag rear16.9-30Reference

Ag rear18.4-26Reference

Ag front6.50-16 (row-crop)Reference

Ag front7.5L-15 (row-crop)Reference

Ag front6.00-16 (low-proflie)Reference

Ag front6.50-16 (low-profile)Reference

Ag front7.50-10 (low-profile)Reference

Ag front9.5L-10 (low-profile)Reference

Ag rear13.6-38 (row-crop)Reference

Ag rear14.9-38 (row-crop)Reference

Ag rear15.5-38 (row-crop)Reference

Ag rear18.4-30 (row-crop)Reference

Ag rear14.9-24 (low-profile)Reference

Ag rear16.9-24 (low-profile)Reference

Ag rear18.4-16.1 (low-profile)Reference

Ag rear21.5L-16.1 (low-profile)Reference

Ground clearance40 cmReference

Ground clearance46 cmReference

Ground clearance37 cmReference

Front tread121 to 182 cmReference

Front tread132 to 193 cmReference

Rear tread142 to 228 cmReference

Rear tread139 to 220 cmReference

Shipping2766 kgReference

Operating2896 kgReference

Ballasted3719 kgReference

Massey Ferguson 265 attachments

front-end loaderReference

265 Serial Numbers

Location:Below instrument panelReference

19749A202190Reference

19759A207681Reference

19769A232539Reference

19779A254045Reference

19789A276935Reference

19799A296946Reference

19809A326169Reference

19819A339343Reference

19829A350584Reference

19839A354679Reference

FAQ: How to read a serial number table.Reference

Electrical

Charging systemalternatorReference

Charging amps37Reference

Battery volts12Reference

Battery AH95Reference

Battery size95 AHReference

Massey Ferguson 265 Height

Hood160 cmReference

Hood170 cmReference

Hood157 cmReference

Test results

Diesel 12-speed 2WDSeptember 4 - 23, 1975Link: Nebraska Tractor Test 1188 fileReference

PTO performanceReference

Fuel use14.4 l/hourReference

Fuel use12.9 l/hourReference

Drawbar performanceReference

Fuel use14.0 l/hourReference

Gear 1HL used for power test.Reference

Max pull2834 kgReference

Gear 2LH used for pull test.Reference

Speeds

With 16.9-28 rear tires.Reference

General

Make & ModelMassey FergusonReference

Rollover protective structureTwo-post ROPSReference

Country of manufacturerUSAReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540Reference

Engine Speed on Rear PTO speed540@1,683 RPMReference

Steering & brakes

BrakesDifferential mechanical dry disc brakesReference

Steering typePower steeringReference

Hydraulics

Maximum operating pressure2,300 psiReference

Remote Valves0 to 2 ValvesReference

Steering & Implements flow5 gpm (10 gpm)Reference

Rear Hitch category (SAE designation)Category II/IReference

Rear Hitch maximum lift capacity1,859.7 kgReference

Dimensions & weight

Overall Height170.9 cmReference

Wheels & tyres

Rear wheel tread range56 to 90 inchesReference

Front Wheel tread rangeOption 1: 52 to\\nOption 2: 48 toReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
