Tractor · 2010Unverified

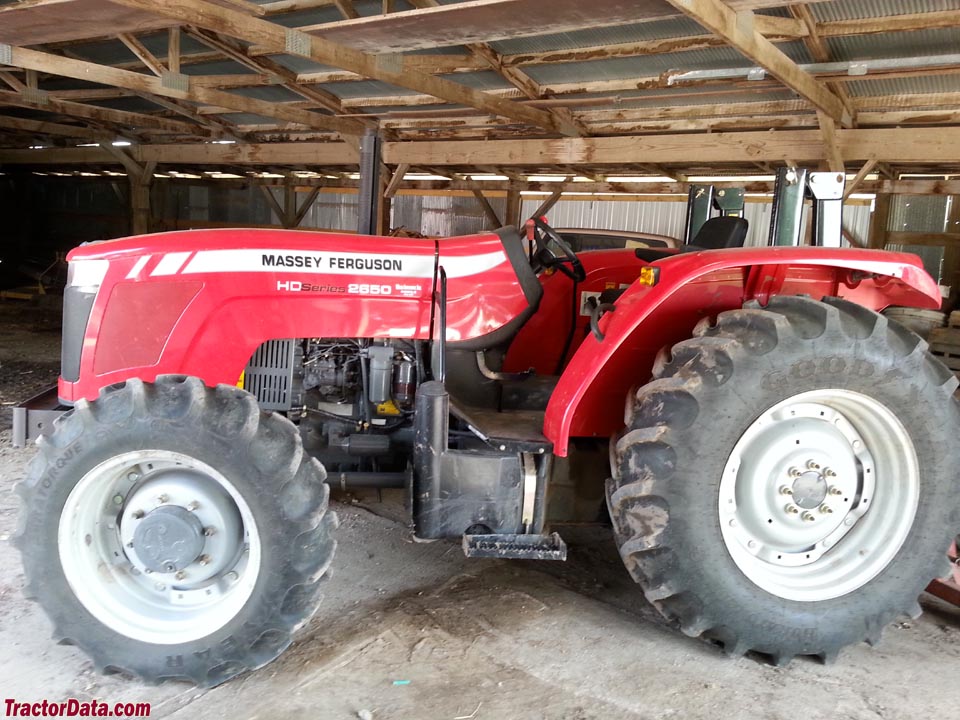

Massey Ferguson 2650 HD
Massey Ferguson 2650 HD — Utility tractor · 74 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
74 hp
Max power
50.0 kW
Weight
5578 to 7319 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in BrazilReference
Two- or four-wheel driveReference
Differential lockstandardReference
Power steeringReference
Hydraulic wet disc brakesReference
ROPS. Cab optional.Reference
Variants
2650HDutilityReference
2680LPlow-profileReference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank100.3 LReference
Engine (gross)55.2 kWReference
Perkins 1104D-44TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier IIIReference
Power (gross)55.2 kWReference
Rated RPM2200Reference
Starter volts12Reference
Max power50.0 kWReference
Power at rated engine speed46.9 kWReference
Transmission
8-speed synchronized shuttleReference
12-speed partially synchronizedReference
Typesynchronized shuttleReference
Gears8 forward and reverseReference
Clutchsingle dry discReference
Four gears with high and low ranges. Synchronized gears and forward/reverse.Reference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Synchronized between gears 2-3 and between slow-fast ranges.Reference
PTO & Hydraulics
PTO (claimed)46.2 kWReference
PTO (tested)50.0 kWReference
Typeopen centerReference
Valves1 to 3Reference
Pump flow54.9 lpmReference
Total flow85.2 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)1538 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Power at rated PTO speed49.3 kWReference
Dimensions
Wheelbase228 cmReference
Weight5578 to 7319 poundsReference
Front tire9.5L-15SLReference
Rear tire16.9-30 (2WD)Reference
Standard tires (ag)Front: 9.5L-15SL. Rear: 16.9-30 (2WD)Reference
Standard tires (ag)Front: 11.2-24. Rear: 16.9-30 (4WD)Reference
Optional tires (ag)Front: 9.5L-15SL. Rear: 18.4-30 (2WD)Reference
Optional tires (ag)Front: 9.5L-15SL. Rear: 13.6-38 (2WD)Reference
Optional tires (ag)Front: 9.5L-15SL. Rear: 15.5-38 (2WD)Reference
Optional tires (ag)Front: 12.4-24. Rear: 18.4-30 (4WD)Reference
Optional tires (ag)Front: 12.4-24. Rear: 13.6-38 (4WD)Reference
Optional tires (ag)Front: 12.4-24. Rear: 15.5-38 (4WD)Reference
Length393 cmReference
Width200 cmReference
Height (ROPS)257 cmReference
Height (cab)266 cmReference
Clearance (drawbar)37 cmReference
Shipping2530 kgReference
Shipping2859 kgReference
Shipping2990 kgReference
Shipping3319 kgReference
2WD ROPS Operating2887 kgReference
Massey Ferguson 2650 HD attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps55Reference
Cab Charging amps90Reference
Battery CCA750Reference
Battery volts12Reference
Attachment overview
Massey Ferguson DL250 loaderReference
Massey Ferguson DL260 loaderReference
Test results
Diesel 8-speed 2WDJune 17 - 25, 2010Link: Nebraska Tractor Test 1975 fileReference
PTO performanceReference
Fuel use15.5 l/hourReference
Fuel use15.9 l/hourReference
Fuel use14.4 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
