Tractor · 2010Unverified

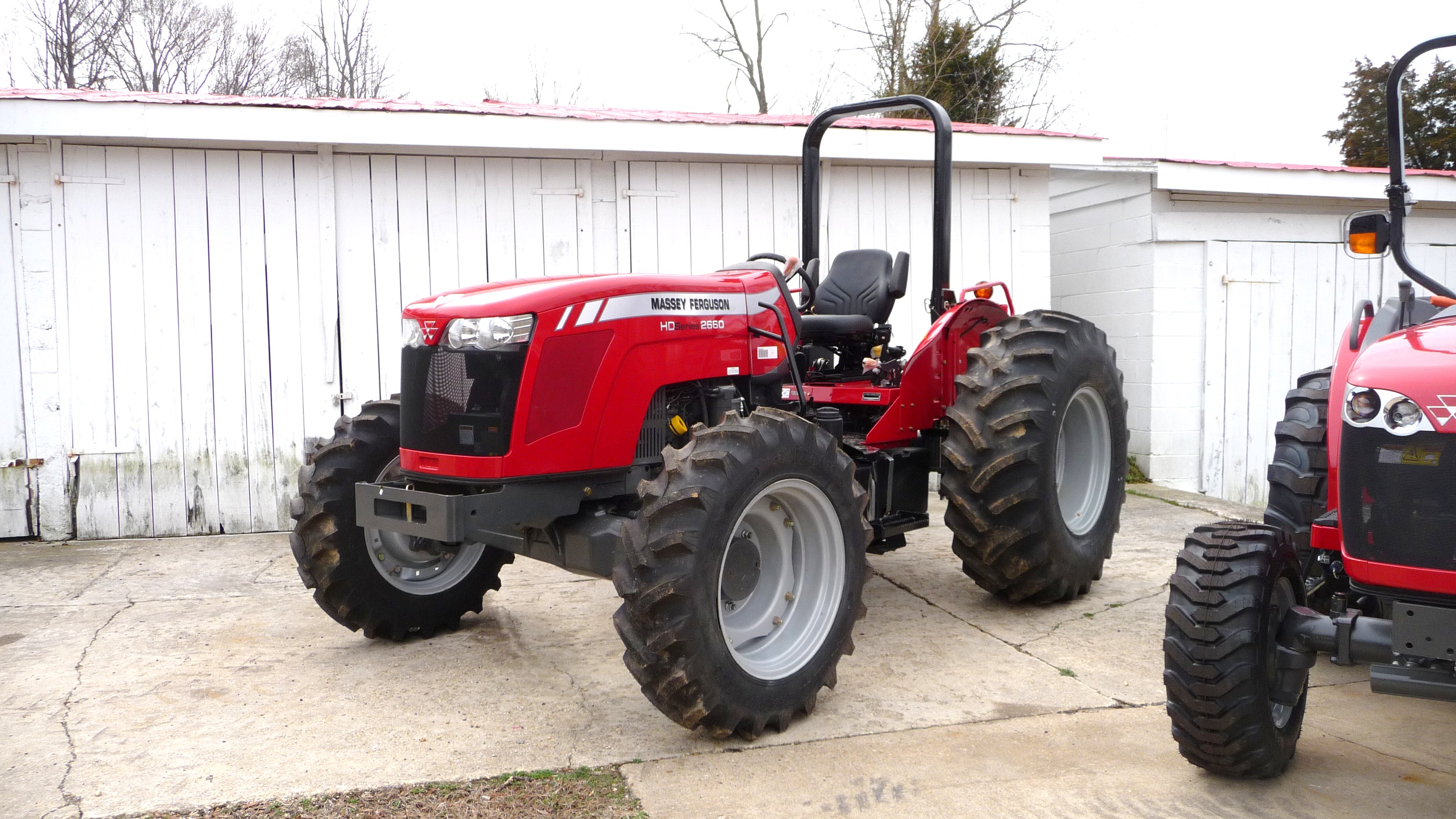

Massey Ferguson 2660LP

Name: Massey Ferguson 2660LP
Brand: Massey Ferguson

Massey Ferguson 2660LP — Orchard/Vineyard tractor · 81 hp. Reference specifications; pending source verification.

The Massey Ferguson 2660LP is a tractor model with a rated power output of 81 hp, a power figure typical of its class. Production of this model commenced in 2010. It features a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with mechanical front-wheel drive and a hydrostatic transmission. The operating weight of this model ranges from 5644 to 6217 pounds, making it suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

81 hp

Weight

5644 to 6217 pounds

Catalogue coverage

Variants represented

Richest spec table

56 rows

Recorded power

81 hp

Recorded weight

2560 kg

Transmissions

8-speed synchronized shuttle

Production years

2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Orchard/Vineyard tractorReference

Built in BrazilReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Differential lockstandardReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Perkins 4.4L 4-cyl dieselReference

Fuel tank100.3 LReference

Engine (gross)60.4 kWReference

Perkins 1104D-44TReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

EmissionsTier IIIReference

Power (gross)60.4 kWReference

Rated RPM2200Reference

Starter volts12Reference

Transmission

8-speed synchronized shuttleReference

12-speed partially synchronizedReference

Typesynchronized shuttleReference

Gears8 forward and reverseReference

Clutchsingle dry discReference

Four gears with high and low ranges. Synchronized gears and forward/reverse.Reference

Typepartially synchronizedReference

Gears12 forward and 4 reverseReference

Synchronized between gears 2-3 and between slow-fast ranges.Reference

PTO & Hydraulics

PTO (claimed)52.2 kWReference

Typeopen centerReference

Valves1 to 3Reference

Pump flow54.9 lpmReference

Total flow85.2 lpmReference

Rear TypeIIReference

Rear lift (at 24"/610mm)1538 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Dimensions

Wheelbase228 cmReference

Weight5644 to 6217 poundsReference

Front tire9.5L-15SLReference

Rear tire18.4-26 (2WD)Reference

Standard tires (ag)Front: 9.5L-15SL. Rear: 18.4-26 (2WD)Reference

Standard tires (ag)Front: 12.5/80-18 . Rear: (4WD)Reference

Optional tires (ag)Front: 12.5/80-18. Rear: 16.9-24 (4WD)Reference

Optional tires (ag)Front: 11.2-24. Rear: 18.4-26 (4WD)Reference

Length350 cmReference

Length343 cmReference

Width199 cmReference

Height (ROPS)248 cmReference

Shipping weight2560 kgReference

Shipping weight2820 kgReference

Clearance (drawbar)27 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
