Tractor · 2010Unverified

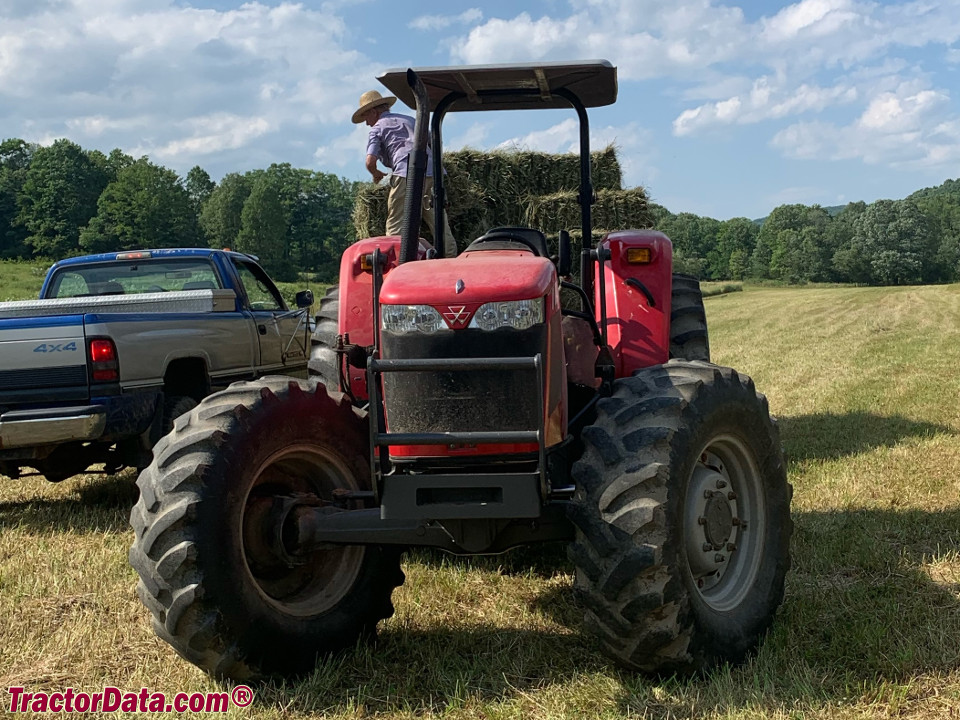

Massey Ferguson 2670 HD
Massey Ferguson 2670 HD — Utility tractor · 91 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
91 hp
Max power
62.0 kW
Weight
6812 to 8445 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Built in BrazilReference
Two- or four-wheel driveReference
Differential lockstandardReference
Power steeringReference
Hydraulic wet disc brakesReference
ROPS. Cab optional.Reference
Variants
2670HDutilityReference
2670LPlow-profileReference
2670HChigh-cropReference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank100.3 LReference
Engine (gross)67.9 kWReference
Perkins 1104D-44TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier IIIReference
Power (gross)67.9 kWReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Max power62.0 kWReference
Power at rated engine speed59.3 kWReference
Transmission
8-speed synchronized shuttleReference
12-speed partially synchronizedReference
Typesynchronized shuttleReference
Gears8 forward and reverseReference
Clutchsingle dry discReference
Four gears with high and low ranges. Synchronized gears and forward/reverse.Reference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Synchronized between gears 2-3 and between slow-fast ranges.Reference
PTO & Hydraulics
PTO (claimed)57.4 kWReference
PTO (tested)62.0 kWReference
Typeopen centerReference
Valves1 to 3Reference
Pump flow64.3 lpmReference
Total flow94.6 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)1670 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/1000 (optional)Reference
Power at rated PTO speed61.7 kWReference
Dimensions
Wheelbase228 cmReference
Weight6812 to 8445 poundsReference
Front tire10.00-16Reference
Rear tire18.4-30 (2WD)Reference
Standard tires (ag)Front: 10.00-16. Rear: 18.4-30 (2WD)Reference
Standard tires (ag)Front: 13.6-24. Rear: 18.4-30 (4WD)Reference
Standard tires (ag)Front: 320/80R34. Rear: 320/90R50 (High-Crop)Reference
Optional tires (ag)Front: 10.00-16. Rear: 18.4-34 (2WD)Reference
Optional tires (ag)Front: 10.00-16. Rear: 13.6-38 (2WD)Reference
Optional tires (ag)Front: 10.00-16. Rear: 15.5-38 (2WD)Reference
Optional tires (ag)Front: 14.9-24. Rear: 18.4-34 (4WD)Reference
Optional tires (ag)Front: 13.6-24. Rear: 13.6-38 (4WD)Reference
Optional tires (ag)Front: 11.2-28. Rear: 15.5-38 (4WD)Reference
Length393 cmReference
Width212 cmReference
Ground clearance55 cmReference
Clearance (drawbar)41 cmReference
Shipping3089 kgReference
Shipping3299 kgReference
Shipping3430 kgReference
Shipping3640 kgReference
4WD ROPS Operating3830 kgReference
Massey Ferguson 2670 HD attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps55Reference
Cab Charging amps90Reference
Battery CCA750Reference
Battery volts12Reference
Attachment overview
Massey Ferguson DL260 loaderReference
Massey Ferguson DL280 loaderReference
Massey Ferguson 2670 HD Height
284 cmReference
ROPS261 cmReference
Cab270 cmReference
Test results
Diesel 8-speed 4WDJune 22 - 25, 2010Link: Nebraska Tractor Test 1977 fileReference
PTO performanceReference
Fuel use18.5 l/hourReference
Fuel use20.4 l/hourReference
Fuel use19.7 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
