Tractor · 1978Unverified

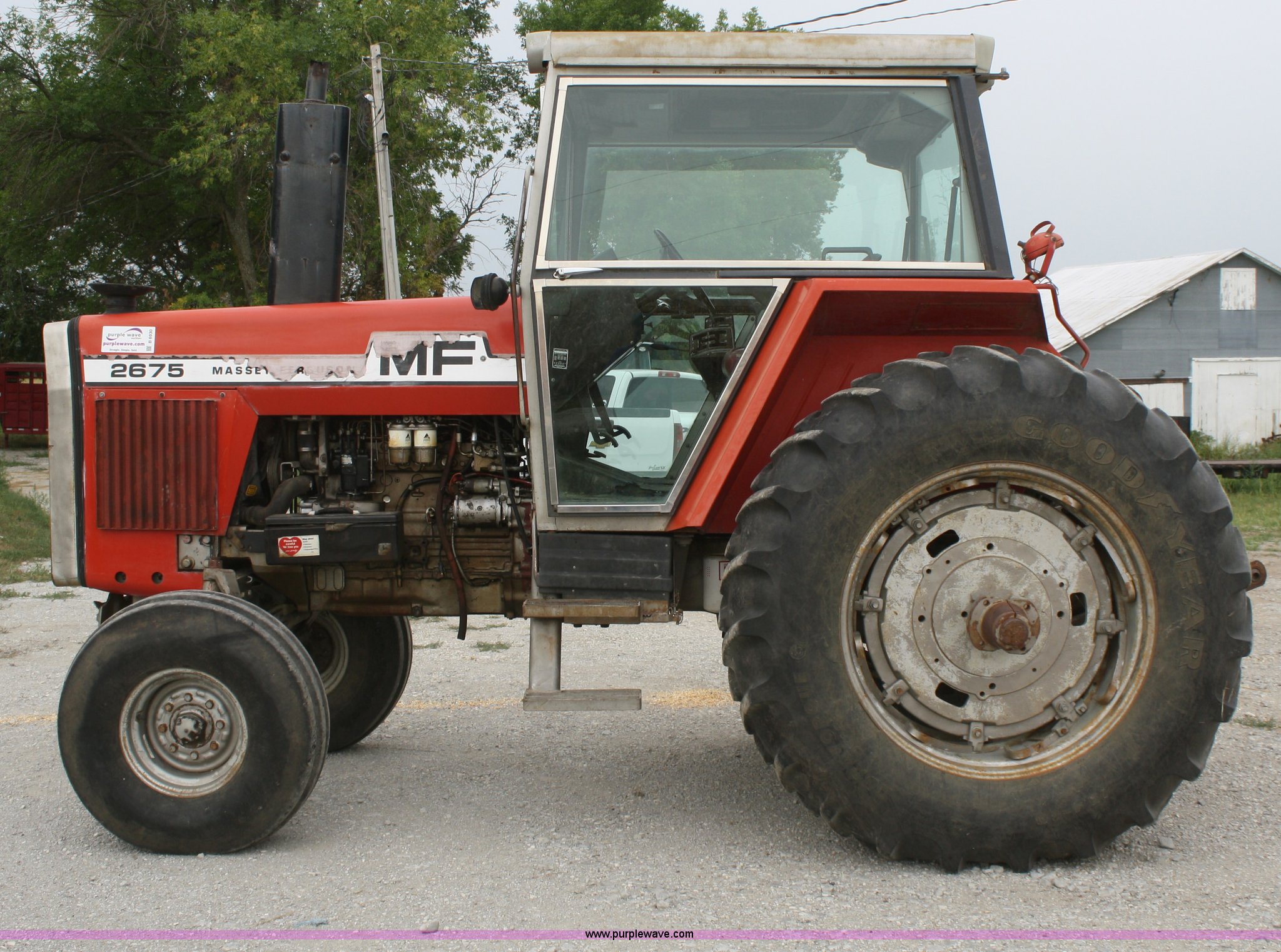

Massey Ferguson 2675

Name: Massey Ferguson 2675
Brand: Massey Ferguson

Massey Ferguson 2675 — Row-Crop tractor · 103 hp. Reference specifications; pending source verification.

The Massey Ferguson 2675 is a tractor with a rated output of 103 hp, placing it approximately in the middle of its class for power. Production of the 2675 ran from 1978 to 1983. It is equipped with a 6-cylinder diesel liquid-cooled engine, driving through two-wheel drive with a hydrostatic transmission. The listed weight of the 2675 ranges from 11200 to 12430 pounds, and it is suited to tasks covering 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

103 hp

Max power

62.9 kW

Weight

11200 to 12430 pounds

Catalogue coverage

Variants represented

Richest spec table

116 rows

Recorded power

103 hp

Transmissions

24-speed 3-speed power shift

Production years

1978-1983

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Original price was $37,000 in 1983Reference

Two-wheel driveReference

Final drivesplanetaryReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning. Available platform configuration with four-post ROPS.Reference

Engine

Perkins 5.8L 6-cyl dieselReference

Fuel tank329.3 LReference

Drawbar (tested)62.9 kWReference

Perkins A6.3544Reference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.8 LReference

Bore/Stroke98 x 127 mmReference

Fuel systemdirect injectionReference

Air cleanerdual dry elementReference

Compression16:1Reference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Oil capacity17.0 LReference

Coolant capacity29.3 LReference

Power at rated engine speed77.0 kWReference

Max power62.9 kWReference

Power at rated engine speed75.2 kWReference

Max power61.6 kWReference

Transmission

24-speed 3-speed power shiftReference

8-speed mechanical shuttleReference

TransmissionMulti-PowerReference

Type3-speed power shiftReference

Gears24 forward and 6 reverseReference

Clutch356mm cerametallic dry discReference

Oil capacity113.6 LReference

Eight forward gears with three power shift speeds in each gear.Reference

Typemechanical shuttleReference

Gears8 forward and 6 reverseReference

PTO & Hydraulics

PTO (claimed)74.6 kWReference

PTO (tested)77.0 kWReference

Typeopen centerReference

Valves2 or 3Reference

Pump flow62.5 lpmReference

Pump flow24.2 lpmReference

Rear TypeIIReference

Controlposition control and lower-link draft sensingReference

Rear PTOindependentReference

ClutchhydraulicReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1990Reference

Engine RPM1000@2090Reference

Power at rated PTO speed72.1 kWReference

Power at rated PTO speed70.8 kWReference

Dimensions

Wheelbase267 cmReference

Weight11200 to 12430 poundsReference

Front tire9.5L-15Reference

Rear tire16.9-38Reference

Ag front9.5L-15Reference

Ag front10.00-16Reference

Ag front11.00-16Reference

Ag front14L-16.1Reference

Ag rear16.9-38Reference

Ag rear18.4-38Reference

Ag rear20.8-38Reference

Ag rear23.1-34Reference

Ag rear24.5-32Reference

Ag rear30.5-32Reference

Length449 cmReference

Width239 cmReference

Width299 cmReference

Clearance (front axle)60 cmReference

Clearance (drawbar)39 cmReference

Rear axle82 mmReference

Front tread152 to 203 cmReference

Front tread177 to 228 cmReference

Rear tread175 to 241 cmReference

Rear tread152 to 246 cmReference

Rear tread175 to 302 cmReference

Rear tread152 to 307 cmReference

Shipping5080 kgReference

Operating5638 kgReference

Ballasted6574 kgReference

Steering wheel223 cmReference

Massey Ferguson 2675 attachments

front-end loaderReference

2675 Serial Numbers

Location:Serial number plate to the left of the tractor's instrument panel.Reference

19789R000733Reference

19799R003482Reference

19809R007282Reference

19819R010307Reference

19829R013230Reference

19839R013525Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps58Reference

Batteries2Reference

Battery volts12Reference

Massey Ferguson 2675 Height

Hood181 cmReference

Cab284 cmReference

Test results

NTTL 1309: diesel 24-speed 2WDReference

NTTL 1321: diesel 8-speed 2WDReference

Diesel 24-speed 2WDMay 8 - 18, 1979Link: Nebraska Tractor Test 1309 fileReference

PTO performanceReference

Fuel use27.3 l/hourReference

Fuel use23.8 l/hourReference

Drawbar performanceReference

Gear 5I used for power test.Reference

Max pull4388 kgReference

Gear 4L used for pull test.Reference

Diesel 8-speed 2WDAugust 31 - September 8, 1979Link: Nebraska Tractor Test 1321 fileReference

Fuel use28.0 l/hourReference

Gear 4 used for power test.Reference

Max pull4638 kgReference

Gear 2 used for pull test.Reference

Speeds

With 18.4x38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
