Tractor · 1981Unverified

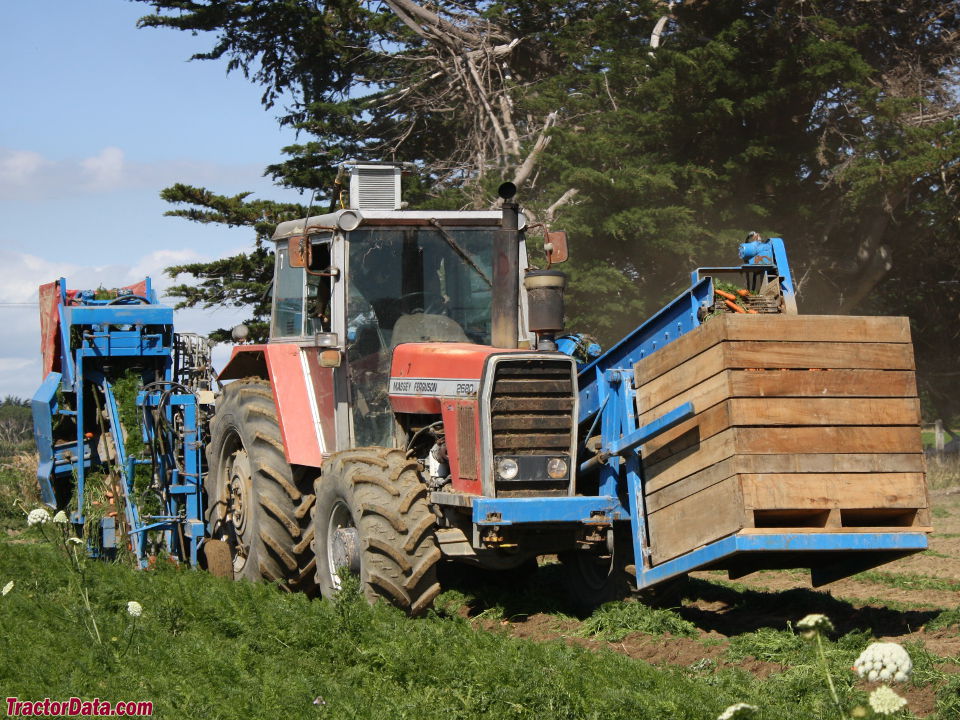

Massey Ferguson 2680
Massey Ferguson 2680 — Row-Crop tractor · 130 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
130 hp
Weight
5719 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Engine
Perkins 5.8L 6-cyl dieselReference
Fuel tank213.1 LReference
Engine96.9 kWReference
Perkins AT6.354.4Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.8 LReference
Bore/Stroke98 x 127 mmReference
Power96.9 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Pre-heatingthermostartReference
Compression16:1Reference
Rated RPM2400Reference
Torque435.0 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity20.5 LReference
Coolant capacity27.0 LReference
Transmission
16-speed two-speed power shiftReference
Typetwo-speed power shiftReference
Gears16 forward and 12 reverseReference
Clutch355mm dry discReference
Oil capacity85.0 LReference
PTO & Hydraulics
Pressure158.0 barReference
Pump flow53.4 lpmReference
Steering flow21.6 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift4500 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1990Reference
Engine RPM1000@2090Reference
Dimensions
Wheelbase272 cmReference
Weight5719 kgReference
Front tire11.00-16Reference
2WD Rear tire18.4-38Reference
2WD Standard tires (ag)Front: 11.00-16. Rear: 18.4-38Reference
4WD Standard tires (ag)Front: 13.6-28. Rear: 18.4-38Reference
Length509 cmReference
Height (cab)283 cmReference
Electrical
GroundnegativeReference
Batteries2Reference
Battery volts12Reference
Battery AH105Reference
Speeds
With 18.4/15-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
