Tractor · 1985Unverified

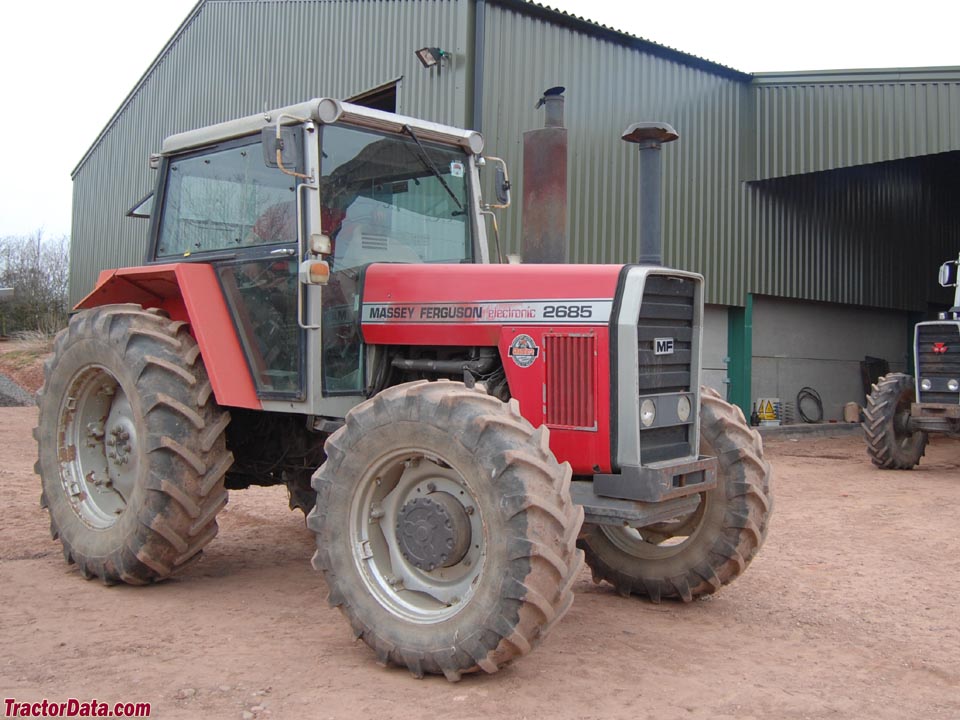

Massey Ferguson 2685
Massey Ferguson 2685 — Row-Crop tractor · 130 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
130 hp
Weight
5320 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Engine
Perkins 5.8L 6-cyl dieselReference
Fuel tank213.1 LReference
Engine96.9 kWReference
Perkins A6.354.4Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.8 LReference
Bore/Stroke98 x 127 mmReference
Power96.9 kWReference
Rated RPM2400Reference
Torque435.0 NmReference
Torque RPM1600Reference
Transmission
16-speedReference
Gears16 forward and 12 reverseReference
PTO & Hydraulics
Total flow54.9 lpmReference
Rear lift7198 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase273 cmReference
Weight5320 kgReference
Front tire13.6-28Reference
Rear tire18.4-38Reference
Ag front13.6-28Reference
Ag rear18.4-38Reference
Length509 cmReference
Height290 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
