Tractor · 2016Unverified
Massey Ferguson 2705E
Massey Ferguson 2705E — Utility tractor · 41 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
41 hp
Weight
3836 to 3880 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Original price was $23,119 in 2016 with shuttleReference
Four-wheel driveReference
Final drivesbull gearReference
Differential lockmechanicalReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Shibaura 2.2L 4-cyl dieselReference
Fuel tank53.0 LReference
Engine36.4 kWReference
Shibaura N4LDI-TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke84 x 100 mmReference
EmissionsTier IVReference
Emission controlexternal cooled echaust gas recirculation with diesel oxidation catalystReference
Power36.4 kWReference
Fuel systemhigh-pressure common railReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed syncro-shuttleReference
hydrostaticReference
Gear Weight1740 kgReference
Typesyncro-shuttleReference
Gears8 forward and reverseReference
Clutchdry discReference
Four gears in two ranges with mechanical shuttle. Gears 3 and 4 are synchronized.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)30.9 kWReference
Hydro PTO (claimed)29.1 kWReference
Typeopen centerReference
Valves0 to 3Reference
Pump flow46.9 lpmReference

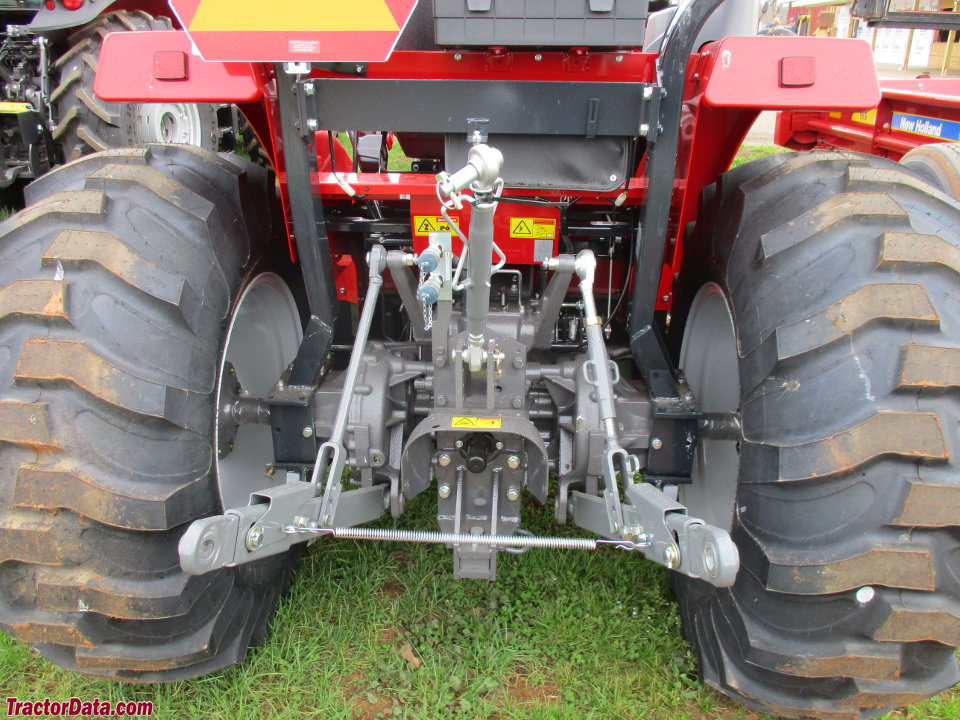

Rear TypeII/IReference
Rear lift (at 24"/610mm)1099 kgReference
Rear Armstelescoping lower linksReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase198 cmReference
Weight3836 to 3880 poundsReference
Front tire9.5x16Reference
Rear tire13.6x28Reference
Weight386 kgReference
Ag front9.5x16Reference
Ag rear13.6x28Reference
Ag rear16.9x24Reference
Lawn/turf front27x10.50-15Reference
Lawn/turf rear44x18.00-20Reference
Industrial front10-16.5Reference
Industrial rear17.5L-24Reference
Length337 cmReference
Width187 cmReference
Height (ROPS)264 cmReference
Height (ROPS)203 cmReference
Hydro Weight1759 kgReference
Massey Ferguson 2705E attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Massey Ferguson CB85 Backhoe
Backhoe typeMassey Ferguson CB85 BackhoeReference
Transport height216 cmReference
Digging depth258 cmReference
Reach from pivot330 cmReference
Loading height187 cmReference
Swing Arc180°Reference
Bucket force1765 kgReference
Dipperstick force1137 kgReference
Speeds
With 13.6-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
