Tractor · 2016Unverified

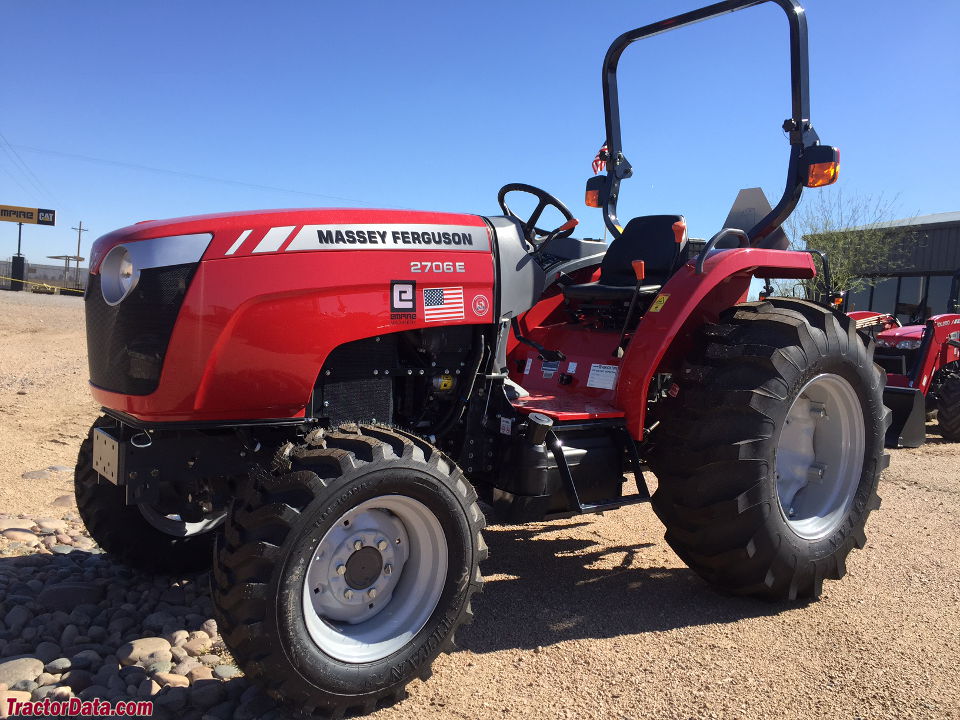

Massey Ferguson 2706E

Name: Massey Ferguson 2706E
Brand: Massey Ferguson

Massey Ferguson 2706E — Utility tractor · 49 hp. Reference specifications; pending source verification.

The Massey Ferguson 2706E is a compact tractor model with a rated output of 49 hp. Manufactured from 2016 to 2019, it features a 4-cylinder turbocharged diesel liquid-cooled engine, powering a four-wheel drive system with a hydrostatic transmission. The listed weight of the tractor is 3847 to 3891 pounds. It is designed for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

49 hp

Max power

57.3 hp

Weight

3847 to 3891 pounds

Catalogue coverage

Variants represented

Richest spec table

109 rows

Recorded power

49 hp

Recorded weight

386 kg

Transmissions

8-speed syncro-shuttle

Production years

2016-2019

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Utility tractorReference

Original price was $25,189 in 2016 with shuttleReference

Four-wheel driveReference

Final drivesbull gearReference

Differential lockmechanicalReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Shibaura 2.2L 4-cyl dieselReference

Fuel tank53.0 LReference

Engine42.7 kWReference

Shibaura N4LDI-TAReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke84 x 100 mmReference

EmissionsTier IVReference

Emission controlexternal cooled echaust gas recirculation with diesel oxidation catalystReference

Power42.7 kWReference

Fuel systemhigh-pressure common railReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,600 RPMReference

Bore and stroke3.307x3.937 inchesReference

Cooling systemliquid-cooledReference

Transmission

8-speed syncro-shuttleReference

hydrostaticReference

Gear Weight1744 kgReference

Typesyncro-shuttleReference

Gears8 forward and reverseReference

Clutchdry discReference

Four gears in two ranges with mechanical shuttle. Gears 3 and 4 are synchronized.Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Transmission TypeHSTReference

Wheel Drive4WDReference

Track Drive typebull gearReference

PTO & Hydraulics

Gear PTO (claimed)36.3 kWReference

Hydro PTO (claimed)34.2 kWReference

Typeopen centerReference

Valves0 to 3Reference

Pump flow46.9 lpmReference

Rear TypeII/IReference

Rear lift (at 24"/610mm)1099 kgReference

Rear Armstelescoping lower linksReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase198 cmReference

Weight3847 to 3891 poundsReference

Front tire9.5x16Reference

Rear tire13.6x28Reference

Weight386 kgReference

Ag front9.5x16Reference

Ag rear13.6x28Reference

Ag rear16.9x24Reference

Lawn/turf front27x10.50-15Reference

Lawn/turf rear44x18.00-20Reference

Industrial front10-16.5Reference

Industrial rear17.5L-24Reference

Length337 cmReference

Width187 cmReference

Height (ROPS)264 cmReference

Height (ROPS)203 cmReference

Hydro Weight1764 kgReference

Massey Ferguson 2706E attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps90Reference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Massey Ferguson CB85 Backhoe

Backhoe typeMassey Ferguson CB85 BackhoeReference

Transport height216 cmReference

Digging depth258 cmReference

Reach from pivot330 cmReference

Loading height187 cmReference

Swing Arc180°Reference

Bucket force1765 kgReference

Dipperstick force1137 kgReference

Speeds

With 13.6-28 rear tires.Reference

General

Make & ModelMassey Ferguson (a part of AGCO)Reference

SCV controlJoystickReference

Rollover protective structureTwo-post folding ROPSReference

Capacities

Capacity135.2 ciReference

Power

Max Power57.3 hpReference

PTO

PTO Power48.7 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Steering & brakes

Brakeswet discReference

Steering typePowerReference

Hydraulics

Pump Rated Output (total)12.4 gpmReference

Hydraulics Typeopen centerReference

Remote Valves0 to 3 ValvesReference

Rear Hitch category (SAE designation)Category II/IReference

Dimensions & weight

Height Over ROPS264.2 cmReference

Overall Length337.8 cmReference

Overall Width188 cmReference

Overall weight1,764.9 kgReference

Wheels & tyres

Rear Wheel Type13.6x28Reference

Front Wheel Type9.5x16Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
