Tractor · 1998Unverified
Massey Ferguson 271
Massey Ferguson 271 — 200 One Series · 59 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
2780 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Original price was $18,000 in 1999Reference
Two-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Independent mechanical wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Perkins 4.2L 4-cyl dieselReference
Engine48.5 kWReference
Perkins 1004.4Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke103 x 127 mmReference
Power48.5 kWReference
Air cleanerdryReference
Pre-heatingthermostartReference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity6.8 LReference
Coolant capacity14.0 LReference
Transmission
8-speed sliding gearReference
Typesliding gearReference
Gears8 forward and 2 reverseReference
Clutch305mm dry dsicReference
PTO & Hydraulics
PTO (claimed)44.0 kWReference
Hydraulic system43.5 LReference
Capacity43.5 LReference
Pressure172.4 barReference
Valves2Reference
Pump flow36.0 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)2226 kgReference
Rear PTOlive (two-stage clutch)Reference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2200Reference
Capacities
Fuel79.5 LReference
Dimensions
Wheelbase229 cmReference
Weight2780 kgReference
Front tire7.50-16Reference
Rear tire16.9-30Reference
Ag front7.50-16Reference
Ag rear16.9-30Reference
Length388 cmReference
Width200 cmReference
Height (ROPS)248 cmReference
Height (Folded ROPS)190 cmReference
Shipping weight2780 kgReference
Clearance (drawbar)33 cmReference
Front tread137 to 177 cmReference
Rear tread142 to 213 cmReference

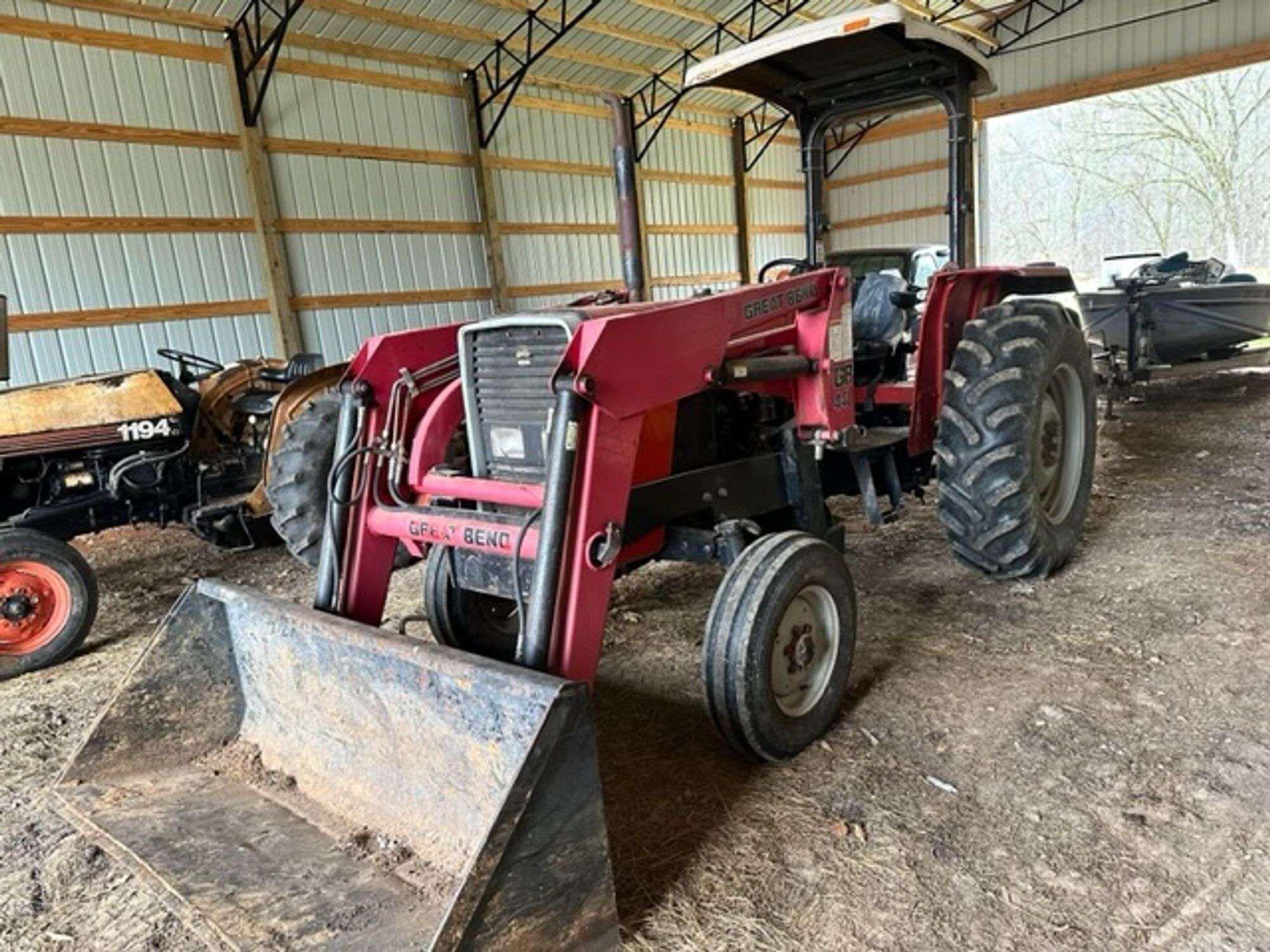

Massey Ferguson 271 attachments
front-end loaderReference
271 Serial Numbers
1998G01001Reference
1999H01001Reference
2000J01001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
