Tractor · 1982Unverified

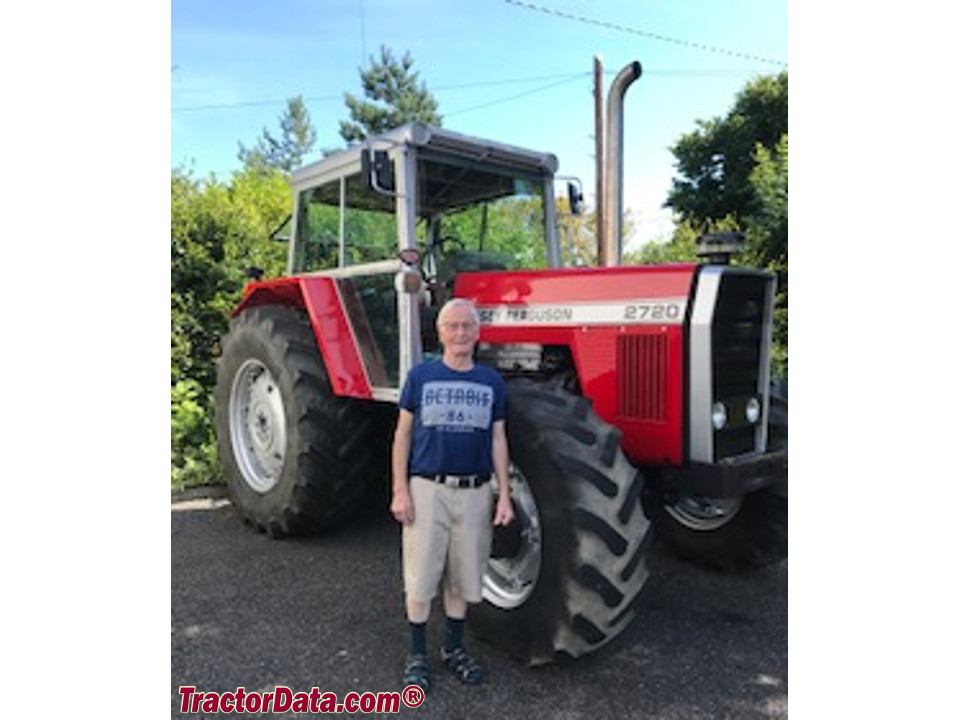

Massey Ferguson 2720

Name: Massey Ferguson 2720
Brand: Massey Ferguson

Massey Ferguson 2720 — Row-Crop tractor · 147 hp. Reference specifications; pending source verification.

The Massey Ferguson 2720 is a tractor classified among the higher-powered machines in its class, with a rated output of 147 hp. Produced from 1982 to 1985, this model features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, coupled with a powershift transmission driving through four-wheel drive. The listed weight of the tractor is 6129 kg, and it is suited for areas of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

147 hp

Weight

6129 kg

Catalogue coverage

Variants represented

Richest spec table

49 rows

Recorded power

147 hp

Recorded weight

6129 kg

Transmissions

16-speed two-speed power shift

Production years

1982-1985

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard.Reference

Engine

Perkins 5.8L 6-cyl dieselReference

Fuel tank213.1 LReference

Engine109.6 kWReference

Perkins AT6.354.4Reference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.8 LReference

Bore/Stroke98 x 127 mmReference

Power109.6 kWReference

Fuel systemdirect injectionReference

Air cleanerdryReference

Pre-heatingether injectionReference

Rated RPM2400Reference

Torque493.0 NmReference

Torque RPM1600Reference

Starter typeelectricReference

Oil capacity20.5 LReference

Coolant capacity27.0 LReference

Transmission

16-speed two-speed power shiftReference

Typetwo-speed power shiftReference

Gears16 forward and 12 reverseReference

Clutch355mm dry discReference

Oil capacity88.0 LReference

PTO & Hydraulics

Pressure175.0 barReference

Pump flow54.9 lpmReference

Rear TypeIII/IIReference

Rear lift7321 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1992Reference

Engine RPM1000@2090Reference

Dimensions

Wheelbase273 cmReference

Weight6129 kgReference

Front tire16.9-28Reference

Rear tire20.8-38Reference

Standard tires (ag)Front: 16.9-28. Rear: 20.8-38Reference

Length509 cmReference

Width212 cmReference

Height (cab)284 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Speeds

With 20.8/18-38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
