Tractor · 1982Unverified

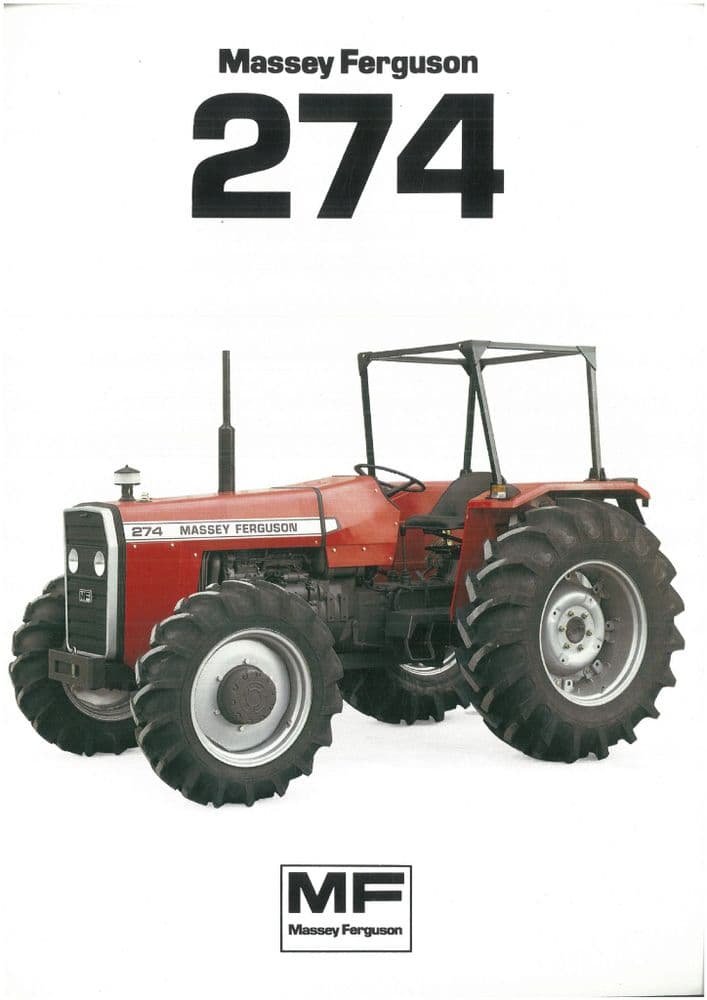

Massey Ferguson 274

Name: Massey Ferguson 274
Brand: Massey Ferguson

Massey Ferguson 274 — 204 Series · 55 hp. Reference specifications; pending source verification.

The Massey Ferguson 274 is a compact tractor, rated at 55 hp, and manufactured from 1982 to 1987. It features a 4-cylinder diesel liquid-cooled engine, which powers a 12-speed gearbox and four-wheel drive system. The tractor's listed weight is 2714 kg. The 274 model is suited to tasks involving approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

55 hp

Max power

34.4 kW

Weight

2714 kg

Catalogue coverage

Variants represented

Richest spec table

65 rows

Recorded power

55 hp

Recorded weight

2714 kg

Transmissions

12-speed synchromesh

Production years

1982-1987

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorMassey FergusonReference

ManufacturerLandiniReference

Utility tractorReference

Built in ItalyReference

Original price was $23,000 in 1987Reference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Differential mechanical dry disc brakesReference

Two-post ROPS.Reference

Variants

6830similar Landini modelReference

273similar Massey Ferguson modelReference

Engine

Perkins 3.9L 4-cyl dieselReference

Fuel tank60.6 LReference

Drawbar (tested)34.4 kWReference

Perkins A4.236Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.9 LReference

Bore/Stroke98 x 127 mmReference

Fuel systemdirect injectionReference

Air cleaneroil bathReference

Compression16:1Reference

Rated RPM2200Reference

Starter volts12Reference

Power at rated engine speed41.3 kWReference

Max power34.4 kWReference

Transmission

12-speed synchromeshReference

TypesynchromeshReference

Gears12 forward and 4 reverseReference

Clutch11-inch dual dry discReference

Four gears in three ranges, plus reverse range.Reference

PTO & Hydraulics

PTO (claimed)41.0 kWReference

PTO (tested)41.3 kWReference

Typeopen centerReference

Valves2Reference

Pump flow35.6 lpmReference

Rear TypeIIReference

Controldraft and position controlReference

Rear lift (at 24"/610mm)1664 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@1944Reference

Front PTOdirect-driveReference

Front PTO Type2250Reference

Power at rated PTO speed40.5 kWReference

Dimensions

Wheelbase222 cmReference

Weight2714 kgReference

Front tire11.2-24Reference

Rear tire16.9-30Reference

Standard tires (ag)Front: 11.2-24. Rear: 16.9-30Reference

Operating weight2714 kgReference

Ballasted weight3714 kgReference

Clearance (front axle)35 cmReference

Front tread151 cmReference

Rear tread149 to 200 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Test results

Diesel 12-speed 4WDMay 12 - 26, 1983Link: Nebraska Tractor Test 1521 fileReference

PTO performanceReference

Fuel use12.9 l/hourReference

Fuel use11.7 l/hourReference

Drawbar performanceReference

Gear 8 used for power test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
