Tractor · 1978Unverified
Massey Ferguson 2745
Massey Ferguson 2745 — Row-Crop tractor · 143 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
143 hp
Max power
91.2 kW
Weight
12500 to 15190 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Original price was $44,500 in 1983Reference
Two-wheel driveReference
Final drivesplanetaryReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning. Available platform configuration with four-post ROPS.Reference
Engine
Perkins 8.8L 8-cyl dieselReference
Fuel tank329.3 LReference
Drawbar (tested)91.2 kWReference
Perkins 8.540Reference
dieselReference
8-cylinderReference
liquid-cooledReference
Displacement8.8 LReference
Bore/Stroke108 x 121 mmReference
Fuel systemdirect injectionReference
Air cleanerdual dry elementReference
Compression18.4:1Reference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity18.9 LReference
Coolant capacity47.3 LReference
Power at rated engine speed106.9 kWReference
Max power91.2 kWReference
Transmission
24-speed 3-speed power shiftReference
8-speed mechanical shuttleReference
TransmissionMulti-PowerReference
Type3-speed power shiftReference
Gears24 forward and 6 reverseReference
Clutch356mm dual cerametallic dry discReference
Oil capacity113.6 LReference
Eight forward gears with three power shift speeds in each gear.Reference
Typemechanical shuttleReference
Gears8 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)104.4 kWReference
PTO (tested)106.9 kWReference
Typeopen centerReference
Valves2 or 3Reference
Pump flow64.7 lpmReference
Pump flow25.0 lpmReference
Pump flow64.7 lpmReference
Steering flow21.6 lpmReference
Rear TypeIIReference
Controlposition control and lower-link draft sensingReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1990Reference
Engine RPM1000@2090Reference
Power at rated PTO speed98.6 kWReference
Dimensions
Wheelbase279 cmReference
Weight12500 to 15190 poundsReference
Front tire11.00-16Reference
Rear tire20.8-38Reference
Ag front11.00-16Reference
Ag rear20.8-38Reference
Length461 cmReference
Width232 cmReference
Width319 cmReference
Clearance (front axle)60 cmReference
Clearance (drawbar)39 cmReference
Rear axle95 mmReference
Front tread152 to 203 cmReference
Front tread177 to 228 cmReference
Rear tread180 to 233 cmReference
Rear tread157 to 241 cmReference
Rear tread180 to 320 cmReference
Rear tread157 to 327 cmReference
Shipping5670 kgReference
Operating6890 kgReference
Ballasted8840 kgReference
Steering wheel223 cmReference

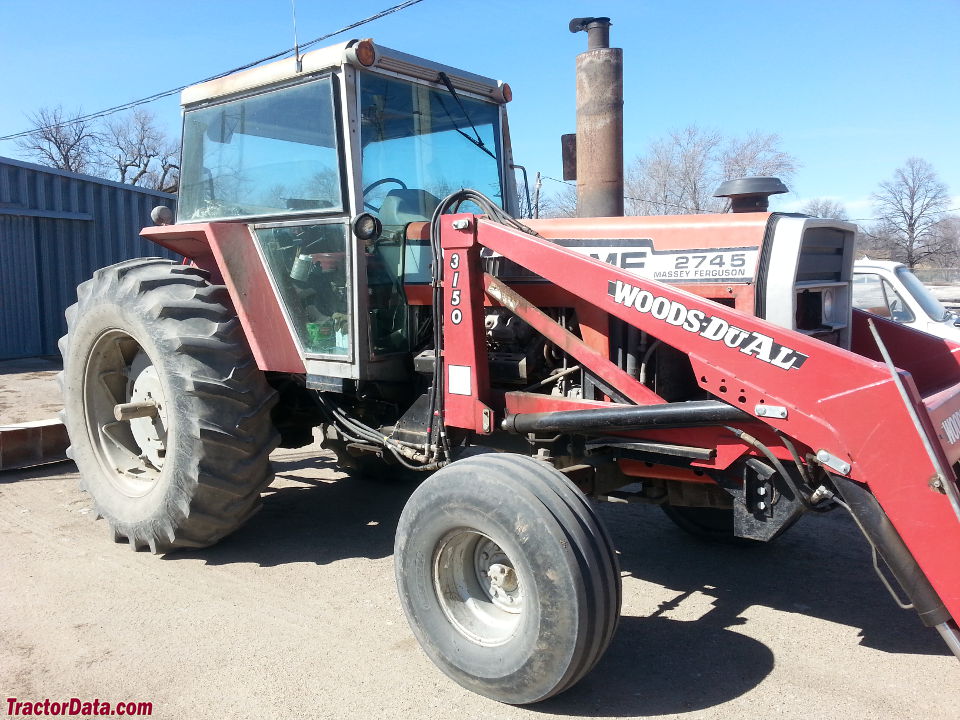

Massey Ferguson 2745 attachments
front-end loaderReference
2745 Serial Numbers
Location:Serial number plate to the left of the tractor's instrument panel.Reference
19789R000733Reference
19799R003482Reference
19809R007282Reference
19819R010307Reference
19829R013230Reference
19839R013525Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps58Reference
Batteries2Reference
Battery volts12Reference
Massey Ferguson 2745 Height
Hood181 cmReference
Cab284 cmReference
Test results
Diesel 24-speed 2WDMay 7 - 16, 1979Link: Nebraska Tractor Test 1311 fileReference
PTO performanceReference
Fuel use39.0 l/hourReference
Fuel use32.6 l/hourReference
Drawbar performanceReference
Fuel use38.6 l/hourReference
Gear 14 used for power test.Reference
Max pull6979 kgReference
Gear 2H used for pull test.Reference
Speeds
With 18.4x38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
