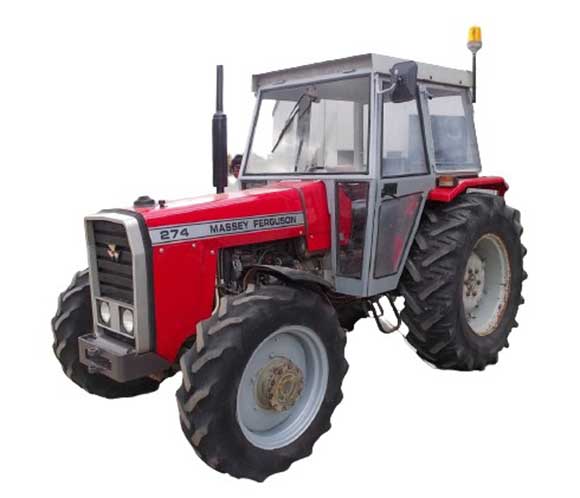

The Massey Ferguson 274S is a compact tractor with a rated output of 60 hp, produced from 1983 to 1987. It features a 4-cylinder diesel liquid-cooled engine, which drives through mechanical front-wheel drive with a hydrostatic transmission. The listed weight range for the 274S is 6240 to 6836 pounds, and it is suitable for tasks covering areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
6240 to 6836 pounds
Catalogue coverage
Variants represented
2
Richest spec table
36 rows
Recorded power
60 hp
Recorded weight
2830 kg
Transmissions
12-speed
Production years
1983-1987
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerLandiniReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Wet disc brakesReference
optionalReference
Engine
Perkins 3.9L 4-cyl dieselReference
Fuel tank99.9 LReference
Engine44.7 kWReference
Perkins A4.236Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power44.7 kWReference
Rated RPM2000Reference
Torque239.1 NmReference
Torque RPM1300Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Total flow36.0 lpmReference
Rear lift2400 kgReference
Rear PTO Type540/1000/groundReference
Dimensions
Wheelbase217 cmReference
Weight6240 to 6836 poundsReference
Front tire7.50-18Reference
Rear tire16.9-30Reference
Ag front7.50-18Reference
Ag rear16.9-30Reference
Ag front11.2-24Reference
Length375 cmReference
Height244 cmReference
Weight2830 kgReference
Weight3100 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
