Tractor · 2020Unverified

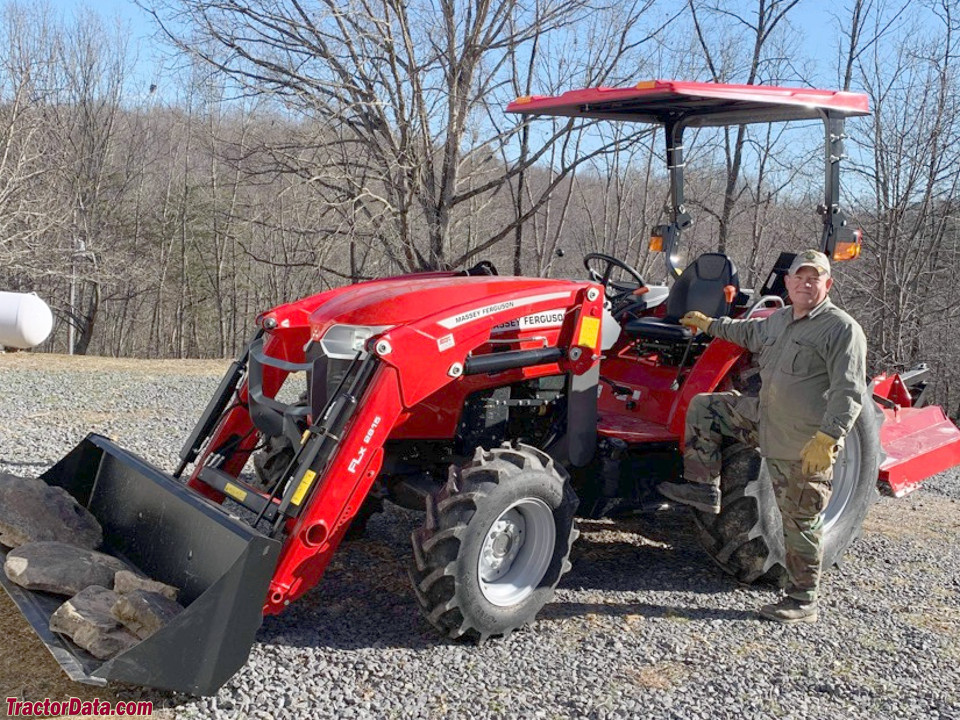

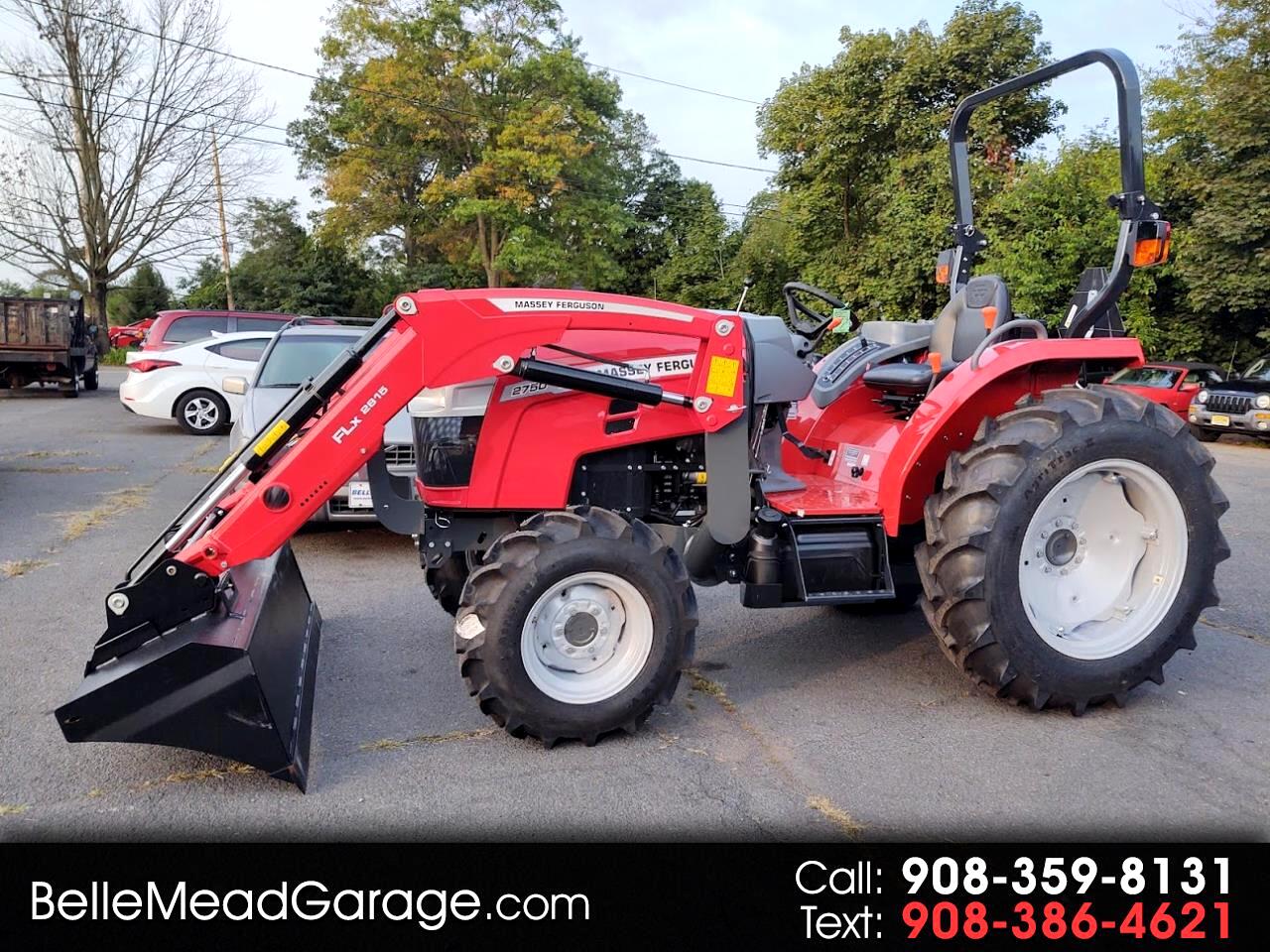

Massey Ferguson 2750E
Massey Ferguson 2750E — Compact Utility tractor · 49 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
49 hp
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Compact Utility tractorReference
Original price was $25,673 in 2020Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Shibaura 2.2L 4-cyl dieselReference
Engine (gross)36.4 kWReference
ShibauraReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke84 x 100 mmReference
EmissionsTier IVReference
Power (gross)36.4 kWReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed sync shuttleReference
hydrostaticReference
Typesync shuttleReference
Gears8 forward and reverseReference
Four gears in two ranges with mechanical shuttle. Gears three and four are synchronized.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Shuttle PTO (claimed)30.6 kWReference
Hydro PTO (claimed)29.1 kWReference
Typeopen centerReference
Rear valves2Reference
Pump flow47.7 lpmReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)1099 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Dimensions
Front tire9.5-16Reference
Rear tire13.6-28Reference
Standard tires (ag)Front: 9.5-16. Rear: 13.6-28Reference
Optional tires (ag)Front: 9.5-16. Rear: 16.9-24Reference
Lawn/turf front27x10.50-15Reference
Lawn/turf rear44x18.00-20Reference
Industrial front10-16.5Reference
Industrial rear17.5L-24Reference
Massey Ferguson 2750E attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Massey Ferguson CB85 Backhoe
Backhoe typeMassey Ferguson CB85 BackhoeReference
Transport height216 cmReference
Digging depth258 cmReference
Reach from pivot330 cmReference
Loading height188 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1765 kgReference
Dipperstick force1137 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
