Tractor · 1978Unverified

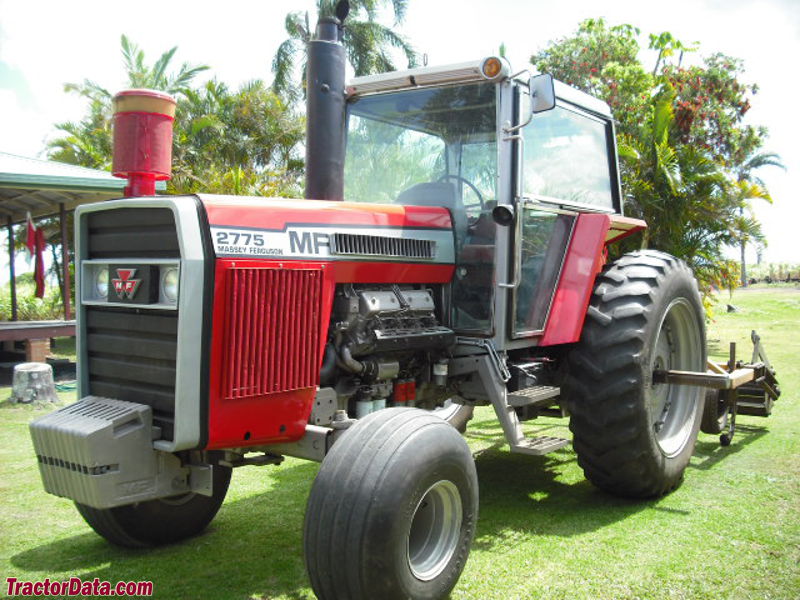

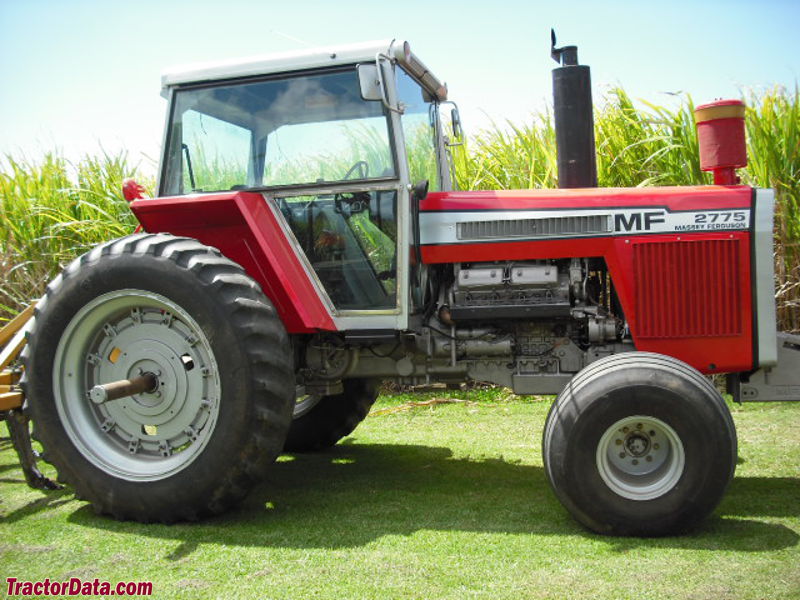

Massey Ferguson 2775
Massey Ferguson 2775 — Row-Crop tractor · 166 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
166 hp
Max power
103.9 kW
Weight
13300 to 16230 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Original price was $51,500 in 1983Reference
Two-wheel driveReference
Final drivesplanetaryReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning. Available platform configuration with four-post ROPS.Reference
Engine
Perkins 10.5L 8-cyl dieselReference
Fuel tank329.3 LReference
Drawbar (tested)103.9 kWReference
Perkins AV8.640Reference
dieselReference
8-cylinderReference
liquid-cooledReference
Displacement10.5 LReference
Bore/Stroke118 x 121 mmReference
Fuel systemdirect injectionReference
Air cleanerdual dry elementReference
Compression15:1Reference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity22.7 LReference
Coolant capacity52.1 LReference
Power at rated engine speed123.7 kWReference
Max power103.9 kWReference
Power at rated engine speed120.9 kWReference
Max power101.8 kWReference
Transmission
24-speed 3-speed power shiftReference
8-speed mechanical shuttleReference
TransmissionMulti-PowerReference
Type3-speed power shiftReference
Gears24 forward and 6 reverseReference
Clutch356mm dual cerametallic dry discReference
Oil capacity113.6 LReference
Eight forward gears with three power shift speeds in each gear.Reference
Typemechanical shuttleReference
Gears8 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)119.3 kWReference
PTO (tested)123.7 kWReference
Typeopen centerReference
Valves2 or 3Reference
Pump flow64.7 lpmReference
Pump flow25.0 lpmReference
Pump flow64.7 lpmReference
Steering flow21.6 lpmReference
Rear TypeIII/IIReference
Controlposition control and lower-link draft sensingReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type1000 (1.375)Reference
Engine RPM1000@2090Reference
Power at rated PTO speed111.8 kWReference
Power at rated PTO speed109.5 kWReference
Dimensions
Wheelbase279 cmReference
Weight13300 to 16230 poundsReference
Front tire11.00-16Reference
Rear tire20.8-38Reference
Ag front11.00-16Reference
Ag rear20.8-38Reference
Length482 cmReference
Width232 cmReference
Width319 cmReference
Width398 cmReference
Clearance (front axle)64 cmReference
Clearance (drawbar)39 cmReference
Rear axle95 mmReference
Front tread152 to 203 cmReference
Front tread177 to 228 cmReference
Rear tread180 to 233 cmReference
Rear tread157 to 241 cmReference
Rear tread180 to 320 cmReference
Rear tread157 to 327 cmReference
Rear tread180 to 408 cmReference
Rear tread157 to 419 cmReference
Shipping6032 kgReference
Operating7361 kgReference
Ballasted9271 kgReference
Steering wheel221 cmReference
Massey Ferguson 2775 attachments
front-end loaderReference
2775 Serial Numbers
Location:Serial number plate to the left of the tractor's instrument panel.Reference
19789R000733Reference
19799R003482Reference
19809R007282Reference
19819R010307Reference
19829R013230Reference
19839R013525Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps58Reference
Batteries2Reference
Battery volts12Reference
Massey Ferguson 2775 Height
Hood185 cmReference
Cab284 cmReference
Test results
NTTL 1278: diesel 24-speed 2WDReference
NTTL 1389: diesel 8-speed 2WDReference
Diesel 24-speed 2WDMay 26 - June 2, 1978Link: Nebraska Tractor Test 1278 fileReference
PTO performanceReference
Fuel use42.0 l/hourReference
Fuel use35.2 l/hourReference
Drawbar performanceReference
Gear 5I used for power test.Reference
Max pull7895 kgReference
Gear 2H used for pull test.Reference
Diesel 8-speed 2WDMay 13 - June 1, 1981Link: Nebraska Tractor Test 1389 fileReference
Fuel use41.6 l/hourReference
Gear 5 used for power test.Reference
Max pull7605 kgReference
Gear 2 used for pull test.Reference
Speeds
With 18.4x38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
