Tractor · 1978Unverified

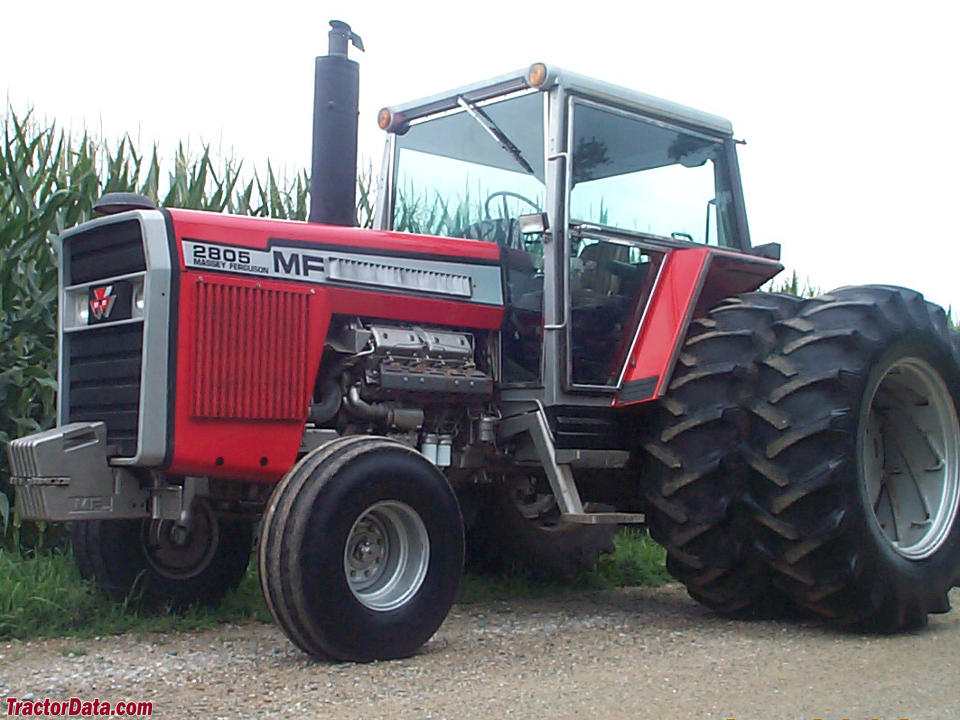

Massey Ferguson 2805

Name: Massey Ferguson 2805
Brand: Massey Ferguson

Massey Ferguson 2805 — Row-Crop tractor · 195 hp. Reference specifications; pending source verification.

The Massey Ferguson 2805 is a tractor with a power rating of 195 hp, positioning it among the more powerful machines in its class. It was manufactured from 1978 to 1983 and features an 8-cylinder turbocharged diesel liquid-cooled engine. The tractor has two-wheel drive and is equipped with a hydrostatic transmission. The specified weight range is 13500 to 16035 pounds, and it is intended for use on areas of approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

195 hp

Max power

117.8 kW

Weight

13500 to 16035 pounds

Catalogue coverage

Variants represented

Richest spec table

142 rows

Recorded power

195 hp

Transmissions

24-speed 3-speed power shift

Production years

1978-1983

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Original price was $60,200 in 1983Reference

Two-wheel driveReference

Final drivesplanetaryReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning. Available platform configuration with four-post ROPS.Reference

Engine

Perkins 10.5L 8-cyl dieselReference

Fuel tank329.3 LReference

Drawbar (tested)119.7 kWReference

Perkins ATV8.640Reference

turbocharged dieselReference

8-cylinderReference

liquid-cooledReference

Displacement10.5 LReference

Bore/Stroke118 x 121 mmReference

Fuel systemdirect injectionReference

Air cleanerdual dry elementReference

Compression16:1Reference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Oil capacity22.7 LReference

Coolant capacity52.1 LReference

Power at rated engine speed145.1 kWReference

Max power117.8 kWReference

Power at rated engine speed142.3 kWReference

Max power119.7 kWReference

Fuel TypeDieselReference

No of Cylinders8-cylinderReference

Rated engine speed2,500Reference

Bore and stroke4.63x4.75 inchesReference

Compression ratio16:1Reference

Cooling systemliquid-cooledReference

Transmission

24-speed 3-speed power shiftReference

8-speed mechanical shuttleReference

TransmissionMulti-PowerReference

Type3-speed power shiftReference

Gears24 forward and 6 reverseReference

Clutch356mm dual cerametallic dry discReference

Oil capacity113.6 LReference

Eight forward gears with three power shift speeds in each gear.Reference

Typemechanical shuttleReference

Gears8 forward and 6 reverseReference

Transmission TypePowershiftReference

Rear Axle Drive TypeplanetaryReference

PTO & Hydraulics

PTO (claimed)141.7 kWReference

PTO (tested)145.1 kWReference

Typeopen centerReference

Valves2 or 3Reference

Pump flow62.5 lpmReference

Pump flow24.2 lpmReference

Pump flow62.5 lpmReference

Steering flow20.8 lpmReference

Rear TypeIII/IIReference

Controlposition control and lower-link draft sensingReference

Rear PTOindependentReference

ClutchhydraulicReference

Rear PTO Type1000 (1.375)Reference

Engine RPM1000@2090Reference

Power at rated PTO speed135.5 kWReference

Power at rated PTO speed138.9 kWReference

Dimensions

Wheelbase279 cmReference

Weight13500 to 16035 poundsReference

Front tire11.00-16Reference

Rear tire20.8-38Reference

Ag front11.00-16Reference

Ag rear20.8-38Reference

Length482 cmReference

Width232 cmReference

Width319 cmReference

Width398 cmReference

Clearance (front axle)64 cmReference

Clearance (drawbar)39 cmReference

Rear axle95 mmReference

Front tread152 to 203 cmReference

Front tread177 to 228 cmReference

Rear tread180 to 233 cmReference

Rear tread157 to 241 cmReference

Rear tread180 to 320 cmReference

Rear tread157 to 327 cmReference

Rear tread180 to 408 cmReference

Rear tread157 to 419 cmReference

Shipping6123 kgReference

Operating7273 kgReference

Ballasted9720 kgReference

Steering wheel221 cmReference

Massey Ferguson 2805 attachments

front-end loaderReference

2805 Serial Numbers

Location:Serial number plate to the left of the tractor's instrument panel.Reference

19789R000733Reference

19799R003482Reference

19809R007282Reference

19819R010307Reference

19829R013230Reference

19839R013525Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps58Reference

Batteries2Reference

Battery volts12Reference

Battery options2Reference

Massey Ferguson 2805 Height

Hood185 cmReference

Cab284 cmReference

Test results

NTTL 1258: diesel 24-speed 2WDReference

NTTL 1399: diesel 8-speed 2WDReference

Diesel 24-speed 2WDOctober 7 - 13, 1977Link: Nebraska Tractor Test 1258 fileReference

PTO performanceReference

Fuel use50.3 l/hourReference

Fuel use42.4 l/hourReference

Drawbar performanceReference

Gear 5I used for power test.Reference

Max pull7878 kgReference

Gear 3I used for pull test.Reference

Diesel 8-speed 2WDJune 18, 1984 - June 24, 1981Link: Nebraska Tractor Test 1399 fileReference

Fuel use49.2 l/hourReference

Fuel use48.8 l/hourReference

Gear 5 used for power test.Reference

Max pull8004 kgReference

Gear 3 used for pull test.Reference

Speeds

With 18.4x38 rear tires.Reference

General

Make & ModelMassey FergusonReference

Rear Axle Type9.5 cmReference

Country of manufacturerRow-Crop tractorReference

Capacities

Capacity640 ciReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typehydrostatic powerReference

Hydraulics

Hydraulics Typeopen centerReference

Remote Valves2 or 3Reference

Steering & Implements flow5.5 gpm (16.5 gpm, 6.4 gpm, 16.5 gpm)Reference

Rear Hitch category (SAE designation)Category III/IIReference

Rear Hitch Sensing Typeposition control and lower-link draft sensingReference

Dimensions & weight

Overall Length482.6 cmReference

Overall Width232.7 cmReference

Drawbar clearance39.9 cmReference

Front axle clearance64.5 cmReference

Wheels & tyres

Rear wheel tread range20.8-38 inchReference

Front Wheel tread rangeOption 1: 11.00-16\\nOption 2: 60 to 80 inches, 70 to 90 inchesReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
