Tractor · 1985Unverified

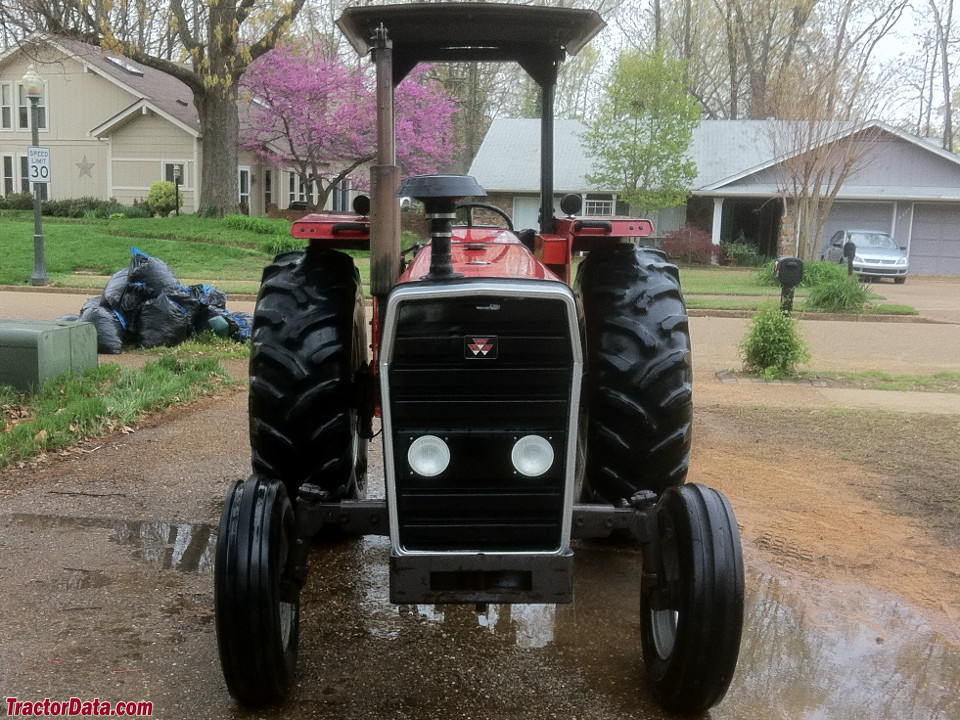

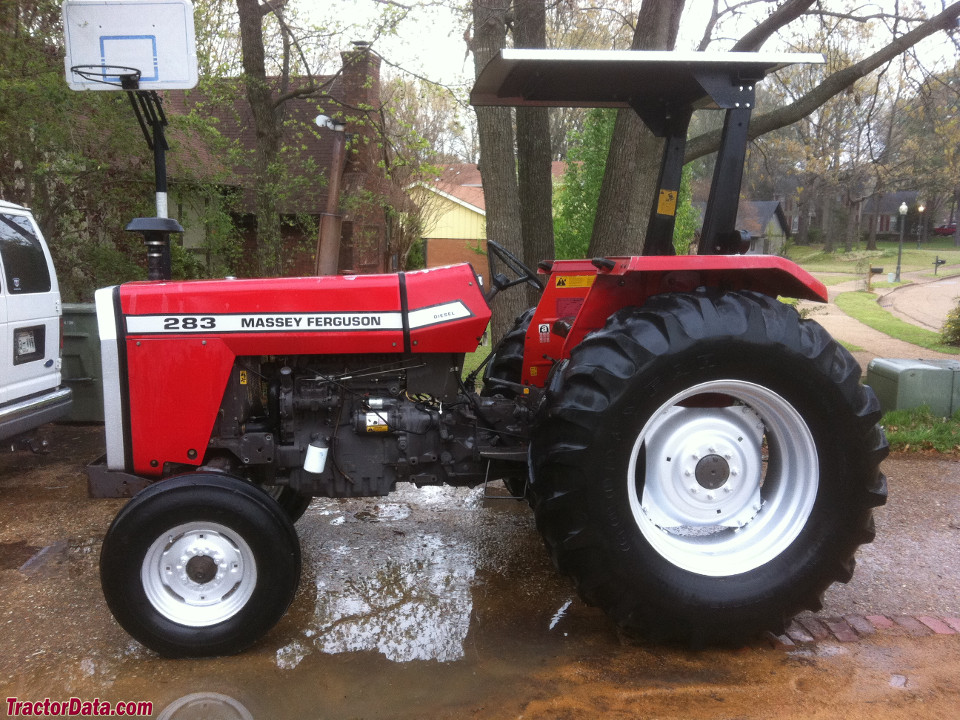

Massey Ferguson 283
Massey Ferguson 283 — 200 Series · 67 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
67 hp
Weight
2463 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
FactoriesCoventry, EnglandReference
FactoriesBrazilReference
Original price$21,000 (1997)Reference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Perkins 4.1L 4-cyl dieselReference
Engine66.4 kWReference
Perkins A4.248Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Power66.4 kWReference
Rated RPM2200Reference
Starter volts12Reference
Coolant capacity14.4 LReference
Transmission
8-speed sliding gearReference
Typesliding gearReference
Gears8 forward and 2 reverseReference
Tractor must be stopped, and clutch used, to shift gears.Reference
PTO & Hydraulics
PTO (claimed)50.0 kWReference
Hydraulic system40.9 LReference
Typeopen centerReference
Capacity40.9 LReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear PTOlive (two-stage clutch)Reference
Rear PTO Type540Reference
Capacities
Fuel82.1 LReference
Dimensions
Wheelbase214 cmReference
Weight2463 kgReference
Front tire7.50-16Reference
Rear tire18.4-30Reference
Ag front7.50-16Reference
Ag rear18.4-30Reference
Length369 cmReference
Width201 cmReference
Height (ROPS)252 cmReference
Ground clearance41 cmReference
Massey Ferguson 283 attachments
front-end loaderReference
283 Serial Numbers
Location:Serial number plate on the dashboard panel of the Massey Ferguson 283.Reference
1988N01001 (UK)Reference
1989P01001 (UK)Reference
1990R01001 (UK)Reference
1991S01001 (UK)Reference
1992A01001 (UK)Reference
1993B01001 (UK)Reference
1994C01001 (UK)Reference
1995D01001 (UK)Reference
1996E01001 (UK)Reference
1997F01001 (UK)Reference
1998G01001 (UK)Reference
1999H01001 (UK)Reference
19885469?????? (Brazil)Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
