Tractor · 1983Unverified

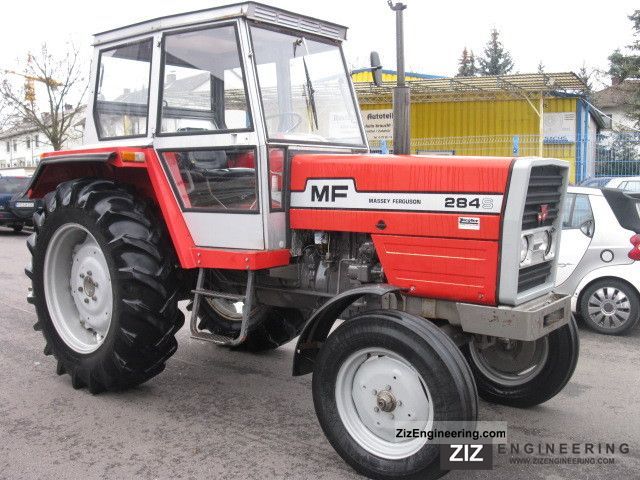

Massey Ferguson 284S
Massey Ferguson 284S — Landini built · 66 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
66 hp
Weight
7144 to 7505 pounds
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerLandiniReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Differential lockmechanicalReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab optional with heat.Reference
Engine
Perkins 3.9L 4-cyl dieselReference
Fuel tank120.0 LReference
Engine49.2 kWReference
Perkins A4.236Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power49.2 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Rated RPM2150Reference
Torque256.0 NmReference
Torque RPM1300Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Clutchdry discsReference
PTO & Hydraulics
Total flow36.0 lpmReference
Rear TypeIIReference
Controlposition and depth controlReference
Rear lift2141 kgReference
Rear lift2753 kgReference
Rear lift3365 kgReference
Rear PTO Type540/1000/groundReference
Dimensions
2WD Wheelbase247 cmReference
4WD Wheelbase242 cmReference
Weight7144 to 7505 poundsReference
Front tire7.50-20Reference
Rear tire16.9-30Reference
Ag front7.50-20 (2WD)Reference
Ag front11.2-24 (4WD)Reference
Ag front12.4-24 (4WD)Reference
Ag rear16.9-30Reference
Ag rear13.6-36Reference
Ag rear16.9-34Reference
Length402 cmReference
Height256 cmReference
Shipping weight3240 kgReference
Shipping weight3404 kgReference
2WD Ground clearance53 cmReference
4WD Ground clearance39 cmReference
2WD Front tread139 to 189 cmReference
4WD Front tread150 to 189 cmReference
Rear tread150 to 189 cmReference
Electrical
GroundnegativeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
