Tractor · 2020Unverified

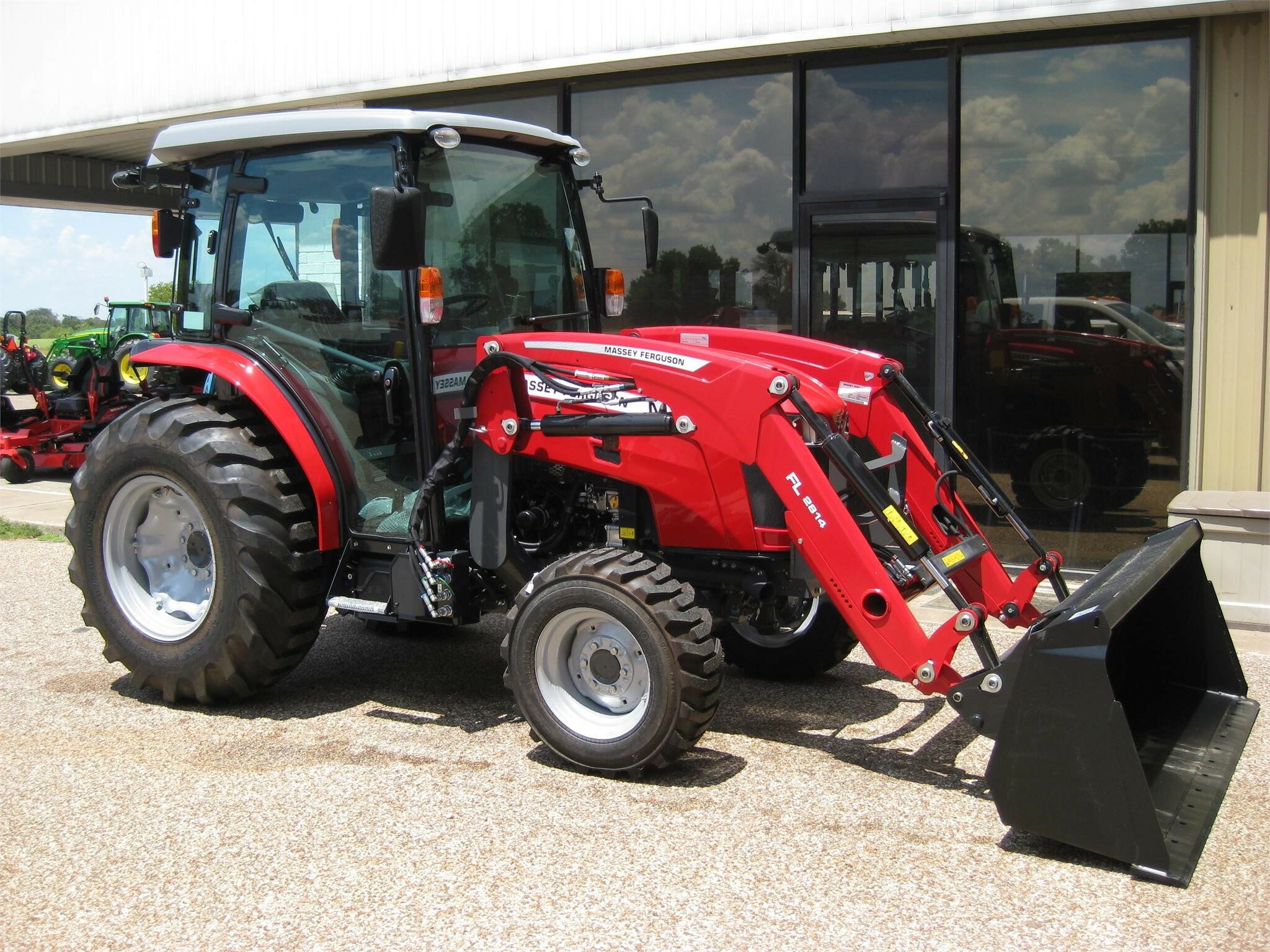

Massey Ferguson 2850M
Massey Ferguson 2850M — Compact Utility tractor · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
4035 to 4420 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Compact Utility tractorReference
Original price$32,165 (2020 gear ROPS )Reference
Original price$40,385 (2020 hydrostatic Cab )Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Iseki 2.4L 4-cyl dieselReference
Fuel tank53.0 LReference
Engine36.4 kWReference
Iseki E4FHReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke87 x 102 mmReference
EmissionsTier IVReference
Power36.4 kWReference
Fuel systemcommon rail direct injectionReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed power shuttleReference
hydrostaticReference
Typepower shuttleReference
Gears12 forward and reverseReference
Four synchronized gears in three ranges with power shuttle.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)28.4 kWReference
Hydro PTO (claimed)27.0 kWReference
Typeopen centerReference
Pump flow47.7 lpmReference
Steering flow26.5 lpmReference
Rear TypeIReference
Controlposition control with optional draft controlReference
Rear lift (at ends)1579 kgReference
Rear lift (at 24"/610mm)1399 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type1916Reference
Dimensions
Weight4035 to 4420 poundsReference
Front tire9.5-16Reference
Rear tire13.6-28Reference
Standard tires (ag)Front: 9.5-16. Rear: 13.6-28Reference
Optional tires (ag)Front: 9.5-16. Rear: 16.9-24Reference
Lawn/turf front27x10.50-15Reference
Lawn/turf rear44x18.00-20Reference
Industrial front10-16.5Reference
Industrial rear14.9-24Reference
Industrial rear17.5L-24Reference
Length336 cmReference
Width178 cmReference
Height (ROPS)260 cmReference
Height (cab)235 cmReference
ROPS Weight1830 kgReference
Cab Weight2004 kgReference
Ground clearance35 cmReference
Massey Ferguson 2850M attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Massey Ferguson CB85 Backhoe
Backhoe typeMassey Ferguson CB85 BackhoeReference
Transport height220 cmReference
Digging depth254 cmReference
Reach from pivot330 cmReference
Loading height193 cmReference
Bucket Rotation180°Reference
Swing Arc175°Reference
Bucket force1847 kgReference
Dipperstick force1188 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
