Tractor · 2020Unverified

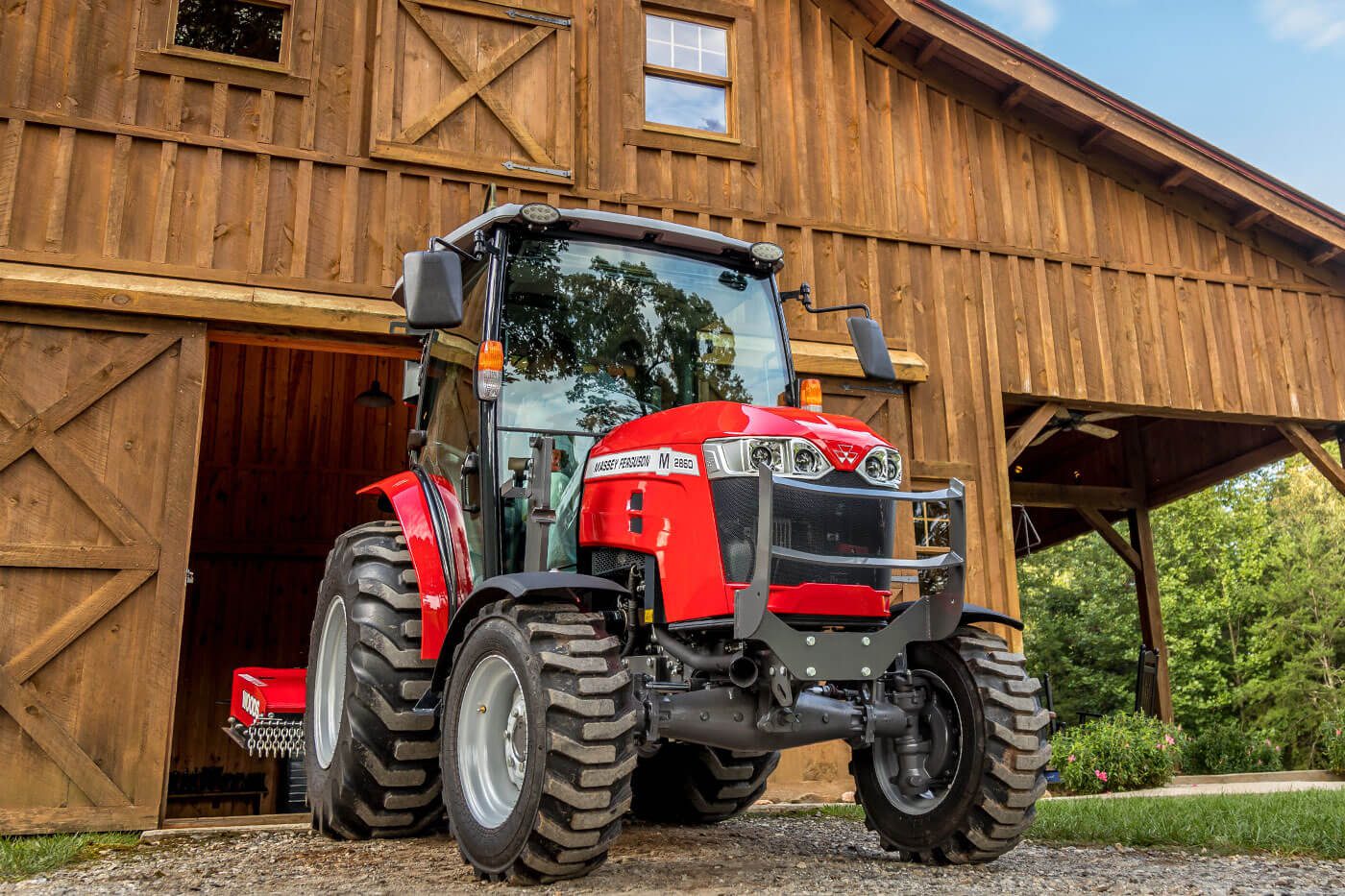

Massey Ferguson 2855M
Massey Ferguson 2855M — Compact Utility tractor · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
4035 to 4420 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Compact Utility tractorReference
Original price$33,350 (2020 ROPS )Reference
Original price$40,930 (2020 Cab )Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Iseki 2.4L 4-cyl dieselReference
Fuel tank53.0 LReference
Engine40.0 kWReference
Iseki E4FHReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke87 x 102 mmReference
EmissionsTier IVReference
Power40.0 kWReference
Fuel systemcommon rail direct injectionReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed power shuttleReference
Typepower shuttleReference
Gears12 forward and reverseReference
Four synchronized gears in three ranges with power shuttle.Reference
PTO & Hydraulics
PTO (claimed)29.8 kWReference
Typeopen centerReference
Pump flow47.7 lpmReference
Steering flow26.5 lpmReference
Rear TypeII/IReference
Rear lift (at ends)1579 kgReference
Rear lift (at 24"/610mm)1399 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Weight4035 to 4420 poundsReference
Front tire9.5-16Reference
Rear tire13.6-28Reference
Standard tires (ag)Front: 9.5-16. Rear: 13.6-28Reference
Optional tires (ag)Front: 9.5-16. Rear: 16.9-24Reference
Lawn/turf front27x10.50-15Reference
Lawn/turf rear44x18.00-20Reference
Industrial front10-16.5Reference
Industrial rear14.9-24Reference
Industrial rear17.5L-24Reference
Length336 cmReference
Width178 cmReference
Height (ROPS)260 cmReference
Height (cab)235 cmReference
ROPS Weight1830 kgReference
Cab Weight2004 kgReference
Ground clearance35 cmReference
Massey Ferguson 2855M attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Massey Ferguson CB85 Backhoe
Backhoe typeMassey Ferguson CB85 BackhoeReference
Transport height220 cmReference
Digging depth254 cmReference
Reach from pivot330 cmReference
Loading height193 cmReference
Bucket Rotation180°Reference
Swing Arc175°Reference
Bucket force1847 kgReference
Dipperstick force1188 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
