Tractor · 2020Unverified

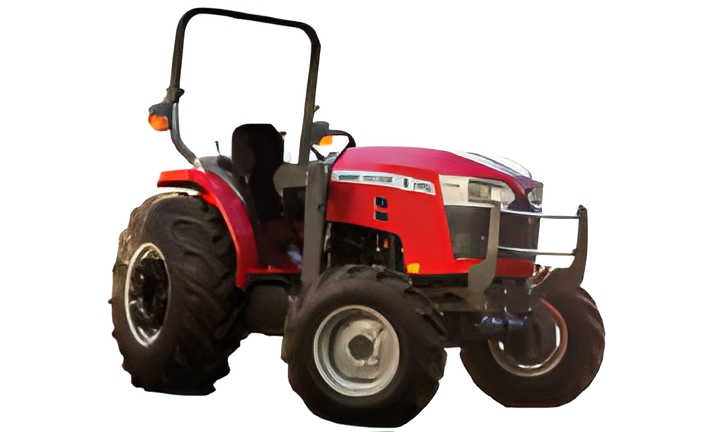

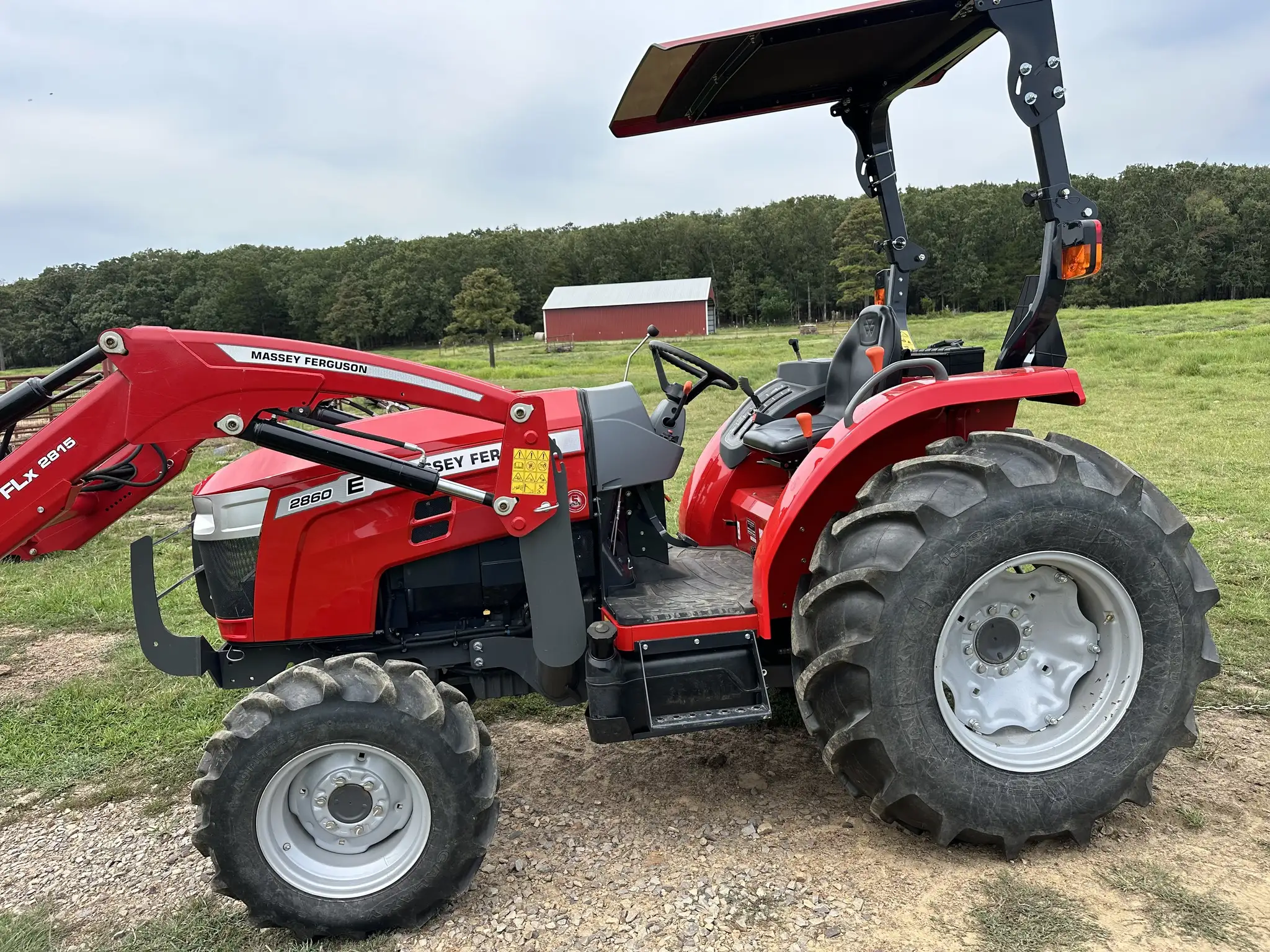

Massey Ferguson 2860E

Name: Massey Ferguson 2860E
Brand: Massey Ferguson

Massey Ferguson 2860E — Compact Utility tractor · 48 hp. Reference specifications; pending source verification.

The Massey Ferguson 2860E is a tractor with a rated power of 48 hp, categorising it at the lighter end of its class. Manufactured from 2020 to 2024, this model features a 4-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. The tractor has an operating weight of 1754 kg and is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

48 hp

Weight

1754 kg

Catalogue coverage

Variants represented

Richest spec table

45 rows

Recorded power

48 hp

Recorded weight

1754 kg

Transmissions

8-speed mechanical shuttle

Production years

2020-2024

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Iseki 2.4L 4-cyl dieselReference

Fuel tank53.0 LReference

Engine42.7 kWReference

IsekiReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.4 LReference

Bore/Stroke87 x 102 mmReference

EmissionsTier IVReference

Power42.7 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

8-speed mechanical shuttleReference

hydrostaticReference

Typemechanical shuttleReference

Gears8 forward and reverseReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

Gear PTO (claimed)35.8 kWReference

Hydro PTO (claimed)33.8 kWReference

Typeopen centerReference

Pump flow47.7 lpmReference

Total flow74.2 lpmReference

Steering flow26.5 lpmReference

Rear TypeII/IReference

Rear lift (at ends)1199 kgReference

Rear lift (at 24"/610mm)1099 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Dimensions

Weight1754 kgReference

Length337 cmReference

Width178 cmReference

Height263 cmReference

Ground clearance38 cmReference

Massey Ferguson 2860E attachments

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
