Tractor · 2020Unverified

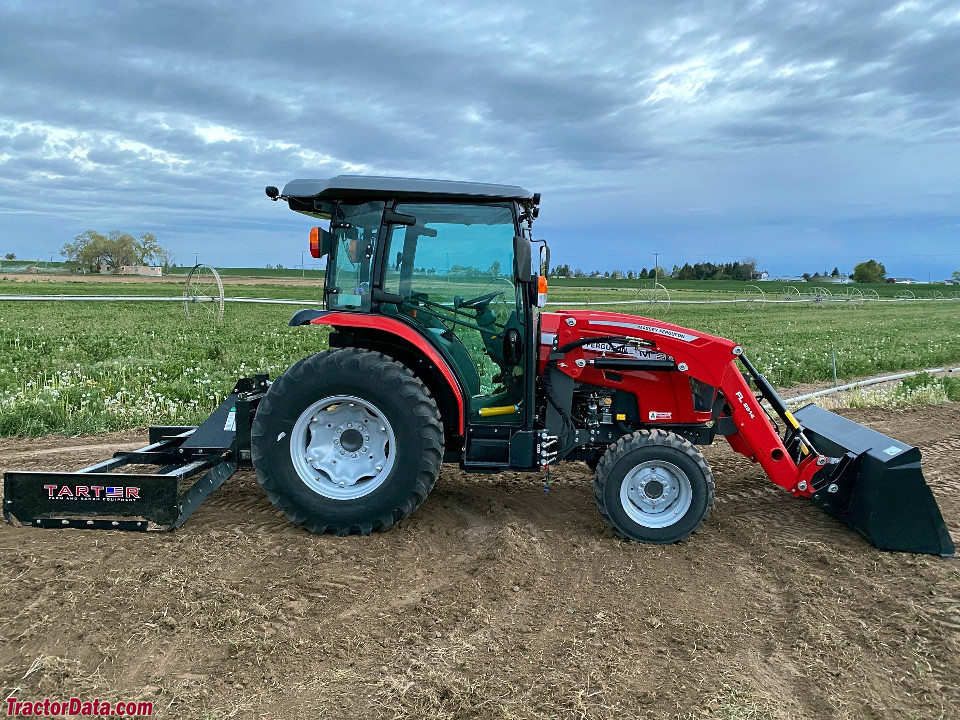

Massey Ferguson 2860M

Name: Massey Ferguson 2860M
Brand: Massey Ferguson

Massey Ferguson 2860M — Compact Utility tractor · 60 hp. Reference specifications; pending source verification.

The Massey Ferguson 2860M is a compact tractor with a rated output of 60 hp. Produced from 2020 to 2024, it features a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with four-wheel drive and a hydrostatic transmission. The listed weight range for this model is 4288 to 4674 pounds. It is designed for use in areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

60 hp

Weight

4288 to 4674 pounds

Catalogue coverage

Variants represented

Richest spec table

79 rows

Recorded power

60 hp

Recorded weight

1945 kg

Transmissions

12-speed power shuttle

Production years

2020-2024

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Compact Utility tractorReference

Original price$36,348 (2020 gear ROPS )Reference

Original price$43,405 (2020 hydrostatic Cab )Reference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Iseki 2.4L 4-cyl dieselReference

Fuel tank53.0 LReference

Engine (gross)45.0 kWReference

Iseki E4FHReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.4 LReference

Bore/Stroke87 x 102 mmReference

EmissionsTier IVReference

Power (gross)45.0 kWReference

Fuel systemcommon rail direct injectionReference

Air cleanerdryReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed power shuttleReference

hydrostaticReference

Gear Ground clearance29 cmReference

Typepower shuttleReference

Gears12 forward and reverseReference

Four synchronized gears in three ranges with power shuttle.Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

Gear PTO (claimed)35.0 kWReference

Hydro PTO (claimed)33.3 kWReference

Typeopen centerReference

Gear Pump flow48.1 lpmReference

Hydro Pump flow47.7 lpmReference

Steering flow26.9 lpmReference

Rear TypeII/IReference

Gear Rear lift (at ends)1700 kgReference

Hydro Rear lift (at ends)1579 kgReference

Gear Rear lift (at 24"/610mm)1500 kgReference

Hydro Rear lift (at 24"/610mm)1399 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2023Reference

Dimensions

Weight4288 to 4674 poundsReference

Front tire9.5-16Reference

Rear tire13.6-28Reference

Standard tires (ag)Front: 9.5-16. Rear: 13.6-28Reference

Optional tires (ag)Front: 9.5-16. Rear: 16.9-24Reference

Lawn/turf front27x10.50-15Reference

Lawn/turf rear44x18.00-20Reference

Industrial front10-16.5Reference

Industrial rear14.9-24Reference

Industrial rear17.5L-24Reference

Length341 cmReference

Width181 cmReference

Height (ROPS)261 cmReference

Height (cab)236 cmReference

ROPS Weight1945 kgReference

Cab Weight2120 kgReference

Hydro Ground clearance35 cmReference

Massey Ferguson 2860M attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Massey Ferguson CB85 Backhoe

Backhoe typeMassey Ferguson CB85 BackhoeReference

Transport height220 cmReference

Digging depth254 cmReference

Reach from pivot330 cmReference

Loading height193 cmReference

Bucket Rotation180°Reference

Swing Arc175°Reference

Bucket force1847 kgReference

Dipperstick force1188 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
