Tractor · 1994Unverified

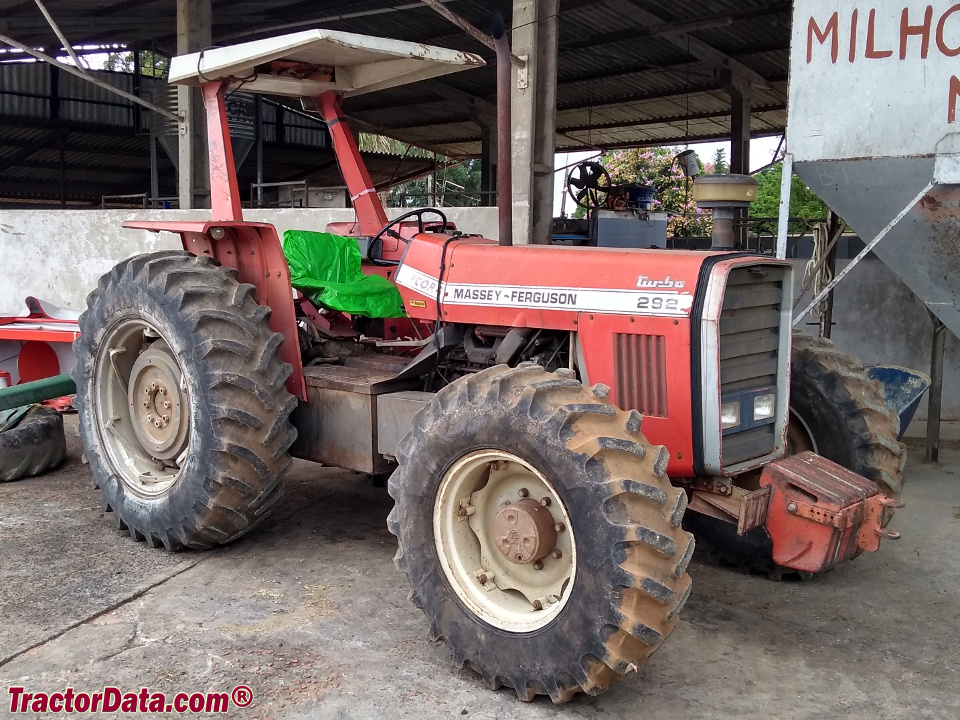

Massey Ferguson 292
Massey Ferguson 292 — Row-Crop tractor · 94 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
94 hp
Weight
6819 to 7180 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Built in Canoas, BrazilReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post fixed ROPS.Reference
Engine
Perkins 4.1L 4-cyl dieselReference
Engine78.3 kWReference
Perkins 4000TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke101 x 127 mmReference
Power78.3 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression17.5:1Reference
Rated RPM2200Reference
Torque402.7 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)69.7 kWReference
Pump flow42.0 lpmReference
Rear lift3200 kgReference
Rear PTOliveReference
Rear PTOindependentReference
Clutchmechanical (live)Reference
Clutchhydraulic (independent)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1683Reference
Engine RPM1000@1683Reference
Dimensions
2WD Wheelbase228 cmReference
4WD Wheelbase236 cmReference
Weight6819 to 7180 poundsReference
Front tire9.00-16Reference
2WD Rear tire18.4-34Reference
2WD Standard tires (ag)Front: 9.00-16. Rear: 18.4-34Reference
4WD Standard tires (ag)Front: 14.9-24. Rear: 18.4-34Reference
2WD Optional tires (ag)Front: 9.00-16. Rear: 23.1-26Reference
2WD Optional tires (ag)Front: 10.00-16. Rear: 23.1-30Reference
4WD Optional tires (ag)Front: 14.9-24. Rear: 23.1-26Reference
4WD Optional tires (ag)Front: 14.9-26. Rear: 23.1-30Reference
4WD Optional tires (ag)Front: 14.9-28. Rear: 23.1-30Reference
2WD Length367 cmReference
4WD Length383 cmReference
Width199 cmReference
Height (ROPS)266 cmReference
Rear tread152 to 233 cmReference
2WD3093 kgReference
4WD3256 kgReference
2WD Ballasted4320 kgReference
4WD Ballasted6000 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps35Reference
Battery volts12Reference
Battery AH90Reference
Speeds
With 18.4-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
