Tractor · 1982Unverified

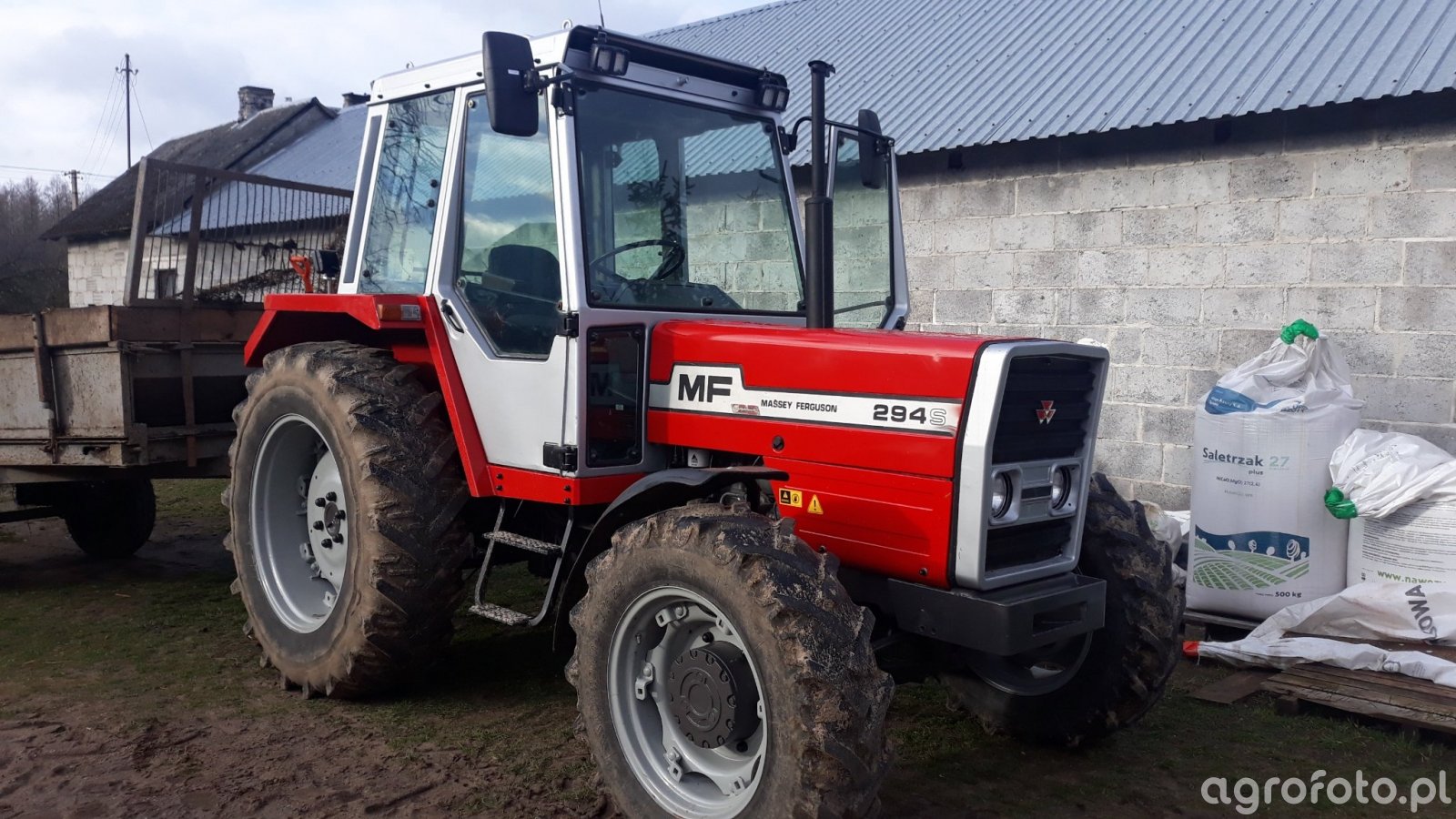

Massey Ferguson 294
Massey Ferguson 294 — 204 Series · 67 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
67 hp
Max power
41.2 kW
Weight
3048 kg
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerLandiniReference
Utility tractorReference
Built in ItalyReference
Original price was $27,000 in 1987Reference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Differential mechanical dry disc brakesReference
Two-post ROPS.Reference
Variants
8830similar Landini modelReference
293similar Massey Ferguson modelReference
Engine
Perkins 4.1L 4-cyl dieselReference
Fuel tank60.6 LReference
Drawbar (tested)41.2 kWReference
Perkins A4.248Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke101 x 127 mmReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Compression16:1Reference
Rated RPM2100Reference
Starter volts12Reference
Power at rated engine speed50.3 kWReference
Max power41.2 kWReference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
Clutch11-inch dual dry discReference
Four gears in three ranges, plus reverse range.Reference
PTO & Hydraulics
PTO (claimed)50.0 kWReference
PTO (tested)50.3 kWReference
Typeopen centerReference
Valves2Reference
Pump flow35.6 lpmReference
Rear TypeIIReference
Controldraft and position controlReference
Rear lift (at 24"/610mm)1664 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1944Reference
Front PTOdirect-driveReference
Front PTO Type2250Reference
Power at rated PTO speed48.4 kWReference
Dimensions
Wheelbase221 cmReference
Weight3048 kgReference
Front tire12.4x24Reference
Rear tire18.4x30Reference
Standard tires (ag)Front: 12.4x24. Rear: 18.4x30Reference
Operating weight3048 kgReference
Ballasted weight3921 kgReference
Clearance (front axle)41 cmReference
Front tread156 cmReference
Rear tread154 to 205 cmReference
294 Serial Numbers
Location:Plate on the bottom-left side of the tractor's instrument panel.Reference
19822235938Reference
19832236290Reference
19842236511Reference
198522300915Reference
198622301652Reference
198722302505Reference
198822303121Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 12-speed 4WDMay 9 - 20, 1983Link: Nebraska Tractor Test 1480 fileReference
PTO performanceReference
Fuel use14.8 l/hourReference
Fuel use14.0 l/hourReference
Drawbar performanceReference
Fuel use14.4 l/hourReference
Gear 8 used for power test.Reference
Max pull2569 kgReference
Gear 6 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
