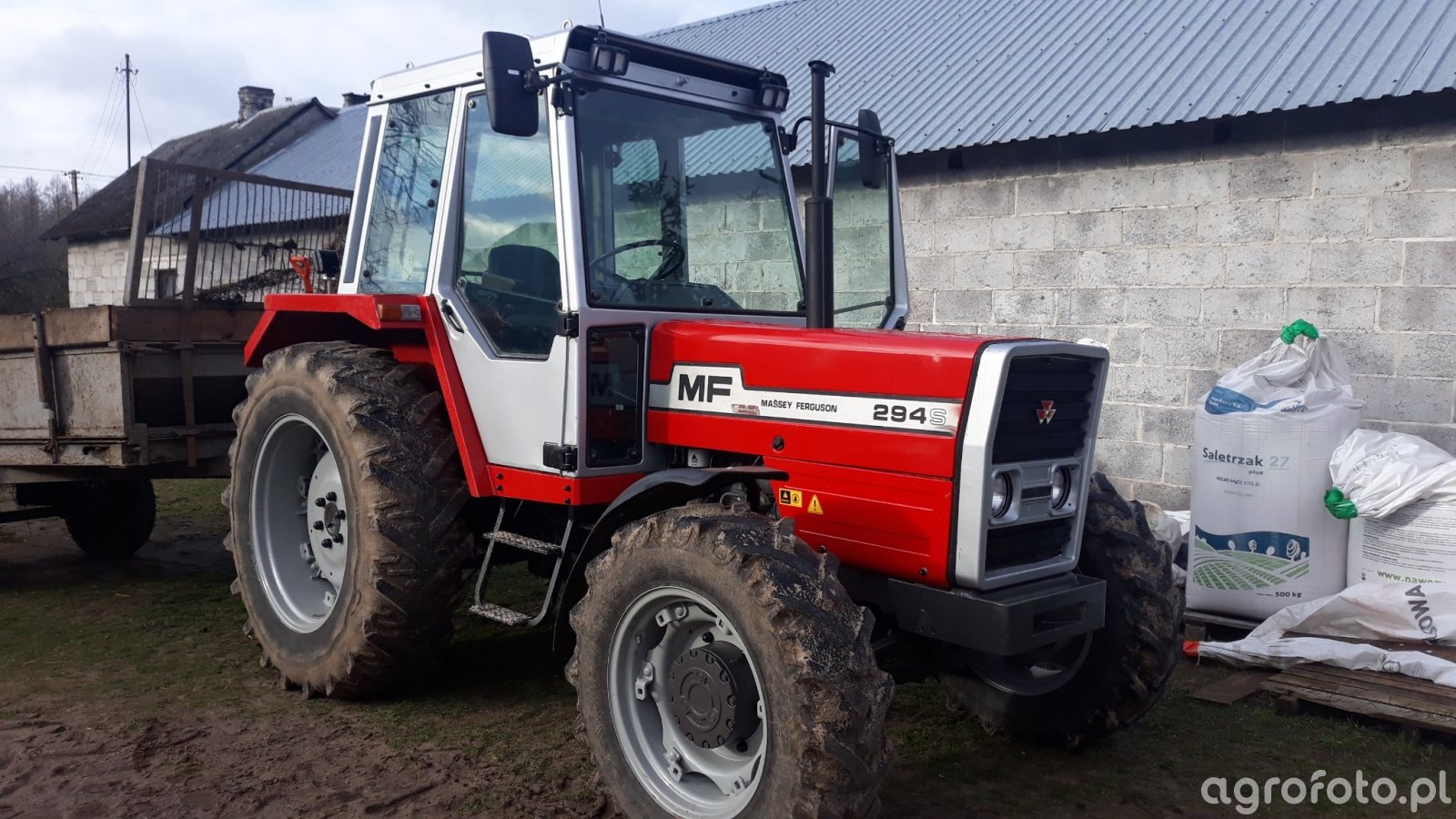

The Massey Ferguson 294S is a tractor with a rated output of 75 hp, placing it in the middle of its class for power. Manufactured from 1983 to 1987, this tractor features a 4-cylinder diesel liquid-cooled engine driving power through four-wheel drive via a hydrostatic transmission. Its listed weight ranges from 7144 to 7387 pounds, and it is designed for use on plots of around 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
7144 to 7387 pounds
Catalogue coverage
Variants represented
2
Richest spec table
37 rows
Recorded power
75 hp
Recorded weight
3240 kg
Transmissions
12-speed
Production years
1983-1987
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerLandiniReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab optional.Reference
Engine
Perkins 4.1L 4-cyl dieselReference
Fuel tank120.0 LReference
Engine55.9 kWReference
Perkins A4.248Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke101 x 127 mmReference
Power55.9 kWReference
Rated RPM2200Reference
Torque277.0 NmReference
Torque RPM1380Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Total flow36.0 lpmReference
Rear TypeIIReference
Rear lift3001 kgReference
Rear lift3601 kgReference
Rear PTO Type540/1000/groundReference
Dimensions
Wheelbase242 cmReference
Weight7144 to 7387 poundsReference
Front tire7.50-20Reference
Rear tire16.9-34Reference
Ag front7.50-20Reference
Ag rear16.9-34Reference
Ag front12.4-24Reference
Length404 cmReference
Height256 cmReference
2WD Weight3240 kgReference
4WD Weight3350 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
