Tractor · 1983Unverified

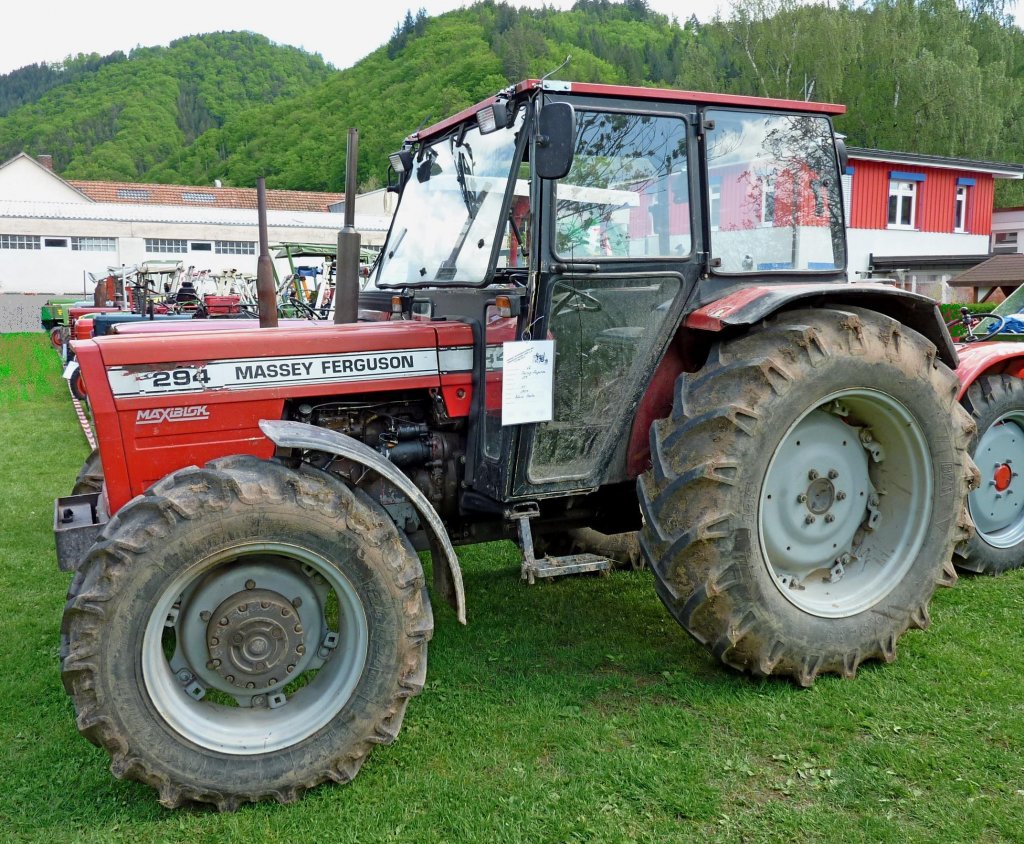

Massey Ferguson 294SK
Massey Ferguson 294SK · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
3480 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
standardReference
Engine
Perkins 4.1L 4-cylReference
Fuel tank120.0 LReference
Engine55.9 kWReference
Perkins A4.248Reference
4-cylinderReference
Displacement4.1 LReference
Bore/Stroke101 x 127 mmReference
Power55.9 kWReference
Rated RPM2200Reference
Torque277.0 NmReference
Torque RPM1380Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Total flow36.0 lpmReference
Rear lift3000 kgReference
Rear PTO Type540/1000/groundReference
Dimensions
Wheelbase242 cmReference
Weight3480 kgReference
Front tire12.4-24Reference
Rear tire16.9-34Reference
Ag front12.4-24Reference
Ag rear16.9-34Reference
Length404 cmReference
Height275 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
