Tractor · 2025Unverified
Massey Ferguson 2E.60
Massey Ferguson 2E.60 — 2E Series · 48 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
48 hp
Weight
1754 kg
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post folding ROPS.Reference
Engine
Iseki 2.4L 4-cyl dieselReference
Fuel tank53.0 LReference
Engine42.7 kWReference
IsekiReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke87 x 102 mmReference
Emission controlEGR, DOC and DPFReference
Power42.7 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed mechanical shuttleReference
hydrostaticReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)35.8 kWReference
Hydro PTO (claimed)33.8 kWReference
Typeopen centerReference
Pump flow47.7 lpmReference
Steering flow26.5 lpmReference
Rear TypeII/IReference
Rear lift (at ends)1199 kgReference
Rear lift (at 24"/610mm)1099 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Weight1754 kgReference
Length337 cmReference
Width178 cmReference
Height (ROPS)263 cmReference
Ground clearance38 cmReference
Massey Ferguson 2E.60 attachments

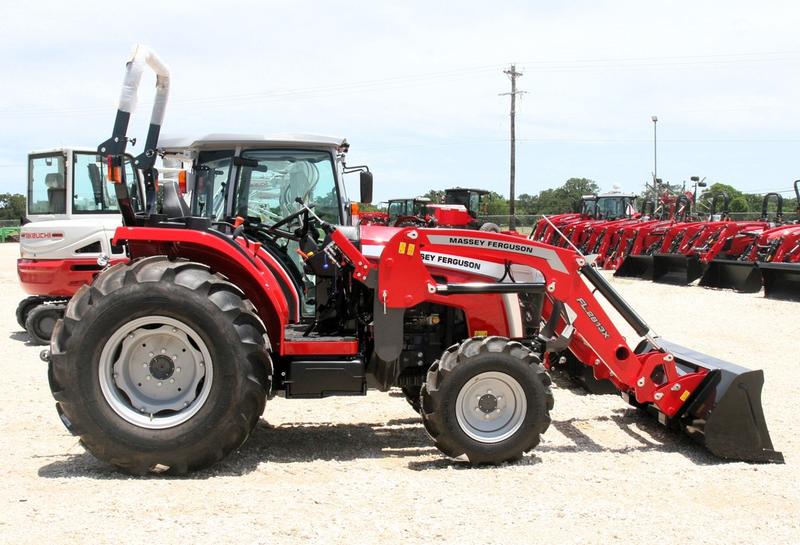

front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Massey Ferguson CB85 Backhoe
Backhoe typeMassey Ferguson CB85 BackhoeReference
Transport height220 cmReference
Digging depth254 cmReference
Reach from pivot330 cmReference
Loading height193 cmReference
Bucket Rotation180°Reference
Swing Arc175°Reference
Bucket force1847 kgReference
Dipperstick force539 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
