Tractor · 1986Unverified

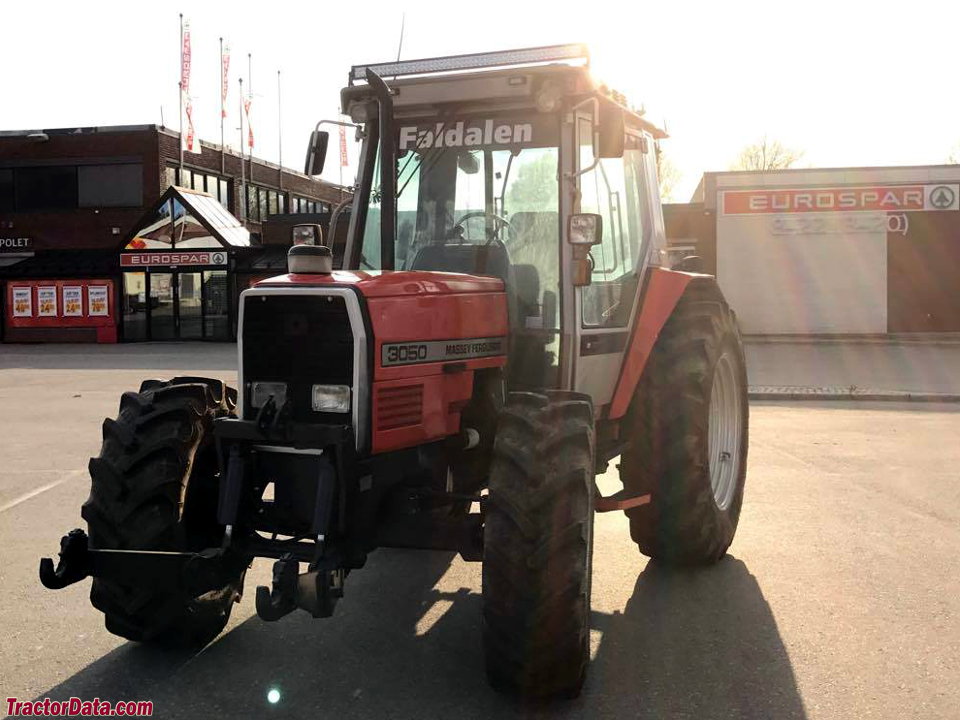

Massey Ferguson 3050

Name: Massey Ferguson 3050
Brand: Massey Ferguson

Massey Ferguson 3050 — Row-Crop tractor · 60 hp. Reference specifications; pending source verification.

The Massey Ferguson 3050 is a tractor with a rated output of 60 hp, a relatively compact model in its class. It was manufactured from 1986 to 1990. The tractor features a 4-cylinder diesel liquid-cooled engine and a powershift transmission, driving through four-wheel drive. Its listed weight ranges from 7529 to 9165 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

60 hp

Weight

7529 to 9165 pounds

Catalogue coverage

Variants represented

Richest spec table

74 rows

Recorded power

60 hp

Transmissions

16-speed fully synchronized

Production years

1986-1990

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Original price was $30,500 in 1990Reference

Two- or four-wheel driveReference

Final drivesinboard planetaryReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post fixed ROPS. Cab with optional air-conditioning.Reference

Engine

Perkins 3.9L 4-cyl dieselReference

Engine50.7 kWReference

Perkins A4.236Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.9 LReference

Power50.7 kWReference

Rated RPM2200Reference

Starter volts12Reference

Transmission

16-speed fully synchronizedReference

32-speed two-speed power shiftReference

Typefully synchronizedReference

Gears16 forward and reverseReference

Clutchhydraulic organic discReference

TransmissionSpeedShiftReference

Typetwo-speed power shiftReference

Gears32 forward and reverseReference

PTO & Hydraulics

PTO (claimed)44.7 kWReference

Hydraulic system60.2 LReference

Typeopen centerReference

Capacity60.2 LReference

Pressure180.0 barReference

Valves2 to 4Reference

Pump flow50.0 lpmReference

Rear TypeIIReference

Controlposition control and lower-link draft sensingReference

Rear lift (at ends)3595 kgReference

Rear lift (at 24"/610mm)2313 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Engine RPM540@1997Reference

Engine RPM1000@2000Reference

Capacities

Fuel147.6 LReference

Dimensions

2WD Wheelbase236 cmReference

4WD Wheelbase237 cmReference

Weight7529 to 9165 poundsReference

Front tire7.50-16Reference

2WD Rear tire16.9-30Reference

2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-30Reference

4WD Standard tires (ag)Front: 11.2-24. Rear: 16.9-30Reference

2WD Length399 cmReference

4WD Length402 cmReference

Width183 cmReference

2WD Clearance (front axle)55 cmReference

4WD Clearance (front axle)41 cmReference

Clearance (drawbar)36 cmReference

2WD Front tread138 to 219 cmReference

4WD Front tread143 to 192 cmReference

Rear tread143 to 213 cmReference

2WD ROPS3415 kgReference

2WD Cab3881 kgReference

4WD ROPS3690 kgReference

4WD Cab4157 kgReference

2WD Steering wheel193 cmReference

4WD Steering wheel195 cmReference

Massey Ferguson 3050 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps55Reference

Batteries2Reference

Battery CCA420Reference

Battery volts12Reference

Massey Ferguson 3050 Height

Cab260 cmReference

Exhaust261 cmReference

Speeds

With 16.9/14-38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
