Tractor · 1986Unverified

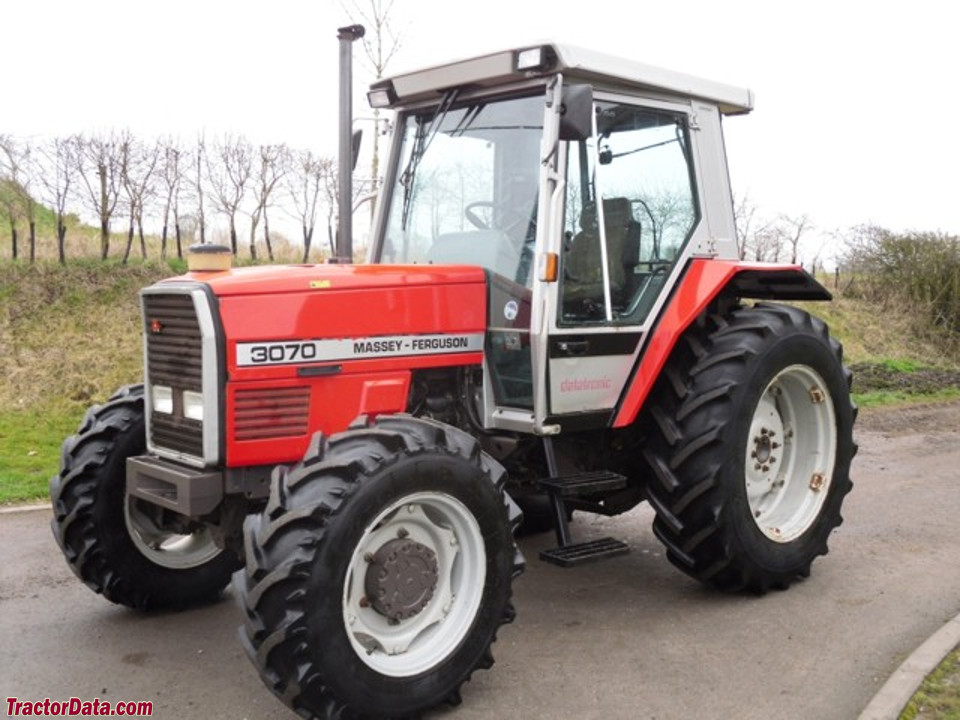

Massey Ferguson 3070
Massey Ferguson 3070 — Row-Crop tractor · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
9652 to 10192 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Original price was $41,800 in 1992Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Perkins 3.9L 4-cyl dieselReference
Perkins AT4.236Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Rated RPM2200Reference
Torque343.1 NmReference
Torque RPM1400Reference
Starter volts12Reference
Transmission
16-speed fully synchronizedReference
32-speed two-speed power shiftReference
Typefully synchronizedReference
Gears16 forward and reverseReference
Clutchhydraulic cerametallic discReference
TransmissionSpeedShiftReference
Typetwo-speed power shiftReference
Gears32 forward and reverseReference
PTO & Hydraulics
PTO (claimed)59.7 kWReference
Hydraulic system60.2 LReference
Typeopen centerReference
Capacity60.2 LReference
Pressure180.0 barReference
Valves2 to 4Reference
Pump flow50.0 lpmReference
Rear TypeIIReference
Controlposition control and lower-link draft sensingReference
Rear lift (at ends)4815 kgReference
Rear lift (at 24"/610mm)3129 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Capacities
Fuel189.2 LReference
Dimensions
2WD Wheelbase246 cmReference
4WD Wheelbase246 cmReference
Weight9652 to 10192 poundsReference
Front tire10.00-16Reference
Rear tire18.4-34 (2WD)Reference
Standard tires (ag)Front: 10.00-16. Rear: 18.4-34 (2WD)Reference
Standard tires (ag)Front: 14.9-24. Rear: 18.4-34 (4WD)Reference
2WD Length408 cmReference
4WD Length418 cmReference
Width198 cmReference
2WD Weight4378 kgReference
4WD Weight4623 kgReference
2WD Clearance (front axle)61 cmReference
4WD Clearance (front axle)400 cmReference
Clearance (drawbar)41 cmReference
2WD Front tread154 to 233 cmReference
4WD Front tread158 to 207 cmReference
Rear tread153 to 214 cmReference
2WD Steering wheel204 cmReference
4WD Steering wheel203 cmReference
Massey Ferguson 3070 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Batteries2Reference
Battery CCA420Reference
Battery volts12Reference
Massey Ferguson 3070 Height
Cab275 cmReference
Exhaust270 cmReference
Speeds
With 16.9/14-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
