Tractor · 1986Unverified

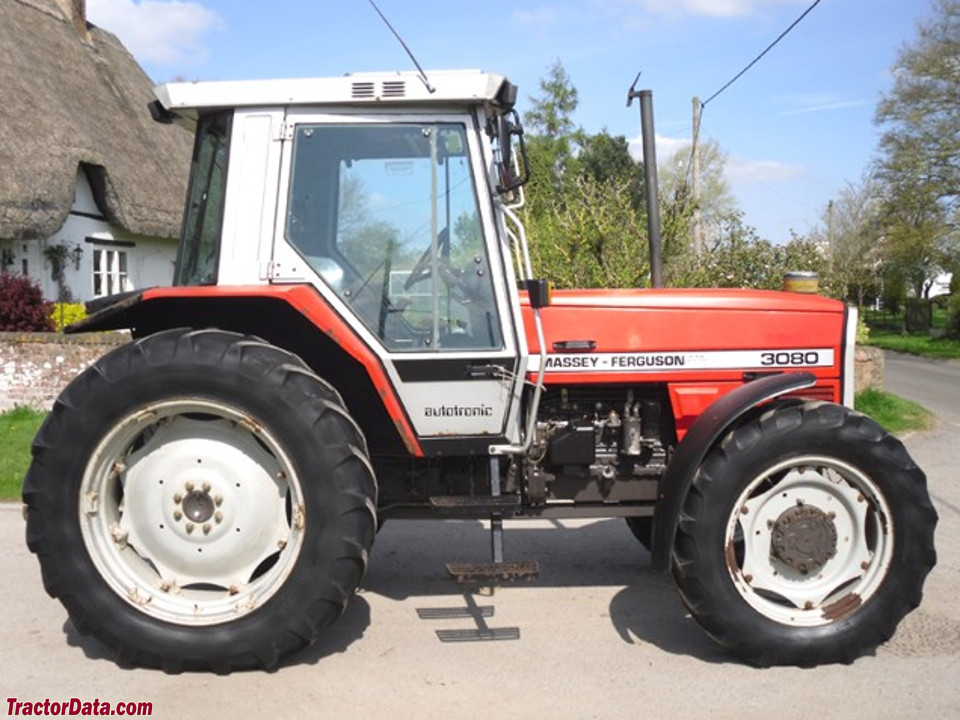

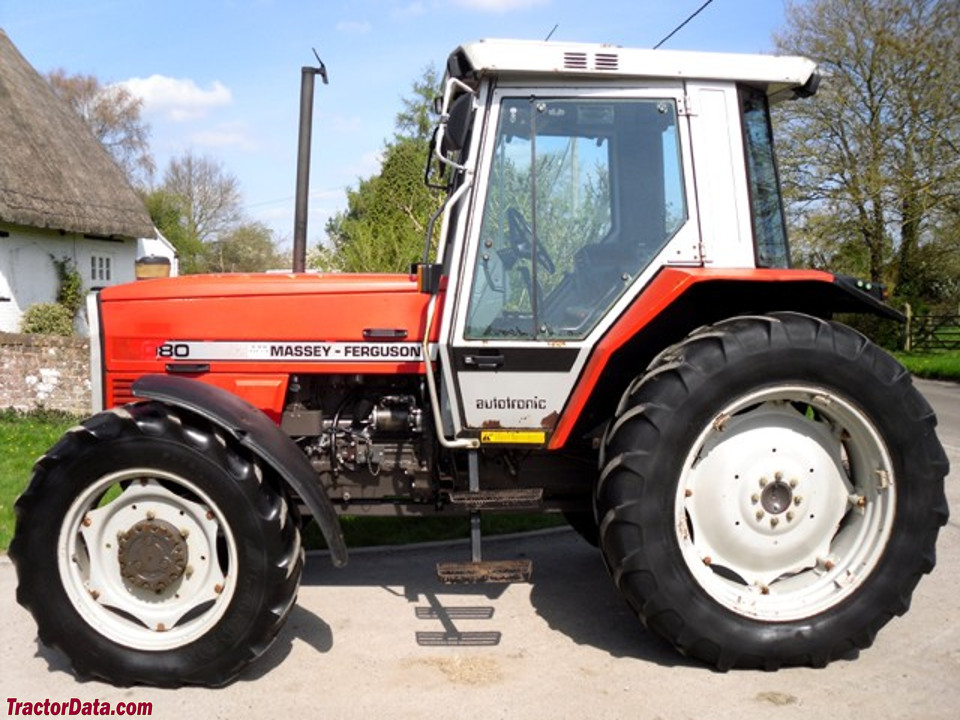

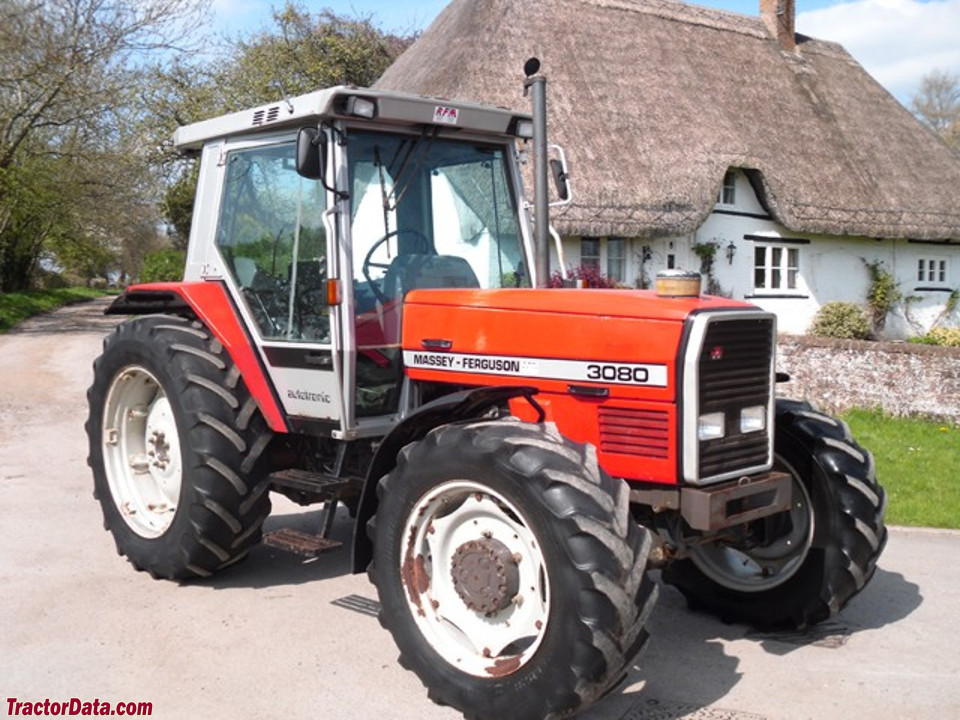

Massey Ferguson 3080
Massey Ferguson 3080 · 96 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
96 hp
Weight
9200 to 9700 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Engine
Perkins 5.8L 6-cyl dieselReference
Fuel tank189.2 LReference
Engine71.4 kWReference
Perkins A6.354Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.8 LReference
Bore/Stroke98 x 127 mmReference
Power71.4 kWReference
Rated RPM2200Reference
Transmission
32-speedReference
Gears32 forward and reverseReference
PTO & Hydraulics
Rear PTO Type540/1000Reference
Dimensions
Weight9200 to 9700 poundsReference
Front tire11.00-16Reference
2WD Rear tire16.9R38Reference
2WD Standard tires (ag)Front: 11.00-16. Rear: 16.9R38Reference
4WD Standard tires (ag)Front: 13.6R28. Rear: 16.9R38Reference
Length447 cmReference
Height (cab)277 cmReference
2WD Weight4173 kgReference
4WD Weight4399 kgReference
Massey Ferguson 3080 attachments
front-end loaderReference
Attachment overview
The model 856 loader was specified for tractors with four-wheel drive.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
