Tractor · 1990Unverified

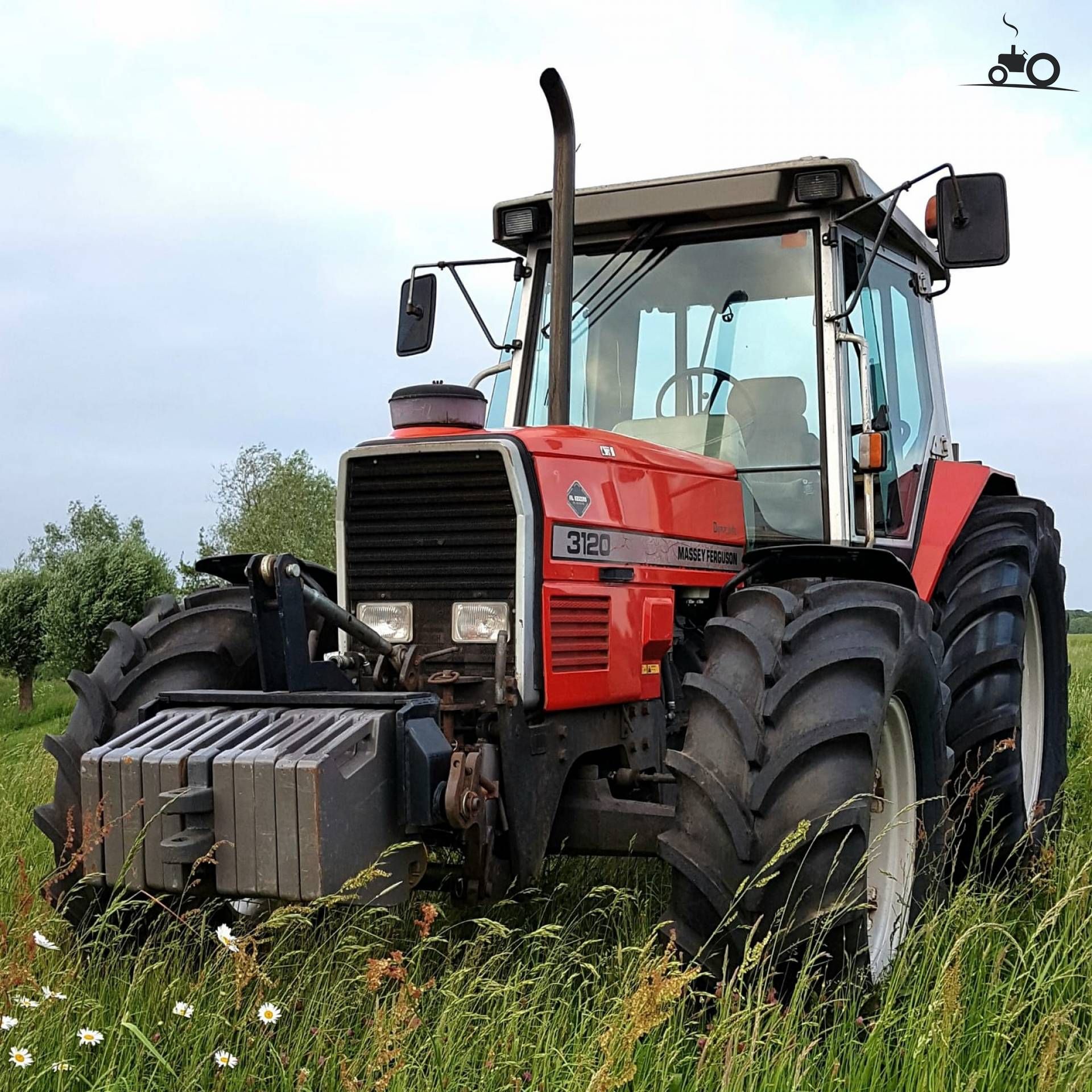

Massey Ferguson 3120
Massey Ferguson 3120 — Row-Crop tractor · 104 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
104 hp
Max power
68.3 kW
Weight
10329 to 10869 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Original price$48,000 (1992)Reference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard Autotronic standard. Optional Datatronics.Reference
Engine
Perkins 6.0L 6-cyl dieselReference
Drawbar (tested)68.3 kWReference
Perkins Quadram 1000Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
Cooling systemviscous fan driveReference
Air cleanerdual dryReference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity18.9 LReference
Coolant capacity25.0 LReference
Power at rated engine speed77.7 kWReference
Max power68.3 kWReference
Transmission
32-speed two-speed power shiftReference
Typetwo-speed power shiftReference
Gears32 forward and reverseReference
Clutch330mm discReference
Sixteen-speed synchronized shuttle transmission with two-speed power shift.Reference
PTO & Hydraulics
PTO (claimed)74.6 kWReference
PTO (tested)77.7 kWReference
Hydraulic system64.0 LReference
Typeopen centerReference
Capacity64.0 LReference
Pressure180.0 barReference
Valves2Reference
Pump flow50.0 lpmReference
Rear TypeIIReference
Controlposition and electronic draft controlReference
Rear lift (at 24"/610mm)2916 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Capacities
Fuel170.3 LReference
Dimensions
2WD Wheelbase269 cmReference
4WD Wheelbase269 cmReference
Weight10329 to 10869 poundsReference
Front tire11.00-16Reference
Rear tire18.4R38 (2WD)Reference
Standard tires (ag)Front: 11.00-16. Rear: 18.4R38 (2WD)Reference
Standard tires (ag)Front: 13.6R28. Rear: 18.4R38 (4WD)Reference
2WD Length431 cmReference
4WD Length447 cmReference
Width198 cmReference
2WD Height (cab)271 cmReference
4WD Height (cab)276 cmReference
2WD Weight4685 kgReference
4WD Weight4930 kgReference
Ground clearance43 cmReference
Massey Ferguson 3120 attachments
front-end loaderReference
3120 Serial Numbers
Location:Behind the tractor cab on the right side.Reference
1990R001001Reference
1991S001001Reference
1992A001001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 32-speed 4WDOctober 1990 - 1990,Reference
PTO performanceReference
Fuel use22.3 l/hourReference
Drawbar performanceReference
Fuel use23.5 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
