Tractor · 1993Unverified

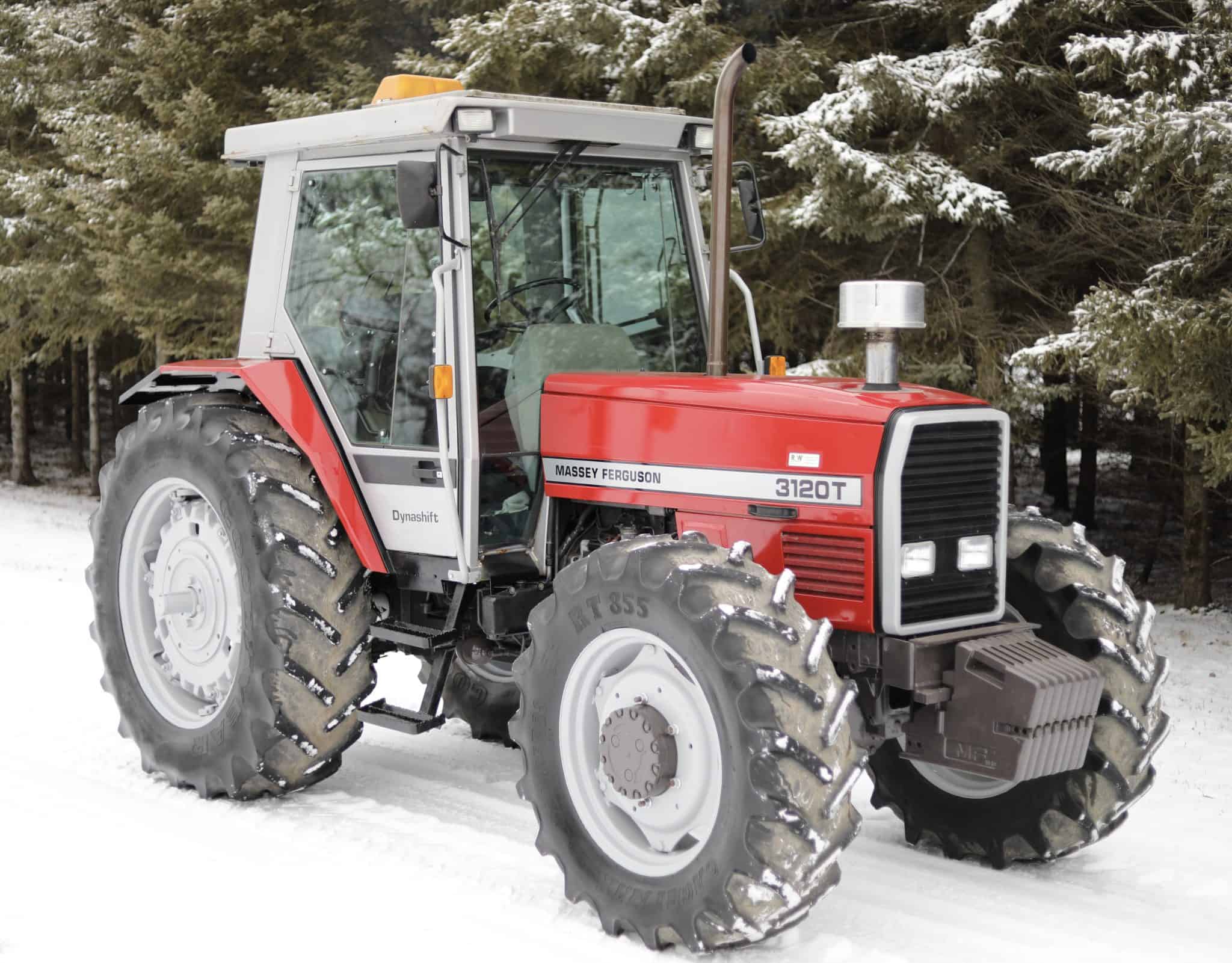

Massey Ferguson 3120T

Name: Massey Ferguson 3120T
Brand: Massey Ferguson

Massey Ferguson 3120T — Row-Crop tractor · 110 hp. Reference specifications; pending source verification.

The Massey Ferguson 3120T is a tractor with a rated power output of 110 hp, a mid-range figure for its class. It was manufactured from 1993 to 1997 and features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with mechanical front-wheel drive and a hydrostatic transmission. The operating weight of the 3120T ranges from 10313 to 11233 pounds. It is suitable for use on operations covering 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

110 hp

Weight

10313 to 11233 pounds

Catalogue coverage

Variants represented

Richest spec table

70 rows

Recorded power

110 hp

Recorded weight

4677 kg

Transmissions

16-speed two-speed power shift

Production years

1993-1997

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Built in Beauvais, FranceReference

Original price$47,000 (1997)Reference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Cab standard. Autotronic standard. Optional Datatronics.Reference

Engine

Perkins 6.0L 6-cyl dieselReference

Perkins Quadram 1000Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.0 LReference

Bore/Stroke100 x 127 mmReference

Cooling systemviscous fan driveReference

Rated RPM2200Reference

Starter volts12Reference

Coolant capacity25.0 LReference

Transmission

16-speed two-speed power shiftReference

32-speed four-speed power shiftReference

TransmissionSpeedshiftReference

Typetwo-speed power shiftReference

Gears16 forward and reverseReference

Clutch330mm discReference

Eight-speed synchronized shuttle transmission with two-speed power shift.Reference

TransmissionDynashiftReference

Typefour-speed power shiftReference

Gears32 forward and reverseReference

Four synchronized gears in two ranges, with a four-range power shift. Synchronized shuttle shift.Reference

PTO & Hydraulics

PTO (claimed)82.0 kWReference

Hydraulic system64.0 LReference

Typeopen centerReference

Capacity64.0 LReference

Pressure180.0 barReference

Valves2Reference

Pump flow50.0 lpmReference

Rear TypeIIReference

Controlposition and electronic draft controlReference

Rear lift (at 24"/610mm)3628 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Capacities

Fuel174.1 LReference

Dimensions

2WD Wheelbase269 cmReference

4WD Wheelbase270 cmReference

Weight10313 to 11233 poundsReference

Front tire11.00-16Reference

Rear tire18.4R38 (2WD)Reference

Standard tires (ag)Front: 11.00-16. Rear: 18.4R38 (2WD)Reference

Standard tires (ag)Front: 14.9R28. Rear: 18.4R38 (4WD)Reference

2WD Length452 cmReference

4WD Length458 cmReference

Width222 cmReference

Height (cab)288 cmReference

2WD Weight4677 kgReference

4WD Weight5095 kgReference

Ground clearance47 cmReference

Massey Ferguson 3120T attachments

front-end loaderReference

3120T Serial Numbers

Location:Behind the tractor cab on the right side.Reference

1993B001001Reference

1994C001001Reference

1995D001001Reference

1996E001001Reference

1997F001001Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

Massey Ferguson 848 loaderReference

Massey Ferguson 246 loaderReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
