Tractor · 1990Unverified

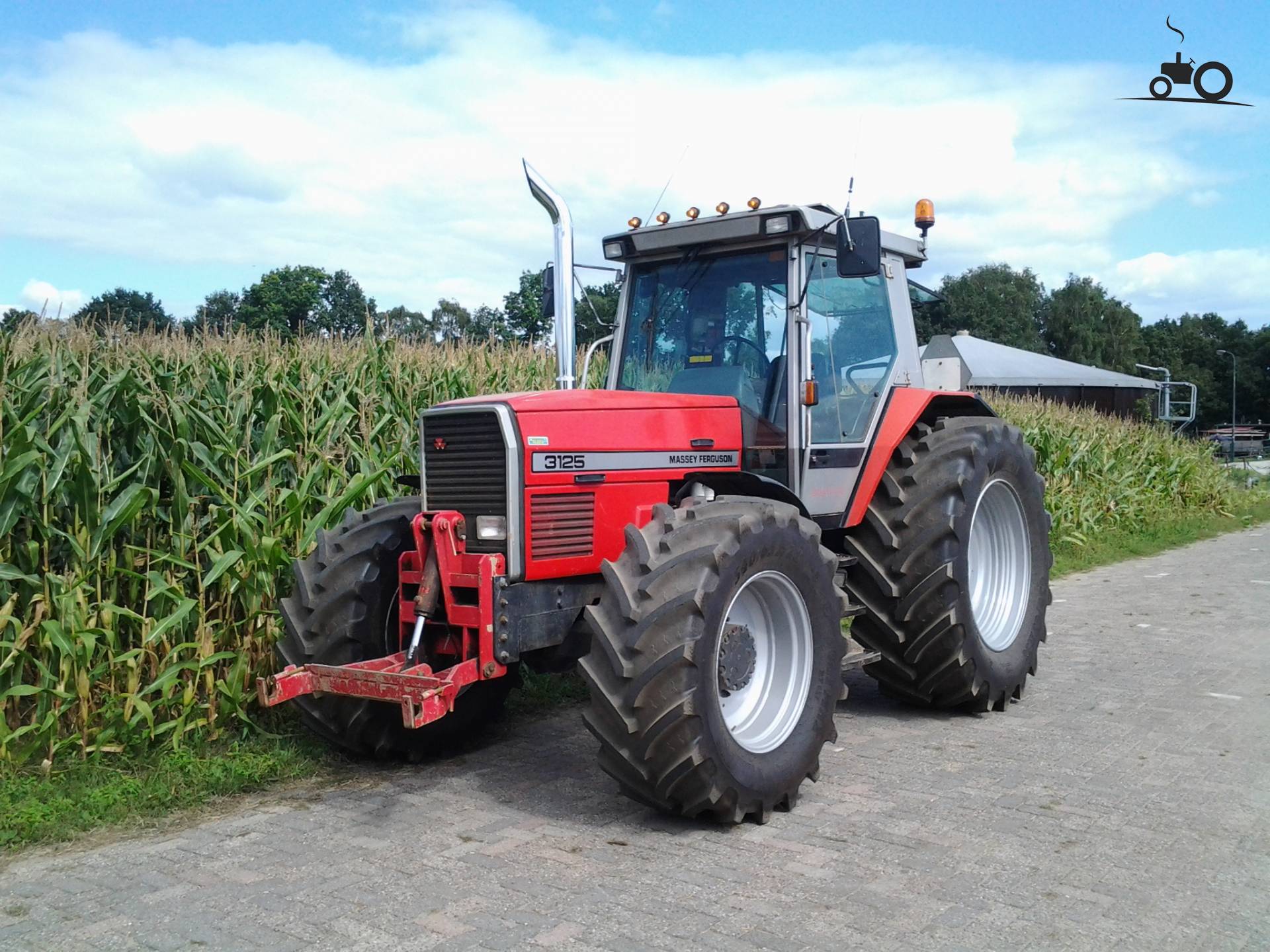

Massey Ferguson 3125
Massey Ferguson 3125 — Row-Crop tractor · 123 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
123 hp
Weight
5210 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Engine
Perkins 6.0L 6-cyl dieselReference
Engine92.0 kWReference
Perkins Quadram 1000Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
Power92.0 kWReference
Fuel systemdirect injectionReference
Rated RPM2200Reference
Torque474.1 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
32-speed four-speed power shiftReference
Gears16 forward and reverseReference
Clutch330mm cerametallic discReference
TransmissionDynashiftReference
Typefour-speed power shiftReference
Gears32 forward and reverseReference
The Dynashift became available on the 3125 beginning in 1992.Reference
Capacities
Fuel190.0 LReference
PTO & Hydraulics
Hydraulic system60.2 LReference
Capacity60.2 LReference
Pressure180.0 barReference
Pump flow50.0 lpmReference
Pump flow52.0 lpmReference
Rear TypeIIReference
Rear lift6500 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1997Reference
Engine RPM1000@2000Reference
Dimensions
Wheelbase270 cmReference
Weight5210 kgReference
Front tire14.9R28Reference
Rear tire18.4R38Reference
Standard tires (ag)Front: 14.9R28. Rear: 18.4R38Reference
Length458 cmReference
Width198 cmReference
Height (cab)293 cmReference
Front tread170 to 219 cmReference
Rear tread155 to 227 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
With 18.4-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
