Tractor · 1990Unverified

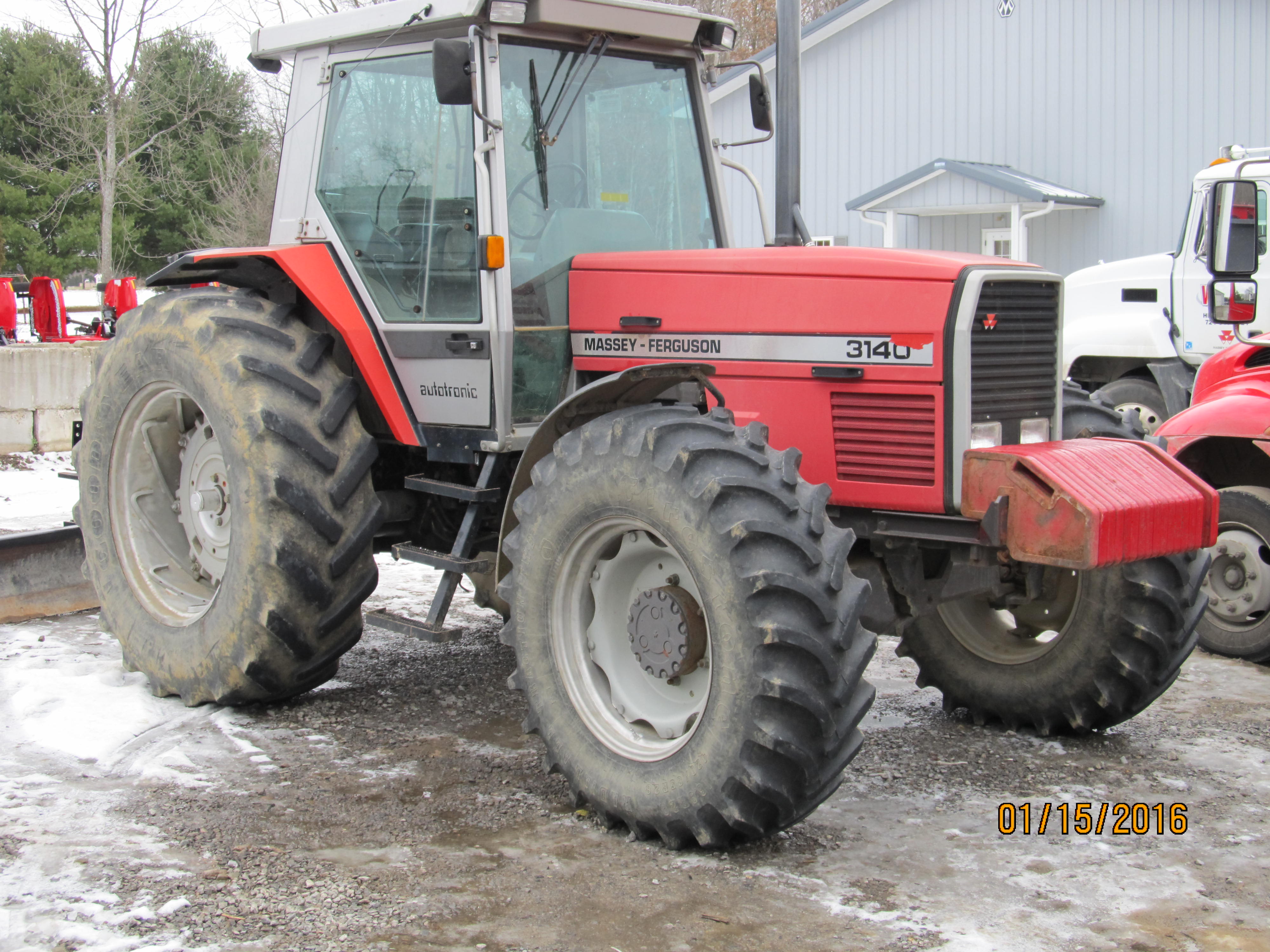

Massey Ferguson 3140
Massey Ferguson 3140 — Row-Crop tractor · 116 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
116 hp
Max power
78.8 kW
Weight
11153 to 11486 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Original price$52,500 (1995)Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Final drivesplanetaryReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard. Autotronic standard. Optional Datatronics.Reference
Engine
Perkins 6.0L 6-cyl dieselReference
Drawbar (tested)78.8 kWReference
Perkins Quadram 1000Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
Cooling systemviscous fan driveReference
Air cleanerdual dryReference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity18.9 LReference
Coolant capacity25.0 LReference
Power at rated engine speed86.4 kWReference
Max power78.8 kWReference
Transmission
16-speed two-speed power shiftReference
32-speed four-speed power shiftReference
TransmissionSpeedshiftReference
Typetwo-speed power shiftReference
Gears16 forward and reverseReference
Clutch330mm discReference
Eight-speed synchronized shuttle transmission with two-speed power shift.Reference
TransmissionDynashiftReference
Typefour-speed power shiftReference
Gears32 forward and reverseReference
The Dynashift transmission first became available as an option in 1993. Four synchronized gears in two ranges, with a four-range power shift. Synchronized shuttle shift.Reference
PTO & Hydraulics
PTO (claimed)85.8 kWReference
PTO (tested)86.4 kWReference
Hydraulic system64.0 LReference
Typeopen centerReference
Capacity64.0 LReference
Pressure180.0 barReference
Valves2Reference
Pump flow50.0 lpmReference
Rear TypeIIReference
Controlposition and electronic draft controlReference
Rear lift (at 24"/610mm)4445 kgReference
Rear lift (at 24"/610mm)3628 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed82.1 kWReference
Capacities
Fuel219.9 LReference
Dimensions
2WD Wheelbase269 cmReference
4WD Wheelbase269 cmReference
Weight11153 to 11486 poundsReference
Front tire11.00-16Reference
Rear tire18.4R38 (2WD)Reference
Standard tires (ag)Front: 11.00-16. Rear: 18.4R38 (2WD)Reference
Standard tires (ag)Front: 14.9R28. Rear: 18.4R38 (4WD)Reference
2WD Length453 cmReference
4WD Length458 cmReference
Width238 cmReference
Height (cab)292 cmReference
2WD Weight5059 kgReference
4WD Weight5210 kgReference
Ground clearance44 cmReference
Massey Ferguson 3140 attachments
front-end loaderReference
3140 Serial Numbers
Location:Behind the tractor cab on the right side.Reference
1990R001001Reference
1991S001001Reference
1992A001001Reference
1993B001001Reference
1994C001001Reference
1995D001001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Massey Ferguson 848 loaderReference
Massey Ferguson 246 loaderReference
Test results
Diesel 16-speed 4WDJanuary 1990 - 1990,Reference
PTO performanceReference
Fuel use24.2 l/hourReference
Drawbar performanceReference
Fuel use27.3 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
