Tractor · 1999Unverified

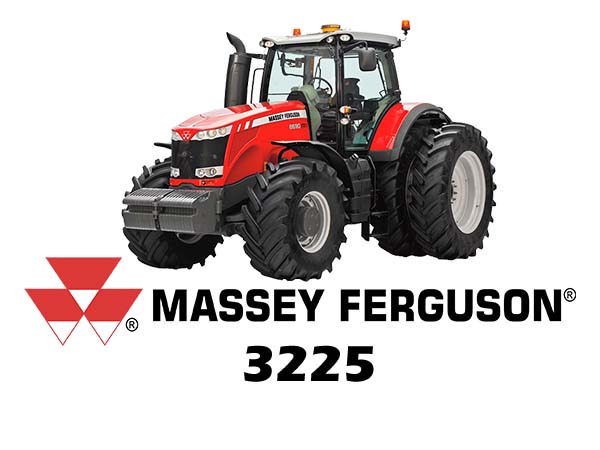

Massey Ferguson 3225
Massey Ferguson 3225 — Orchard/Vineyard tractor · 68 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
68 hp
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post mid-mount folding ROPS. Cab optional with air-conditioning.Reference
Engine
Perkins 4.0L 4-cyl dieselReference
3225S Fuel tank62.8 LReference
3225GE Fuel tank45.0 LReference
Engine50.7 kWReference
Perkins 1004.40Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke100 x 127 mmReference
Power50.7 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Pre-heatingthermostartReference
Compression18.5:1Reference
Rated RPM2200Reference
Idle RPM750-2310Reference
Torque263.1 NmReference
Torque RPM1300Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Intake valve clearance0.203 mmReference
Exhaust valve clearance0.457 mmReference
Transmission
12-speed partially synchronizedReference
24-speed creeperReference
Typepartially synchronizedReference
Gears12 forward and reverseReference
Clutch279.4mm dry discReference
Four synchronized gears (1-4) in three ranges. Gears may be shifted on the move with the clutch. Tractor must be stopped, and clutch used, to shift range or shuttle.Reference
TypecreeperReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure170.0 barReference
Pump flow53.0 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2600 kgReference
Rear PTOindependentReference
Clutchdry discReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type540/540EReference
Engine RPM540@1944Reference
Engine RPM540E@1375Reference
Engine RPM1000@1916Reference
Dimensions
2WD Wheelbase205 cmReference
4WD Wheelbase201 cmReference
Front tire7.50-16Reference
3225S 2WD Rear tire14.9R24Reference
3225S 2WD Standard tires (ag)Front: 7.50-16. Rear: 14.9R24Reference
3225S 4WD Standard tires (ag)Front: 280/70-18. Rear: 14.9R24Reference
3225GE 2WD Standard tires (ag)Front: 9.00-10. Rear: 14.9LR20Reference
3225GE 4WD Standard tires (ag)Front: 9.0/75-16. Rear: 14.9LR20Reference
3225F 2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9R24Reference
3225F 4WD Standard tires (ag)Front: 275/80-18. Rear: 16.9R24Reference
3225FA 2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9R24Reference
3225FA 4WD Standard tires (ag)Front: 275/80-18. Rear: 16.9R24Reference
Length390 cmReference
3225S Steering wheel145 cmReference
3225GE Steering wheel137 cmReference
3225F Steering wheel145 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Battery AH95Reference
Massey Ferguson 3225 Height
3225S Hood128 cmReference
3225GE Hood123 cmReference
3225F Hood128 cmReference
3225S ROPS259 cmReference
3225GE ROPS234 cmReference
3225F ROPS259 cmReference
Cab226 cmReference
Speeds
With 13.6R-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
