Massey Ferguson 3307

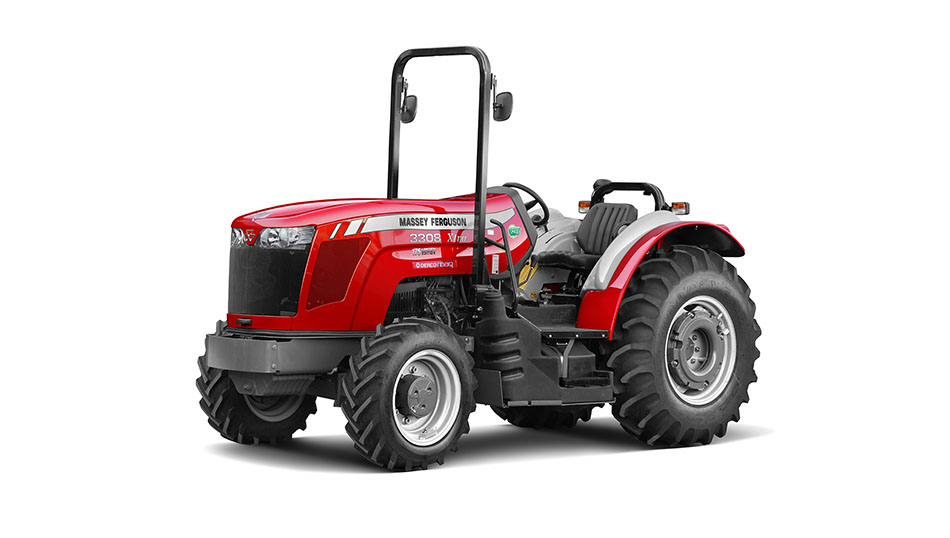

Massey Ferguson 3307 — Orchard/Vineyard tractor · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
6074 to 6715 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Power steeringReference
Two-post mid-mount folding ROPS. Cab optional with air-conditioning.Reference
Engine
AGCO Power 3.3L 3-cyl dieselReference
Fuel tank85.2 LReference
Engine55.9 kWReference
AGCO Power 33 CWIC3Reference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
Power55.9 kWReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
18-speed creeperReference
Gears12 forward and 4 reverseReference
TypecreeperReference
Gears18 forward and 4 reverseReference
PTO & Hydraulics
Pressure180.0 barReference
Pump flow31.0 lpmReference
Pump flow42.0 lpmReference
Pump flow59.0 lpmReference
Steering flow31.0 lpmReference
ControlII/IReference
Rear lift2100 kgReference
Rear PTOindependentReference
Clutchmechanical discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1900Reference
Dimensions
Wheelbase230 cmReference
Weight6074 to 6715 poundsReference
Front tire7.50-16Reference
2WD Rear tire14.9x24Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 14.9x24Reference
4WD Standard tires (ag)Front: 250/80-18. Rear: 14.9x24Reference
Length376 cmReference
Height (ROPS)232 cmReference
Height (Folded ROPS)161 cmReference
Height (cab)235 cmReference
Clearance (drawbar)29 cmReference
2WD ROPS2755 kgReference
4WD ROPS2899 kgReference
4WD Cab3045 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
