Tractor · 2001Unverified

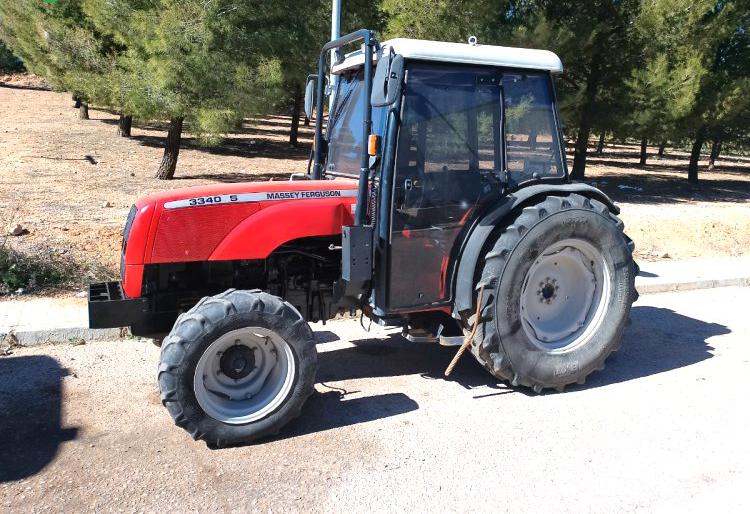

Massey Ferguson 3340

Name: Massey Ferguson 3340
Brand: Massey Ferguson

Massey Ferguson 3340 — Orchard/Vineyard tractor · 79 hp. Reference specifications; pending source verification.

The Massey Ferguson 3340 is a tractor with a rated output of 79 hp, positioning it in the middle of its class in terms of power. It was manufactured from 2001 to 2003 and is equipped with a 4-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a powershift transmission. The tractor's listed weight ranges from 4740 to 5512 pounds, and it is designed for use on areas of approximately up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

79 hp

Weight

4740 to 5512 pounds

Catalogue coverage

Variants represented

Richest spec table

84 rows

Recorded power

79 hp

Transmissions

16-speed sync shuttle

Production years

2001-2003

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Orchard/Vineyard tractorReference

Two- or four-wheel driveReference

Differential lockhydraulic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Two-post mid-mount ROPS. Cab optional with available air-conditioning.Reference

Engine

Perkins 4.2L 4-cyl dieselReference

Fuel tank45.0 LReference

Fuel tank73.1 LReference

Engine59.0 kWReference

Perkins 1004.42Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.2 LReference

Bore/Stroke103 x 127 mmReference

EmissionsStage 1Reference

Power59.0 kWReference

Rated RPM2200Reference

Torque282.0 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed sync shuttleReference

24-speed sync shuttleReference

30-speed sync shuttleReference

36-speed power shiftReference

Typesync shuttleReference

Gears16 forward and 8 reverseReference

Clutchdry discReference

Gears24 forward and 12 reverseReference

Gears30 forward and 15 reverseReference

TransmissionTripleshiftReference

Typepower shiftReference

Gears36 forward and reverseReference

PTO & Hydraulics

Typeopen centerReference

Pressure180.0 barReference

Rear valves2 or 3Reference

Mid valves2Reference

Pump flow43.9 lpmReference

Pump flow51.9 lpmReference

Pump flow57.9 lpmReference

Rear TypeII/IReference

Controlposition and draft controlReference

Rear lift2600 kgReference

Front lift1500 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/540E (1.375)Reference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1967Reference

Engine RPM540E@1560Reference

Engine RPM1000@2043Reference

Front PTOindependentReference

Front PTO Type1000 (1.375)Reference

Dimensions

2WD Wheelbase208 cmReference

4WD Wheelbase210 cmReference

Weight4740 to 5512 poundsReference

Front tire6.50R16Reference

3340V 4WD Rear tire11.2R28Reference

3340V 4WD Standard tires (ag)Front: 6.50R16. Rear: 11.2R28Reference

3340S 2WD Standard tires (ag)Front: 7.50R16. Rear: 13.6R28Reference

3340S 4WD Standard tires (ag)Front: 7.50R20. Rear: 13.6R28Reference

3340F 2WD Standard tires (ag)Front: 7.50R16. Rear: 13.6R28Reference

3340F 4WD Standard tires (ag)Front: 8.25R16. Rear: 13.6R28Reference

3340GE 2WD Standard tires (ag)Front: 7.00R16. Rear: 320/70R24Reference

3340GE 4WD Standard tires (ag)Front: 240/70R16. Rear: 320/70R24Reference

Length385 cmReference

3340V Width100 cmReference

3340S Width119 cmReference

3340F Width139 cmReference

3340FE Width139 cmReference

3340GE Width128 cmReference

2WD ROPS2150 kgReference

4WD ROPS2349 kgReference

2WD Cab2300 kgReference

4WD Cab2500 kgReference

Steering wheel124 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Massey Ferguson 3340 Height

ROPS219 cmReference

Cab216 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
