Tractor · 2001Unverified

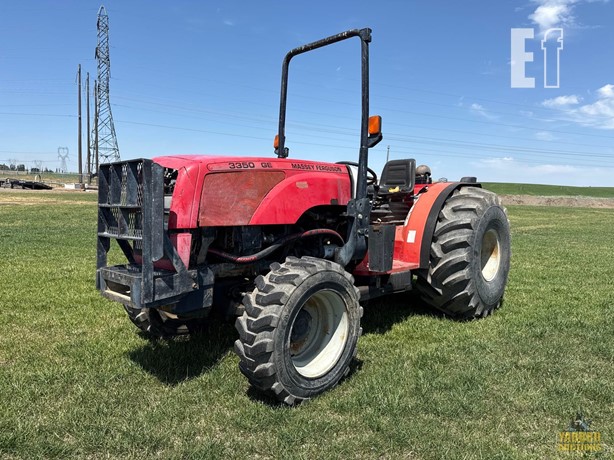

Massey Ferguson 3350
Massey Ferguson 3350 — Orchard/Vineyard tractor · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
4740 to 5512 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Differential lockhydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Two-post mid-mount ROPS. Cab optional with available air-conditioning.Reference
Engine
Perkins 4.0L 4-cyl dieselReference
Fuel tank45.0 LReference
Fuel tank73.1 LReference
Engine67.1 kWReference
Perkins 1004.40TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke100 x 127 mmReference
EmissionsStage 1Reference
Power67.1 kWReference
Rated RPM2200Reference
Torque362.6 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed sync shuttleReference
24-speed sync shuttleReference
30-speed sync shuttleReference
36-speed power shiftReference
Typesync shuttleReference
Gears16 forward and 8 reverseReference
Clutchdry discReference
Gears24 forward and 12 reverseReference
Gears30 forward and 15 reverseReference
TransmissionTripleshiftReference
Typepower shiftReference
Gears36 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure180.0 barReference
Rear valves2 or 3Reference
Mid valves2Reference
Pump flow43.9 lpmReference
Pump flow51.9 lpmReference
Pump flow57.9 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift2600 kgReference
Front lift1500 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540E (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1967Reference
Engine RPM540E@1560Reference
Engine RPM1000@2043Reference
Front PTOindependentReference
Front PTO Type1000 (1.375)Reference
Dimensions
2WD Wheelbase208 cmReference
4WD Wheelbase210 cmReference
Weight4740 to 5512 poundsReference
Front tire7.50R16Reference
3350S 2WD Rear tire13.6R28Reference
3350S 2WD Standard tires (ag)Front: 7.50R16. Rear: 13.6R28Reference
3350S 4WD Standard tires (ag)Front: 7.50R20. Rear: 13.6R28Reference
3350F 2WD Standard tires (ag)Front: 7.50R16. Rear: 13.6R28Reference
3350F 4WD Standard tires (ag)Front: 8.25R16. Rear: 13.6R28Reference
3350GE 2WD Standard tires (ag)Front: 7.00R16. Rear: 320/70R24Reference
3350GE 4WD Standard tires (ag)Front: 240/70R16. Rear: 320/70R24Reference
Length385 cmReference
3350S Width119 cmReference
3350F Width139 cmReference
3350FE Width150 cmReference
3350GE Width128 cmReference
2WD ROPS2150 kgReference
4WD ROPS2349 kgReference
2WD Cab2300 kgReference
4WD Cab2500 kgReference
Steering wheel131 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Massey Ferguson 3350 Height
ROPS226 cmReference
Cab223 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
