Tractor · 2005Unverified

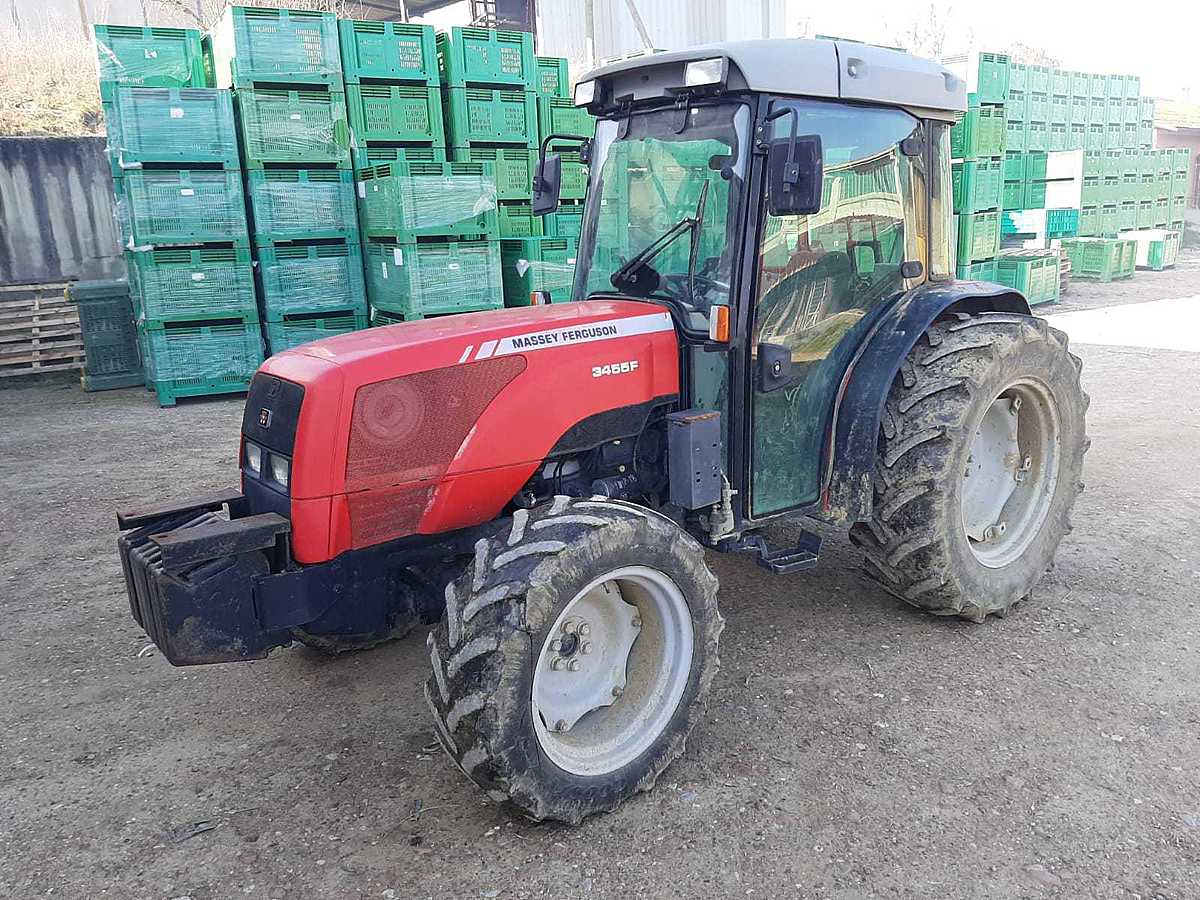

Massey Ferguson 3455
Massey Ferguson 3455 — Orchard/Vineyard tractor · 88 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
88 hp
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Orchard/Vineyard tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Two-post mid-mount foldable ROPS. Cab optional.Reference
Variants
3455FfruitReference
3455GEground effect low-profile modelReference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank73.1 LReference
Engine73.1 kWReference
Perkins 1104C-44TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
EmissionsTier IIReference
Power73.1 kWReference
Air cleanerdual dry elementReference
Rated RPM2200Reference
Torque97.5 NmReference
Torque RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
20-speedReference
30-speedReference
TransmissionSynchronozed shuttleReference
Gears20 forward and 10 reverseReference
Optional transmission.Reference
TransmissionSynch shuttle with creeperReference
Gears30 forward and 15 reverseReference
PTO & Hydraulics
PTO (claimed)65.6 kWReference
Pressure180.0 barReference
Valves2 to 3 rearReference
Valves2 mid optionalReference
Pump flow51.9 lpmReference
Pump flow62.1 lpmReference
Steering flow25.0 lpmReference
Rear Type1/2Reference
Rear lift (at ends)2600 kgReference
Rear lift (at 24"/610mm)1599 kgReference
Rear PTO Type540/540E/1000Reference
Dimensions
Wheelbase210 cmReference
Wheelbase215 cmReference
Front tire280/70R16Reference
Rear tire380/70R24Reference
Ag front280/70R16 (F)Reference
Ag front240/70R16 (GE)Reference
Ag rear380/70R24 (F)Reference
Ag rear380/70R20 (GE)Reference
Length375 cmReference
Width127 cmReference
Width143 cmReference
Massey Ferguson 3455 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Massey Ferguson 3455 Height
216 cmReference
213 cmReference
119 cmReference
203 cmReference
206 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
