Tractor · 1983Unverified

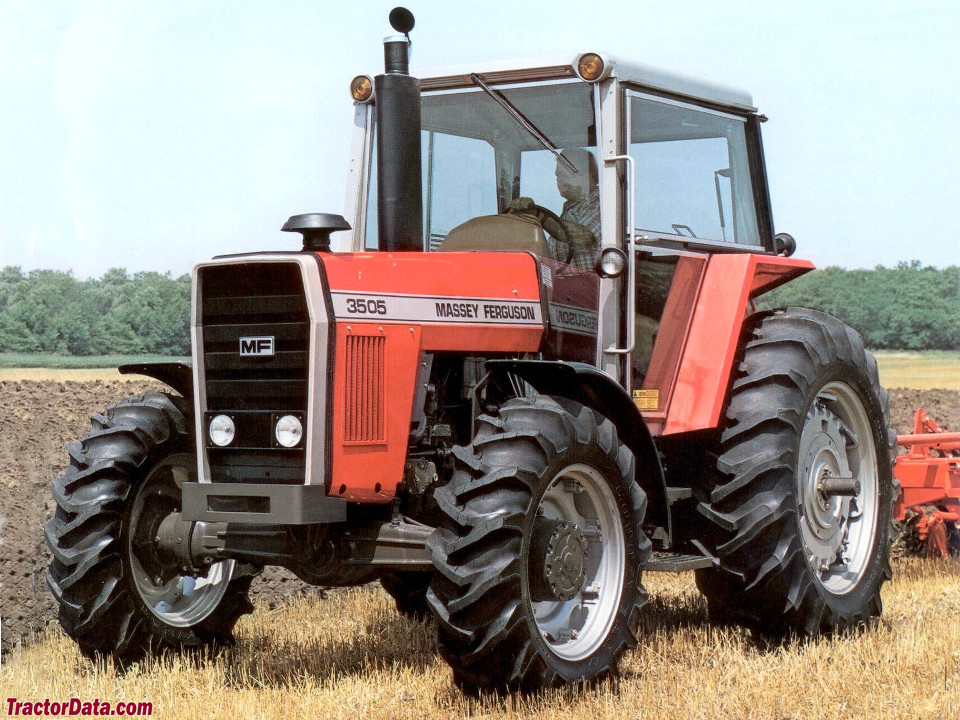

Massey Ferguson 3505

Massey Ferguson 3505 — Row-Crop tractor · 92 hp. Reference specifications; pending source verification.

The Massey Ferguson 3505 is a tractor with a rated power output of 92 hp. It was manufactured from 1983 to 1987. The tractor features a 6-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. Its operating weight is listed at 5867 kg, suitable for operations across 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
92 hp
Max power
55.3 kW
Weight
5867 kg

Catalogue coverage

Variants represented
2
Richest spec table
71 rows
Recorded power
92 hp
Recorded weight
5867 kg
Transmissions
16-speed partial power shift
Production years
1983-1987
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference
Row-Crop tractorReference
Built in FranceReference
Original price$38,000 (1987)Reference
Two- or four-wheel driveReference
Differential lockhydraulicReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference

Engine

Perkins 5.8L 6-cyl dieselReference
Engine82.0 kWReference
Drawbar (claimed)54.4 kWReference
Drawbar (tested)55.3 kWReference
PerkinsReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.8 LReference
Bore/Stroke98 x 127 mmReference
Power82.0 kWReference
Air cleanerdual paper elementsReference
Compression16:1Reference
Rated RPM2400Reference
Starter volts12Reference
Power at rated engine speed68.2 kWReference
Max power55.3 kWReference

Transmission

16-speed partial power shiftReference
Typepartial power shiftReference
Gears16 forward and 12 reverseReference
Four gears (1-4) in two ranges (low/high) plus two-speed push-button power shift. Manual shuttle. Shifts within range are synchronized.Reference

PTO & Hydraulics

PTO (claimed)67.1 kWReference
PTO (tested)68.2 kWReference
Typeopen centerReference
Pressure175.1 barReference
Valves2 or 3Reference
Pump flow56.8 lpmReference
Total flow111.7 lpmReference
Total flow54.9 lpmReference
Total flow56.8 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)3452 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed65.2 kWReference

Dimensions

Wheelbase271 cmReference
Weight5867 kgReference
Front tire10.00-16Reference
Rear tire18.4-38Reference
Ag front10.00-16Reference
Ag rear18.4-38Reference
Length469 cmReference
Width238 cmReference
Operating weight5867 kgReference
Ballasted weight5985 kgReference
Rear axle82 mmReference
Front tread154 to 215 cmReference
Front tread160 to 205 cmReference
Rear tread152 to 248 cmReference

Massey Ferguson 3505 attachments

front-end loaderReference

Attachment overview

Massey Ferguson 246 loaderReference
Massey Ferguson 856 loaderReference

Test results

Diesel 16-speed 4WDApril 17 - 27, 1984Link: Nebraska Tractor Test 1511 fileReference
PTO performanceReference
Fuel use24.2 l/hourReference
Fuel use21.2 l/hourReference
Drawbar performanceReference
Fuel use23.8 l/hourReference
Gear 10 used for power test.Reference
Max pull3784 kgReference
Gear 5 used for pull test.Reference

Speeds

With 18.4x38 rear tires.Reference
