Tractor · 1993Unverified

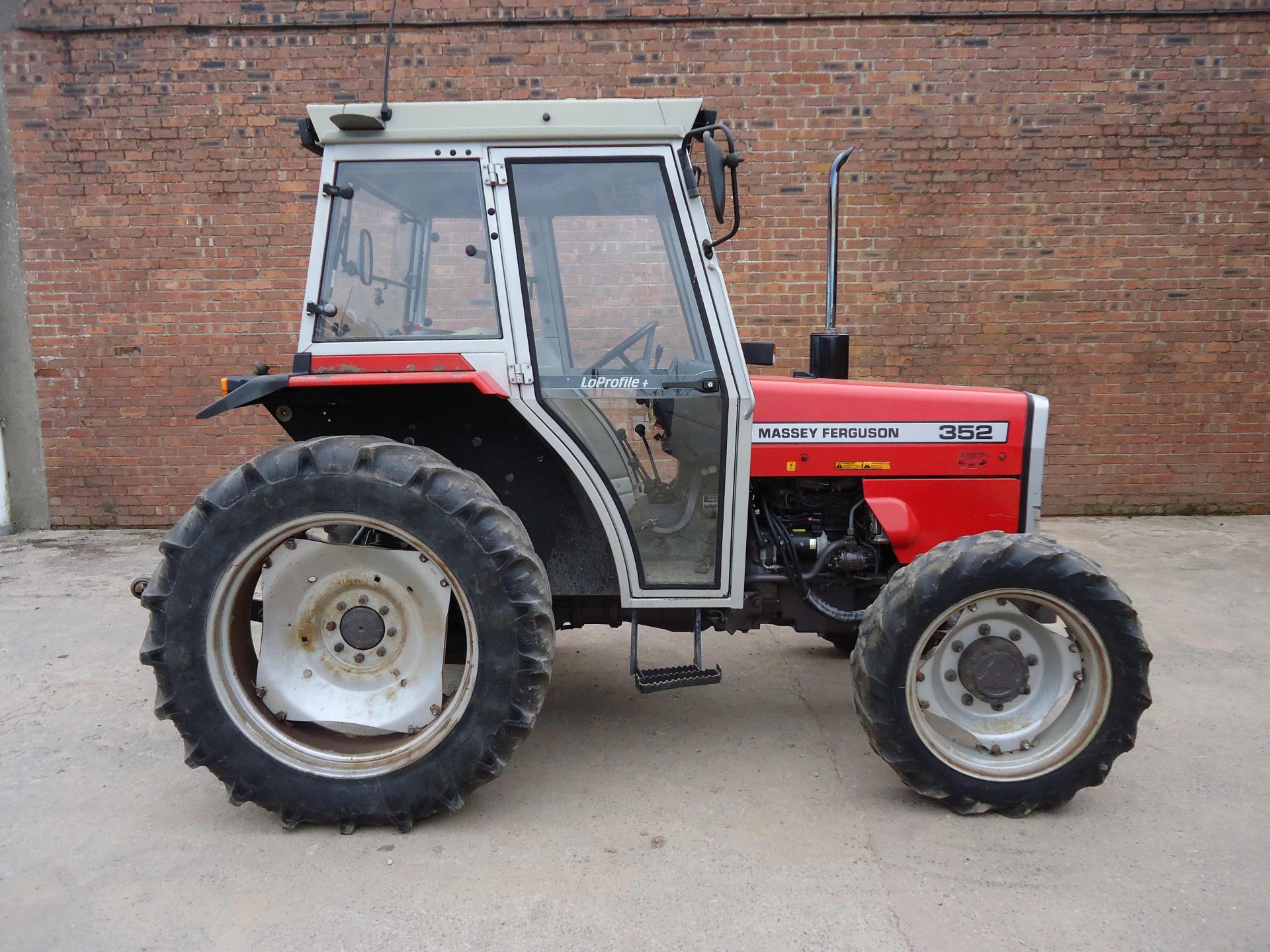

Massey Ferguson 352
Massey Ferguson 352 — 302 Series · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
5512 to 5820 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Low-profile cab standard.Reference
Engine
Perkins 2.5L 3-cyl dieselReference
Fuel tank68.1 LReference
Engine (gross)44.7 kWReference
Engine (net)41.1 kWReference
PerkinsReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power (net)41.1 kWReference
Power (gross)44.7 kWReference
Air cleanerdry elementReference
Rated RPM2250Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
12-speedReference
Gears8 forward and reverseReference
Clutch305mm dry discReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)36.8 kWReference
Total flow57.2 lpmReference
Rear lift0 kgReference
Rear lift (at ends)2145 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
2WD Wheelbase208 cmReference
4WD Wheelbase212 cmReference
Weight5512 to 5820 poundsReference
Front tire7.50-16Reference
2WD Rear tire14.9R28Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 14.9R28Reference
4WD Standard tires (ag)Front: 260/80-20. Rear: 14.9R28Reference
Length348 cmReference
Height (cab)239 cmReference
2WD Weight2500 kgReference
4WD Weight2639 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
