Tractor · 1994Unverified

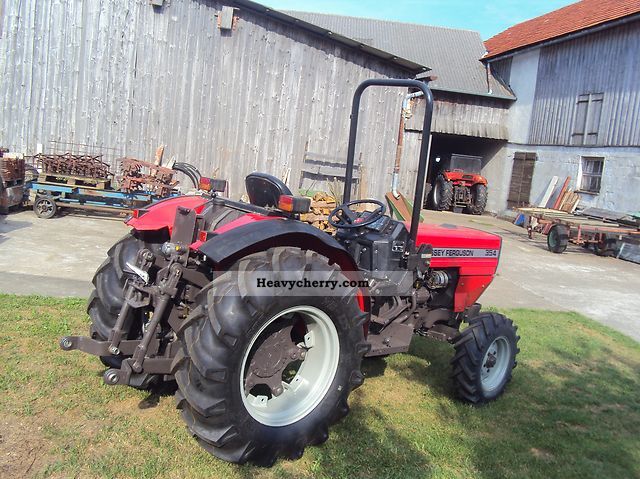

Massey Ferguson 354V

Name: Massey Ferguson 354V
Brand: Massey Ferguson

Massey Ferguson 354V — 304 Specialty Series · 42 hp. Reference specifications; pending source verification.

The Massey Ferguson 354V is a tractor with a rated power of 42 hp, categorising it as a lighter model within its class. Produced between 1994 and 1999, the 354V features a 3-cylinder diesel liquid-cooled engine and four-wheel drive, paired with a 12-speed gearbox. It has a listed operating weight of 2600 kg and is suitable for operations spanning up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

42 hp

Weight

2600 kg

Catalogue coverage

Variants represented

Richest spec table

60 rows

Recorded power

42 hp

Recorded weight

2600 kg

Transmissions

12-speed shuttle

Production years

1994-1999

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Orchard/Vineyard tractorReference

Built in ItalyReference

Original price was $30,000 in 1999Reference

Two- or four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post mid-mount ROPS. Cab available.Reference

Variants

354SnarrowReference

354GElow-profileReference

354Vultra-narrowReference

Engine

Perkins 2.5L 3-cyl dieselReference

Fuel tank53.0 LReference

Perkins AD3.152Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.5 LReference

Bore/Stroke91 x 127 mmReference

Air cleanerdryReference

Rated RPM2250Reference

Starter volts12Reference

Transmission

12-speed shuttleReference

24-speed creeperReference

TypeshuttleReference

Gears12 forward and reverseReference

Clutch279mm dry discReference

TypecreeperReference

Gears24 forward and 12 reverseReference

PTO & Hydraulics

PTO (claimed)31.3 kWReference

Rear valves2 to 5Reference

Front valves3Reference

Pump flow38.2 lpmReference

Pump flow51.9 lpmReference

Rear TypeII/IReference

Rear lift (at ends)2600 kgReference

Rear PTOindependentReference

Rear PTO Type540/750Reference

Rear PTO Type540/1000Reference

Engine RPM540@2000Reference

Dimensions

2WD Wheelbase204 cmReference

4WD Wheelbase189 cmReference

Weight2600 kgReference

Front tire6.00-16Reference

2WD Rear tire13.6-24Reference

2WD Standard tires (ag)Front: 6.00-16. Rear: 13.6-24Reference

4WD Standard tires (ag)Front: 260-70R16. Rear: 13.6R24Reference

Length362 cmReference

Width122 cmReference

2WD Clearance (drawbar)39 cmReference

4WD Clearance (drawbar)34 cmReference

2WD Front tread84 to 121 cmReference

4WD Front tread89 to 117 cmReference

Rear tread87 to 99 cmReference

Steering wheel140 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Massey Ferguson 354V Height

Hood128 cmReference

Cab225 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
