Tractor · 1986Unverified

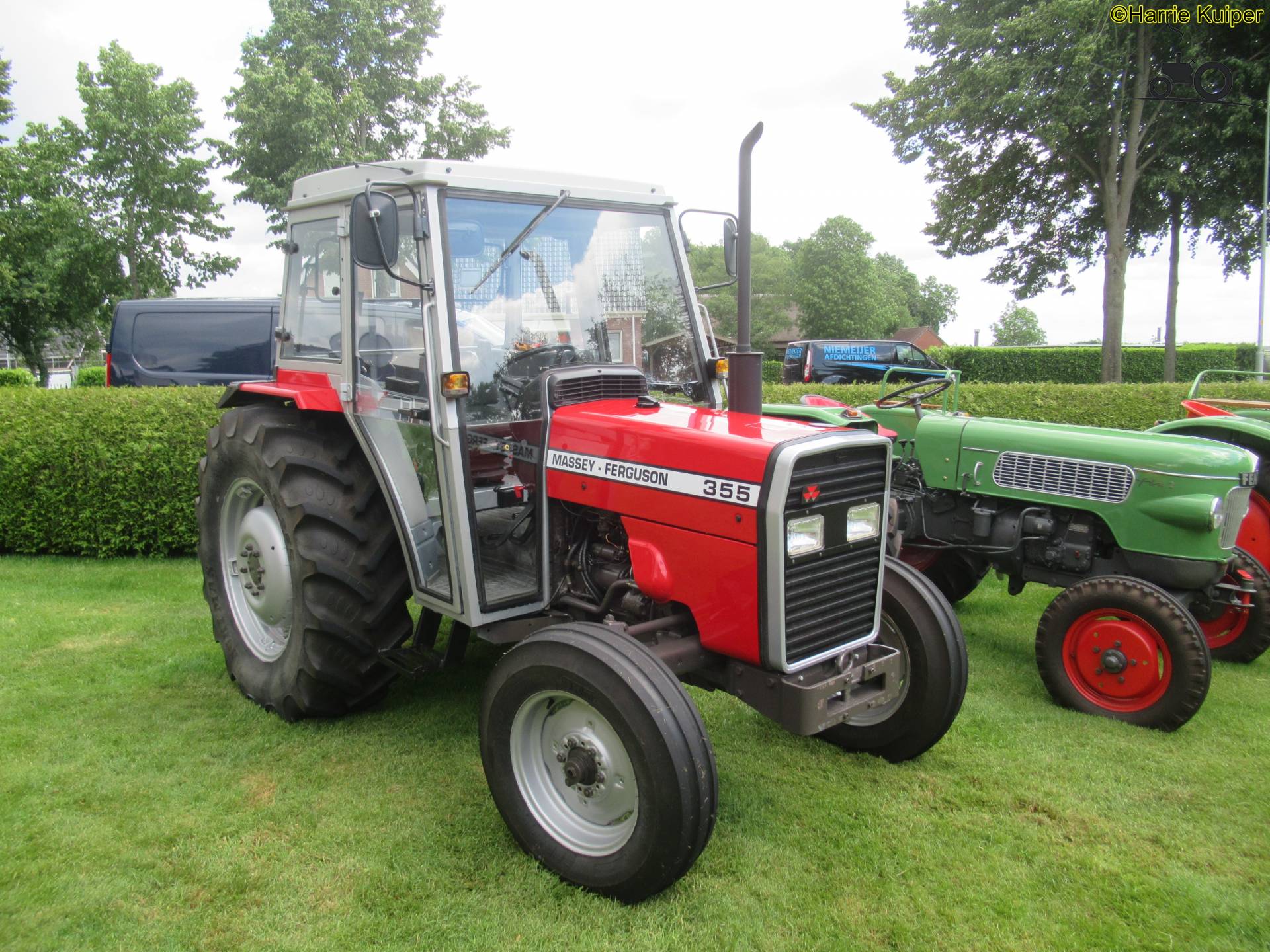

Massey Ferguson 355
Massey Ferguson 355 — 300 Series · 46 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Weight
5827 to 6226 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in Coventry, EnglandReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Two- or four-post ROPS. Cab available.Reference
Engine
Perkins 2.5L 3-cyl dieselReference
Engine38.8 kWReference
Perkins AT3.152.4Reference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power38.8 kWReference
Fuel systemdirect injectionReference
Air cleanerdry elementReference
Compression15.5:1Reference
Rated RPM2250Reference
Idle RPM750-2470Reference
Torque185.8 NmReference
Torque RPM1500Reference
Firing order1-2-3Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity9.8 LReference
Oil capacity6.8 LReference
Oil change250 hReference
Transmission
8-speed synchronizedReference
8-speed mechanical shuttleReference
TypesynchronizedReference
Gears8 forward and 2 reverseReference
Clutch305mm dry discReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
PTO & Hydraulics
PTO (claimed)34.3 kWReference
Hydraulic system47.3 LReference
Typeopen centerReference
Capacity47.3 LReference
Pressure206.8 barReference
Pump flow34.8 lpmReference
Pump flow17.0 lpmReference
Total flow51.9 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift (at ends)2145 kgReference
Rear PTOliveReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1789Reference
Capacities
Fuel68.1 LReference
Dimensions
2WD Wheelbase193 cmReference
4WD Wheelbase213 cmReference
Weight5827 to 6226 poundsReference
Front tire7.50-16Reference
2WD Rear tire12.4-32Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 12.4-32Reference
4WD Standard tires (ag)Front: 8.3-24. Rear: 12.4-32Reference
Length342 cmReference
Width187 cmReference
2WD Operating weight2643 kgReference
4WD Operating weight2824 kgReference
Steering wheel165 cmReference
355 Serial Number Location
Serial number plate on the right side of the tractor, near the brake pedals.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery CCA420Reference
Battery volts12Reference
Massey Ferguson 355 Height
ROPS241 cmReference
Cab236 cmReference
Exhaust236 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
