Tractor · 1987Unverified

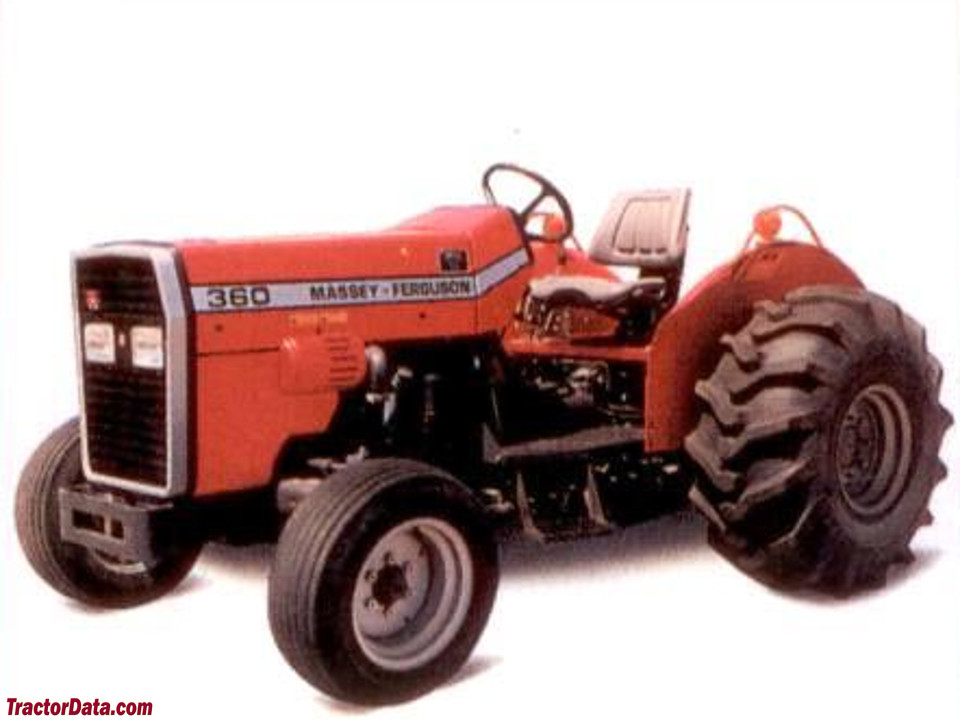

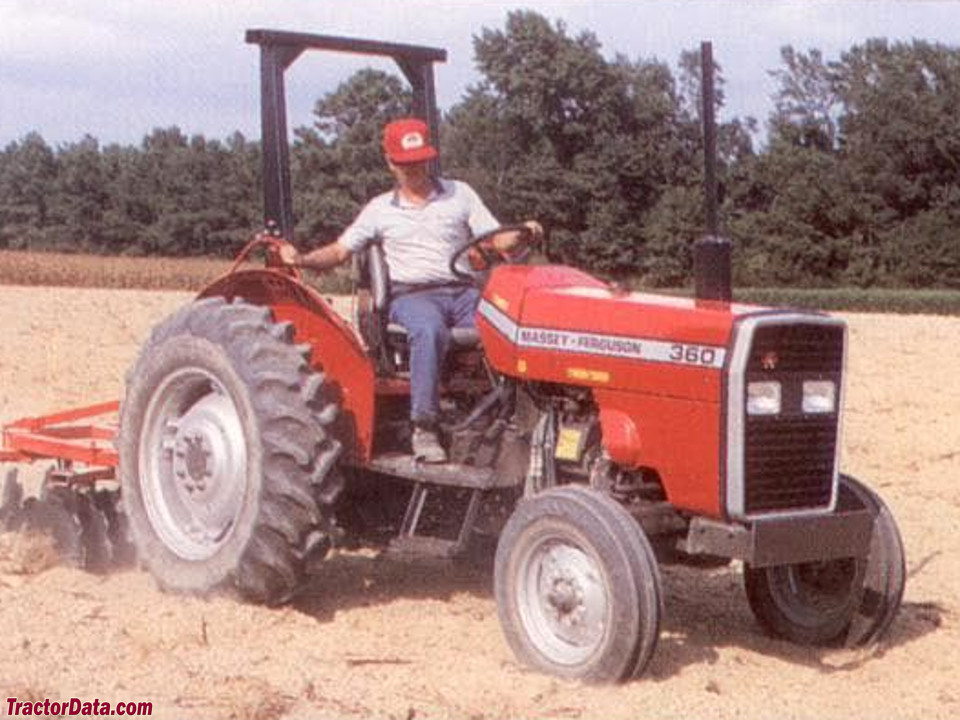

Massey Ferguson 360
Massey Ferguson 360 — Model year 1987-19881989-1991 · 51 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
51 hp
Weight
4910 to 5346 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in Coventry, EnglandReference
Original price was $21,000 in 1992Reference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Power steeringReference
Differential wet disc brakesReference
Two-post ROPS. Canopy optional.Reference
Engine
Perkins 2.5L 3-cyl dieselReference
Engine42.5 kWReference
Perkins AT3.152Reference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power42.5 kWReference
Fuel systemdirect injectionReference
Air cleanerdual dry elementReference
Compression15.5:1Reference
Rated RPM2250Reference
Idle RPM750-2470Reference
Torque202.0 NmReference
Torque RPM1500Reference
Firing order1-2-3Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity9.8 LReference
Oil capacity6.8 LReference
Oil change250 hReference
Transmission
6-speed gearReference
8-speedReference
12-speed synchromeshReference
TypegearReference
Gears6 forward and 2 reverseReference
Gears8 forward and 2 reverseReference
Four gears, plus reverse, in two ranges.Reference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)38.0 kWReference
Hydraulic system43.5 LReference
Typeopen centerReference
Capacity43.5 LReference
Pressure206.8 barReference
Valves1Reference
Pump flow34.8 lpmReference
Pump flow17.0 lpmReference
Total flow51.9 lpmReference
Rear TypeII/IReference
Rear lift1764 kgReference
Rear lift (at ends)2145 kgReference
Rear PTOlive (two-stage clutch)Reference
Rear PTOindependent (optional w/4WD)Reference
Rear PTO Type540 (1.375)Reference
Capacities
Fuel68.1 LReference
Dimensions
2WD Wheelbase193 cmReference
4WD Wheelbase211 cmReference
Weight4910 to 5346 poundsReference
Front tire6.00-16Reference
Rear tire13.6-28 (2WD)Reference
Standard tires (ag)Front: 6.00-16. Rear: 13.6-28 (2WD)Reference
Standard tires (ag)Front: 8.30-24. Rear: 13.6-28 (4WD)Reference
2WD Length334 cmReference
4WD Length358 cmReference
Width187 cmReference
2WD Weight2227 kgReference
4WD Weight2424 kgReference
Ground clearance24 cmReference
Ground clearance26 cmReference
Steering wheel165 cmReference
Massey Ferguson 360 attachments
front-end loaderReference
360 Serial Number Location
Serial number plate on the right side of the tractor, near the brake pedals.Reference
360 Serial Numbers
1986U01001Reference
1987V01001Reference
1988N01001Reference
1989P01001Reference
1990R01001Reference
1991S01001Reference
1992A01001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery CCA420Reference
Battery volts12Reference
Attachment overview
Massey Ferguson 232 loaderReference
Massey Ferguson 236 loaderReference
Massey Ferguson 832 loaderReference
The Massey Ferguson 232 and 236 loaders were specified for the 360 with two-wheel drive. The model 832 loader was specified for the four-wheel drive version of the Massey Ferguson 360.Reference
Massey Ferguson 360 Height
ROPS242 cmReference
Cab235 cmReference
Exhaust236 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
