Tractor · 2007Unverified

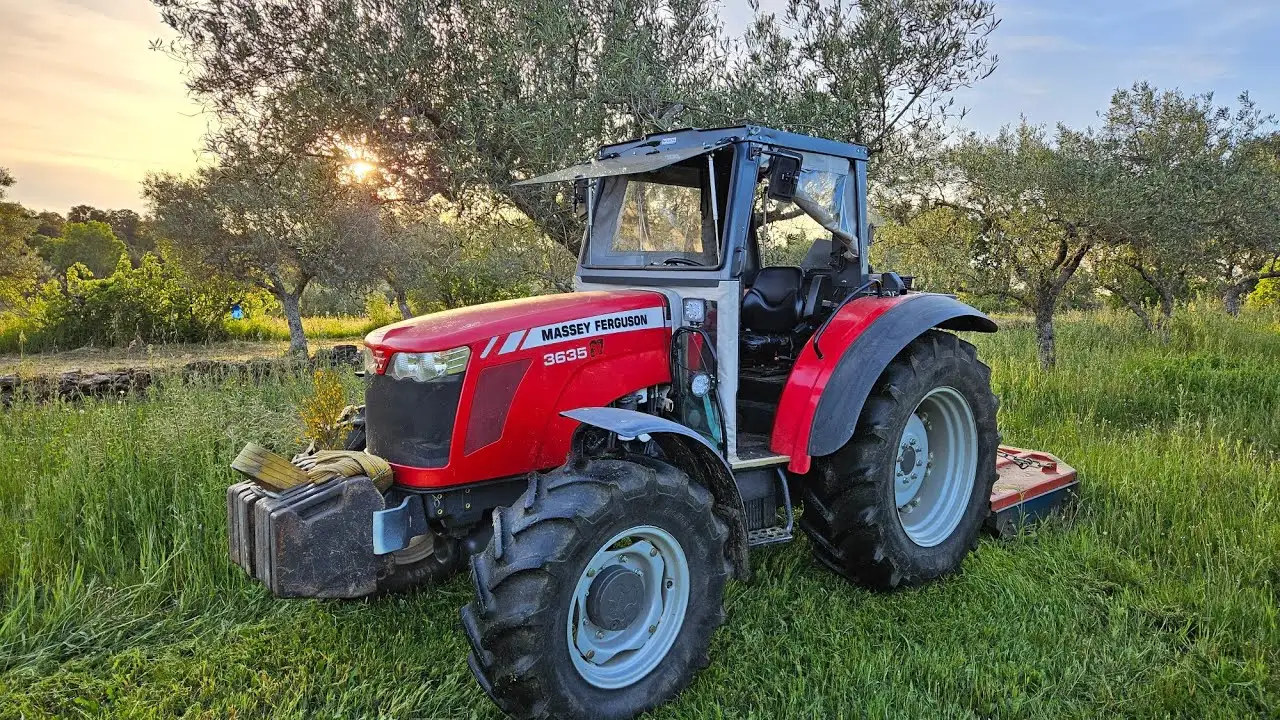

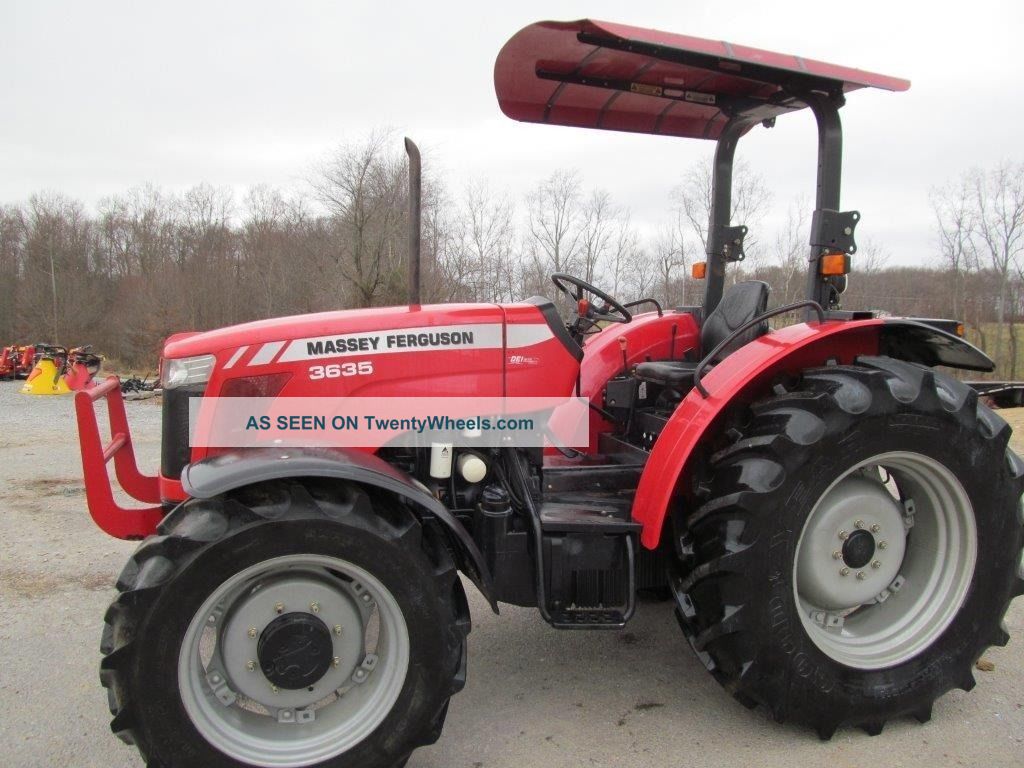

Massey Ferguson 3635

Name: Massey Ferguson 3635
Brand: Massey Ferguson

Massey Ferguson 3635 — Utility tractor · 78 hp. Reference specifications; pending source verification.

The Massey Ferguson 3635 is a tractor model with a rated output of 78 hp, positioning it centrally within its class for power. Production of the 3635 spanned the period from 2007 to 2012. It features a 3-cylinder turbocharged intercooled diesel liquid-cooled engine, which drives a four-wheel drive system via a powershift transmission. The listed weight of the 3635 ranges from 5071 to 7056 pounds, and it is suited to tasks covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

78 hp

Max power

78 hp

Weight

5071 to 7056 pounds

Catalogue coverage

Variants represented

Richest spec table

130 rows

Recorded power

78 hp

Transmissions

8-speed

Production years

2007-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorMassey FergusonReference

ManufacturerAgritaliaReference

Utility tractorReference

Built in Rovigo, ItalyReference

Original price was $28,990 in 2009Reference

Two- or four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockelectro-hydraulic rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post foldable ROPS. Optional cab with heater. Optional air-conditioning.Reference

Variants

3635standard tractorReference

3635 Fflex version, narrowReference

3635 Sspecial version, extra narrowReference

3635 Vvineyard version, ultra-narrowReference

3635 GEground effect version, low profileReference

Engine

AGCO SisuDiesel 3.3L 3-cyl dieselReference

ROPS Fuel tank82.9 LReference

Cab Fuel tank107.9 LReference

Engine (gross)58.2 kWReference

AGCO SisuDiesel 33 DTReference

turbocharged intercooled dieselReference

3-cylinderReference

liquid-cooledReference

Displacement3.3 LReference

Bore/Stroke108 x 120 mmReference

EmissionsTier IIIReference

Power (gross)58.2 kWReference

Air cleanerdual dry elementReference

Pre-heatingintake heaterReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceTier IIIReference

Bore and stroke4.252x4.724 inchesReference

Cooling systemliquid-cooledReference

Transmission

8-speedReference

12-speed synchronized shuttleReference

24-speed power shuttleReference

24-speed synchronized shuttle with partial power shiftReference

TransmissionSynchroShuttleReference

Gears8 forward and reverseReference

TransmissionPowerShuttleReference

Typesynchronized shuttleReference

Gears12 forward and reverseReference

Typepower shuttleReference

Gears24 forward and reverseReference

TransmissionSpeedShiftReference

Typesynchronized shuttle with partial power shiftReference

Transmission TypePower ShuttleReference

Wheel Drive4WDReference

Track Drive typeinboard planetaryReference

Rear Axle Drive Typeinboard planetaryReference

PTO & Hydraulics

PTO (claimed)48.5 kWReference

Typeopen centerReference

Pressure190.0 barReference

Rear valves1 to 3Reference

Mid valves2 (optional)Reference

Pump flow59.8 lpmReference

Total flow84.8 lpmReference

Steering flow25.0 lpmReference

Rear TypeII/IReference

Rear lift (at ends)2500 kgReference

Rear lift (at 24"/610mm)1549 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540Reference

Rear PTO Type540/540E (optional)Reference

Rear PTO Type540/1000 (optional)Reference

Rear PTO Typeground (optional)Reference

Dimensions

Wheelbase208 cmReference

Weight5071 to 7056 poundsReference

Front tire7.50-16Reference

Rear tire16.9R30Reference

Ag front7.50-16 (2WD)Reference

Ag front11.2R24 (4WD)Reference

Ag rear16.9R30Reference

Length375 cmReference

Width193 cmReference

Height (ROPS)251 cmReference

Height (cab)256 cmReference

Clearance (front axle)36 cmReference

2WD Front tread143 to 206 cmReference

4WD Front tread138 to 191 cmReference

Rear tread150 to 190 cmReference

2WD ROPS Shipping2300 kgReference

2WD cab Shipping2800 kgReference

4WD ROPS Shipping2500 kgReference

4WD cab Shipping3200 kgReference

Massey Ferguson 3635 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps80Reference

Battery CCA775Reference

Battery volts12Reference

Total cold cranking amps775 CCAReference

General

Make & ModelMassey FergusonReference

SCV controlJoystickReference

Rollover protective structureTwo-post foldable ROPSReference

Country of manufacturerItalyReference

Capacities

Capacity201 ciReference

Fuel tank107.9 LReference

Power

Max Power78 hpReference

PTO

PTO Power65 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)22.4 gpmReference

Hydraulics Typeopen centerReference

Maximum operating pressure2,756 psiReference

Remote Valves1 to 3 valvesReference

Steering & Implements flow6.6 gpm (15.8 gpm)Reference

Rear Hitch category (SAE designation)Category II/IReference

Rear Hitch maximum lift capacity2,500.2 kgReference

Dimensions & weight

Height Over ROPS251.5 cmReference

Height Over Cab257 cmReference

Overall Length375.9 cmReference

Overall Width193 cmReference

Front axle clearance37 cmReference

Overall weight3,200.5 kgReference

Wheels & tyres

Rear Wheel Type16.9R30Reference

Rear wheel tread range59.2 to 75 inchesReference

Front Wheel Type11.2R24Reference

Front Wheel tread range56.5 to 81.4 inchesReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
