Tractor · 2008Unverified

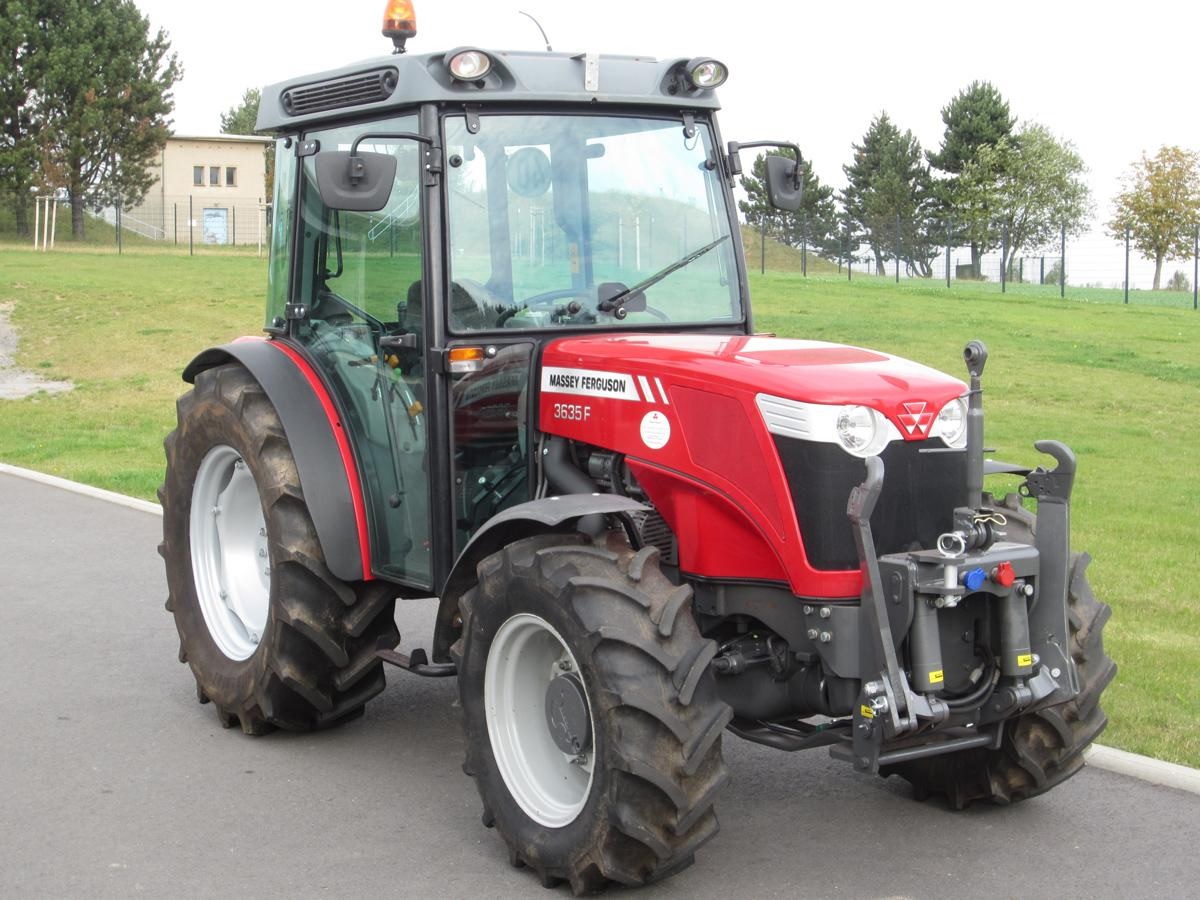

Massey Ferguson 3635 F

Name: Massey Ferguson 3635 F
Brand: Massey Ferguson

Massey Ferguson 3635 F — Agritalia built · 80 hp. Reference specifications; pending source verification.

The Massey Ferguson 3635 F is a tractor model rated at 80 hp, placing it in the middle of its class in terms of power output. Manufactured in 2008, this model features a turbocharged intercooled diesel liquid-cooled engine, which powers the mechanical front-wheel drive via a hydrostatic transmission. The tractor is designed for use on areas of up to 200 acres. Detailed specifications are available for both UK and US units.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

80 hp

Catalogue coverage

Variants represented

Richest spec table

64 rows

Recorded power

80 hp

Transmissions

12-speed synchronized shuttle

Production years

2008-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorMassey FergusonReference

ManufacturerAgritaliaReference

Built in Rovigo, ItalyReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Variants

3635standard tractorReference

3635 Fflex version, narrowReference

3635 Sspecial version, extra narrowReference

3635 Vvineyard version, ultra-narrowReference

3635 GEground effect version, low profileReference

Engine

AGCO SisuDiesel 3.3L dieselReference

Fuel tank70.0 LReference

Engine59.7 kWReference

AGCO SisuDiesel 33DTAReference

turbocharged intercooled dieselReference

liquid-cooledReference

Displacement3.3 LReference

EmissionsTier 3Reference

Power59.7 kWReference

Air cleanerdual dry elementReference

Rated RPM2,200Reference

Starter typeelectricReference

Transmission

12-speed synchronized shuttleReference

24-speed synchronized shuttleReference

24-speed power shuttleReference

24-speed synchronized shuttle with partial power shiftReference

Typesynchronized shuttleReference

Gears12 forward and reverseReference

Gears24 forward and reverseReference

TransmissionPowerShuttleReference

Typepower shuttleReference

TransmissionSpeedShiftReference

Typesynchronized shuttle with partial power shiftReference

PTO & Hydraulics

Pressure190.0 barReference

Rear valves2 to 3Reference

Mid valves2 (optional)Reference

Front valves2 or 4 (optional)Reference

Pump flow48.1 lpmReference

Pump flow62.1 lpmReference

Rear TypeII/IReference

Rear lift (at ends)2500 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Rear PTO Type540/540E (optional)Reference

Rear PTO Type540/1000 (optional)Reference

Rear PTO Typeground (optional)Reference

Dimensions

Wheelbase215 cmReference

Front tire6.50-16Reference

Rear tire12.4R28Reference

Ag front6.50-16 (2WD)Reference

Ag front7.5R20 (4WD)Reference

Ag rear12.4R28 (2WD)Reference

Ag rear13.6R28 (4WD)Reference

Length398 cmReference

Width145 cmReference

Height (cab)230 cmReference

Clearance (front axle)35 cmReference

Front tread99 to 0 cmReference

Front tread159 to 0 cmReference

Front tread124 to 138 cmReference

Rear tread124 to 164 cmReference

Rear tread122 to 162 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
